Product Description

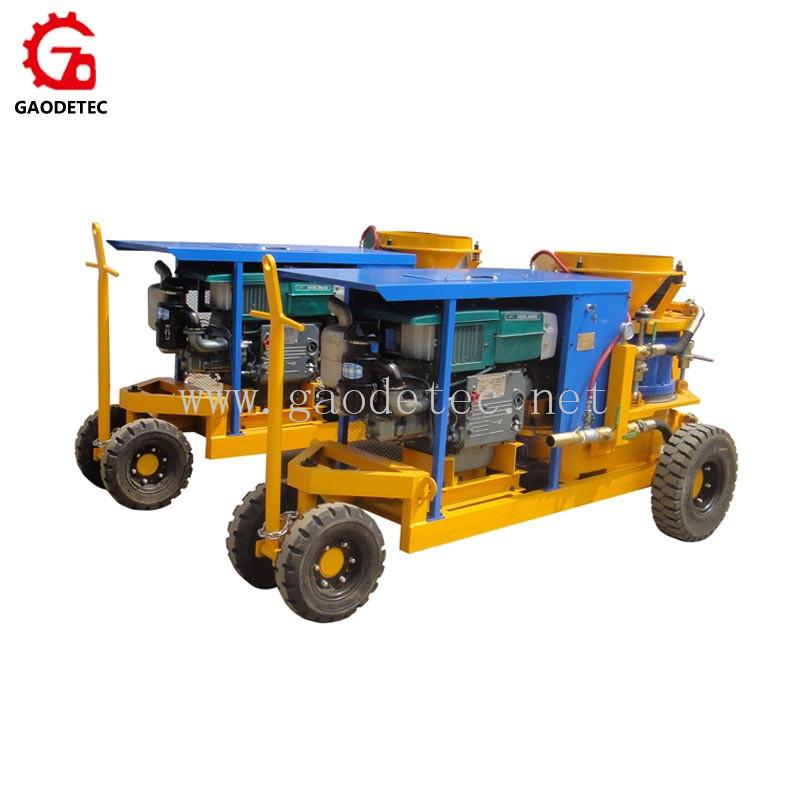

9m3/h diesel shotcrete concrete spraying machine for sale

GZ-9  diesel dry type shotcrete machine is large-sized shotcrete machine for the spraying process.

GZ-9  can be used for large-section tunnel building, mine, etc

GZ-9 dry type shotcrete machine is available in following versions:

Basic: electric drive can be combined with tyre chassis

Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel

Product Parameter:

Output Capacity	6-9m3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:4~5
Max. Aggregate Size	Dia.20 mm
Conveying Hose Inner Diameter	Dia.64 mm
Conveying Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	10~12m3/min(357-430CFM)
Material Charging Height	1.1m
Rotor Speed	7.5-11r/min
Diesel Engine	20hp,2200rpm, Radiator Cooling
Diesel Engine Starting	Electric start
Clutch Type in Diesel Engine	Automatic Clutch
Air Vibrator	OR100,Oli
Overall Dimension(length×width×height)	2.66×1.11×1.50m
Net Weight	950kg



The GZ-9D shotcrete gunning machine is widely used in:

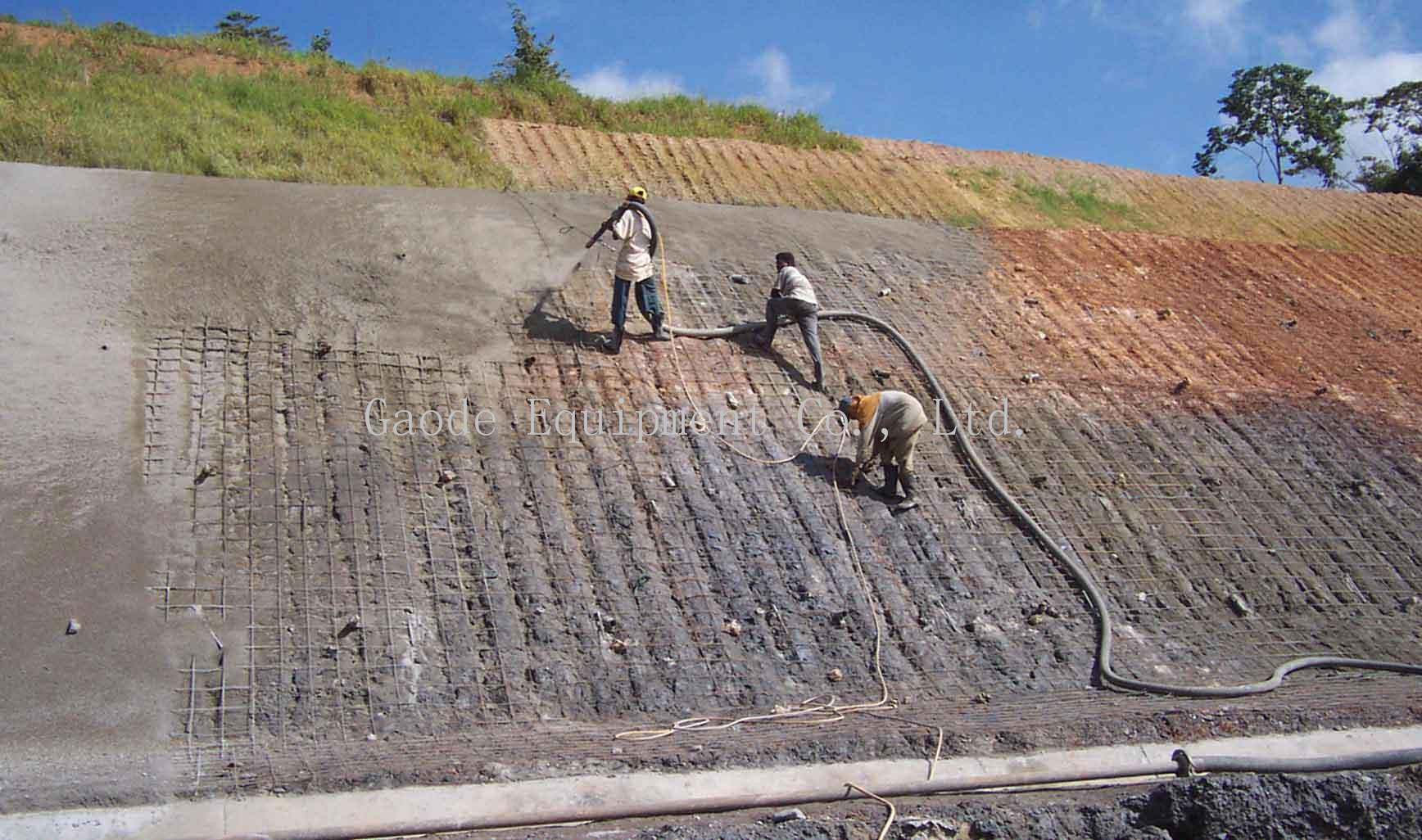

• Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect
• Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface





• In order to recommend you more suitable models shotcrete machine, please let us know clearly about your requirements:

• What's the project you will use the machine do, for slope protect, or other?

• Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?

• What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, or other?

• What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?

• About the engine, do you need air motor, electric motor or diesel engine, if you like the electric motor, voltage 3 phase, 380 V, 50 HZ is ok for you?

Payment Terms︰ TT / LC / DP / DA

Packing︰ Wooden packing

Lead Time︰ 12-15days

Standards Certificate︰ ISO CE

Product Image
