New Design gunite equipment for refractory spraying

  • New Design gunite equipment for refractory spraying
  • Shotcrete equipment
  • refractory gunite machine
  • refractory gunite machine
  • refractory gunite machine
  • refractory gunite machine
  • refractory gunite machine
  • refractory gunite machine
  • refractory gunite machine
  • refractory gunite machine
  • refractory gunite machine
  • refractory gunite machine
Model No.︰GZ-3ER
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 5500 / set
Minimum Order︰1 set
Share on:

 Total 14 Related Items
Prev1011121314Next

Product Description

New Design gunite equipment for refractory spraying

Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

Product description:

GZ-3ER is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application.With this GZ-3ER, you can get low dust and high performance spraying flow in nozzle.

Model

GZ-3ER

Rate Output

1-3m3/h(2-6 tons/h)

Max.conveying Distance

200m

Motor Power

4kw

Max.Aggregate Size

10mm

Conveying Hose ID

32/38mm

Air Consumption

5-6m3/min

Operating Air Pressure

0.2-0.4MPa

Rotor Speed

0-13.2r/min

Weight

500kg

Overall Dimension

1.35*0.7*1.3m

GZ-3 series refractory spraying machine has the following features:

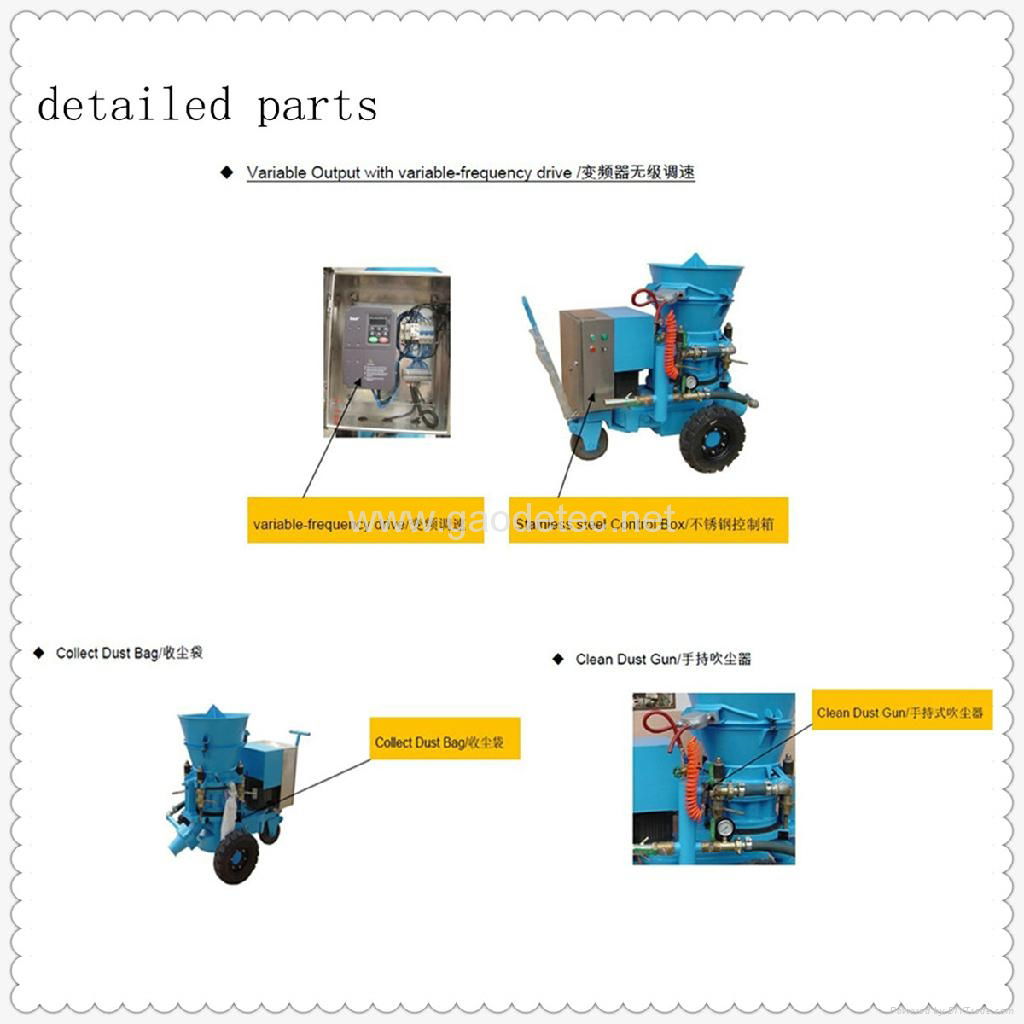

1. Variable Output with ABB variable-frequency drive

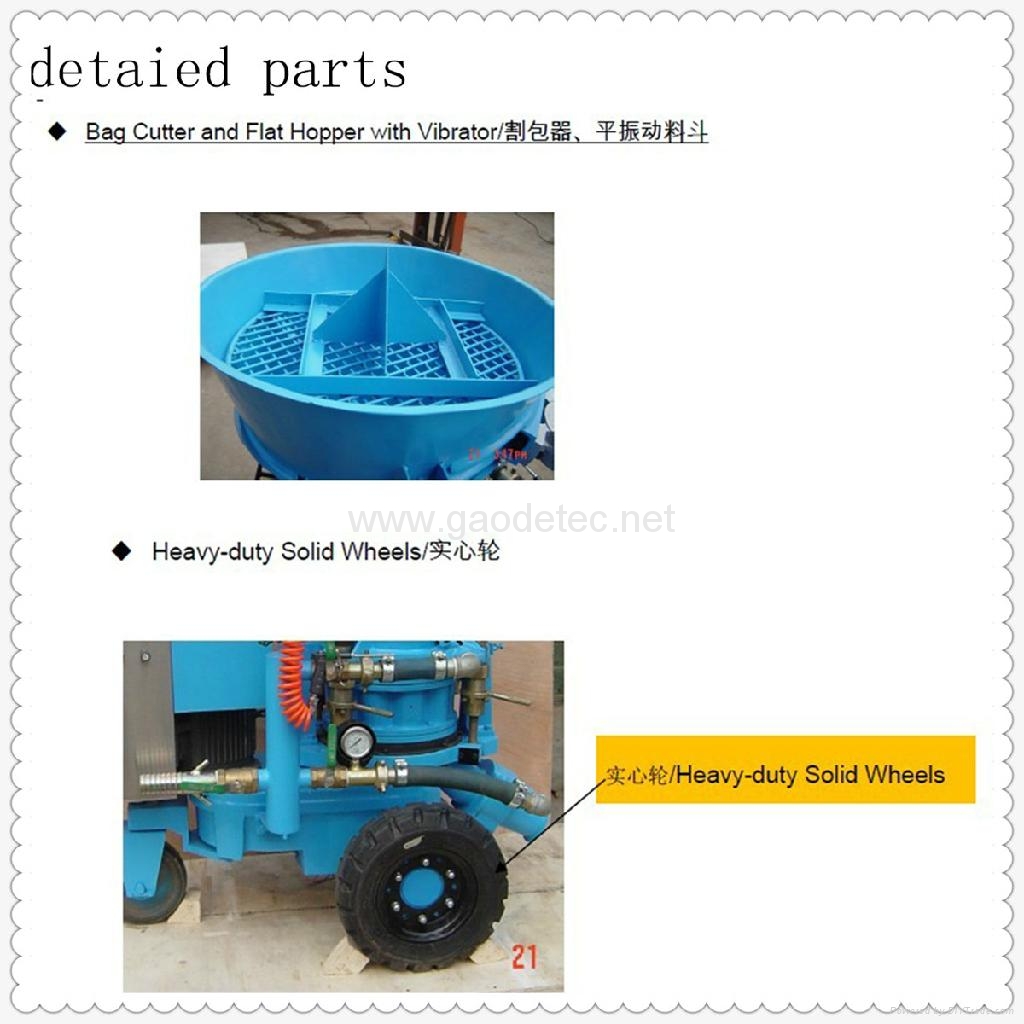

2. Bag cutter and flat hopper with vibrator

3. Collect dust bag

4. Clean dust gun

5. Heavy-duty solid wheels

6. Coupling and clamp

7. light weight nozzle

8. Blast rubber hose

Pre-sale and after-sales service:

1. Video technical support
2. Online support
3. Field installation.commissioning and training
4. Field maintenance and repair service

Contact supplier:

Many thanks for visiting our web, we can supply refractory shotcrete machine for you. Before we send quotation, please let me know the following question:


1. What's the project you will use the machine do ?
2. What is the output do you need, 3m3/h, 5m3/h ?
3. Drive type mode? Do you want electric or air motor ?
4. Do you have any other special requirments for this machine ?


We can customize according to your requirements, just tell us the application of the product or the parameter information you need.

FAQ:

1.Q: Are you a manufacturer or a trade company?
A: We are a manufacturer, and we have our own foreign trade department, we market our own products.



2.Q: How long is your product warranty ?
A: 12 months is available from the date of shipment.


3.Q: I plan to put our label to your product ,is it possible ?
A: Of course, it is ok. OEM and ODM is available for us, please send your logo, brand name and other info to us , then we’ll produce them per your requires.


4.Q: How can you ensure your product quality?
A: We have our professional testing department, after finishing the machine,we’ll test the machine for twice before shipment


5.Q: Payment?
A: We will confirm the payment with you when quoting, like FOB, CIF or others. we accept 30% deposit, and shipping after paying the balance . T/T is the main payment, and L/C is acceptable as well.

Payment Terms︰TT, LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customised.
Lead Time︰in stock or 7 working days after get payment
Standards Certificate︰CE ISO
Product Image


Shotcrete equipment
Shotcrete equipment

refractory gunite machine
refractory gunite machine

refractory gunite machine
refractory gunite machine

refractory gunite machine
refractory gunite machine

refractory gunite machine
refractory gunite machine

refractory gunite machine
refractory gunite machine

refractory gunite machine
refractory gunite machine

refractory gunite machine
refractory gunite machine

refractory gunite machine
refractory gunite machine

refractory gunite machine
refractory gunite machine

refractory gunite machine
refractory gunite machine
