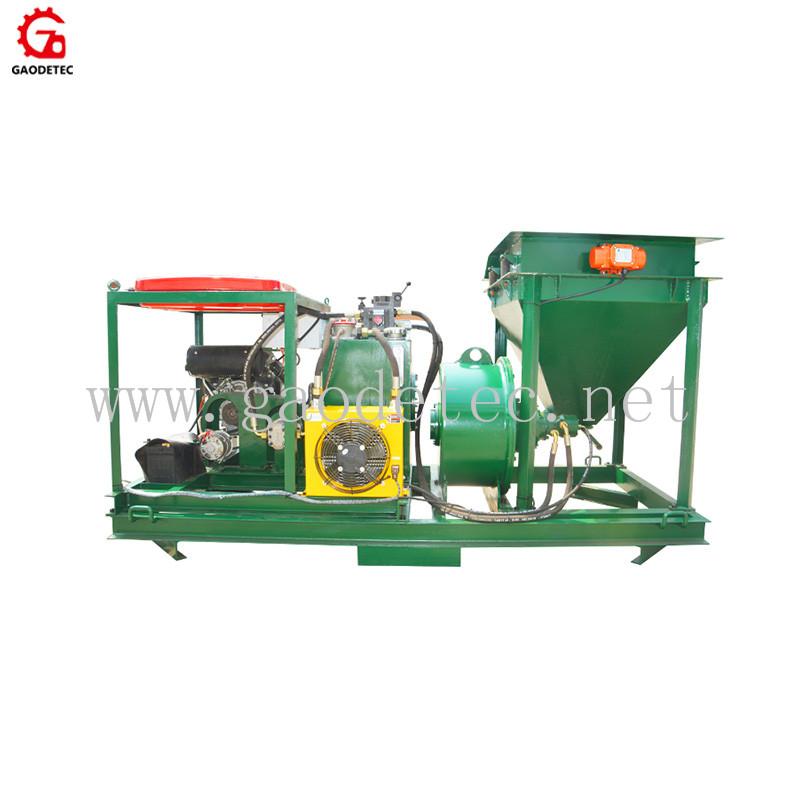

Monolithic Dome Wet Shotcrete Pump

  • Monolithic Dome Wet Shotcrete Pump
  • difference angles of GDS1500 wet shotcrete pump
  • Main spare parts of wet shotcrete pump
  • Main accessories parts of GDS1500 wet shotcrete pump
  • Spraying wet concrete for different projects
Model No.︰GDS1500G
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 7190 / set
Minimum Order︰1 set
Share on:

 Total 22 Related Items
Prev1819202122Next

Product Description

 Monolithic Dome Wet  Shotcrete Pump

Wet Shotcrete Pump Description

The GDS1500G is a gasoline-powered light weight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. The BDS1500G Direct Drive uses a Honda GX390 power pack, is skid mounted.

Wet Shotcrete Pump Feature

·   highreliable direct drive planetary gearbox

·   infinite speed variation

·   Easily operating on site work

·   Standard spare part supply

Wet Shotcrete Pump Technical Specification

Item

Description

Pressure

1.5 Mpa

Output

1.5-3m3/h

Max. Aggregate

8mm

The Squeeze Hose

ID 50mm

Conveying Hose

ID 38mm

Squeeze pump

GH50-455

Power

Honda GX390 Gasoline engine

Overall Dimension

1900x850x1250mm

Hopper volume:

200 Liter

Oil tank

120 Liter

Weight

610kg

Requested air compressor

3m3/min, 0.5Mpa Pressure








































Note: the Diesel engine or Electric motor is optional.

A Complete set of GDS1500G wet shotcrete pump

No.

Description

Qty.

Unit

Remarks

1

GDS1500main machine

1

set



2

conveying hose, ID38, L10m

1

pcs



3

Conveying hose, ID50, L10m

1

pcs



3

reducer 2’’/1.5’’

1

pcs



5

1.5’’shotcrete nozzle assy.

1

set



6

1.5’’nozzle tip

1

pcs



7

clamp

2

sets

One set (one 1.5’’, one 2’’)

8

clean ball

2

sets

One set (one 1.5’’,  one 2’’)

9

accessories

1

Set



Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customised.
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

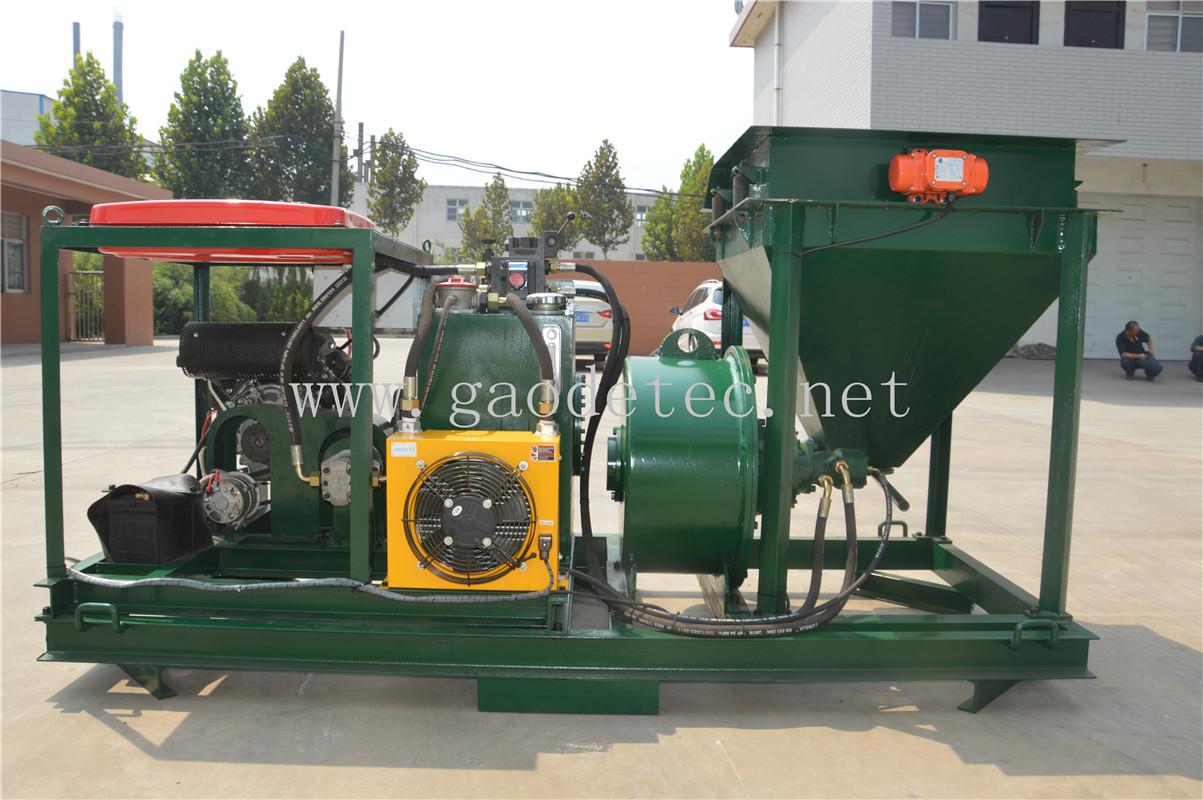

difference angles of GDS1500 wet shotcrete pump
difference angles of GDS1500 wet shotcrete pump

Main spare parts of wet shotcrete pump
Main spare parts of wet shotcrete pump

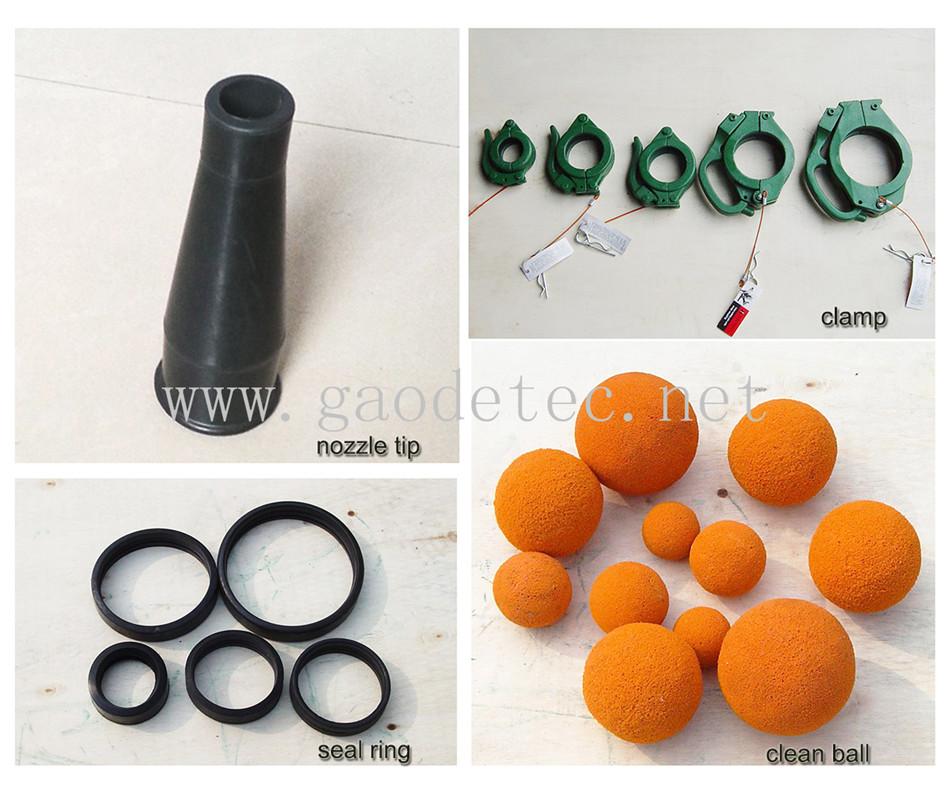

Main accessories parts of GDS1500 wet shotcrete pump
Main accessories parts of GDS1500 wet shotcrete pump

Spraying wet concrete for different projects
Spraying wet concrete for different projects
