Portable Wet-mix Shotcrete Sprayer

  • Portable Wet-mix Shotcrete Sprayer
  • Portable Wet-mix Shotcrete Sprayer
  • Portable Wet-mix Shotcrete Sprayer
  • Portable Wet-mix Shotcrete Sprayer
  • Portable Wet-mix Shotcrete Sprayer
Model No.︰GDS1500G
Brand Name︰GEC
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 6 Related Items
Prev12345Next

Product Description

Portable Wet-mix Shotcrete Sprayer

Description

The GDS1500G is a gasoline-powered light weight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. The GDS1500G Direct Drive uses a Honda GX390 power pack, is skid mounted.

Feature

·   highreliable direct drive planetary gearbox

·   infinite speed variation

·   Easily operating on site work

·   Standard spare part supply

Technical specification

Item Description
Pressure 1.5 Mpa
Output 1.5-3m3/h
Max. Aggregate 8mm
The Squeeze Hose ID 50mm
Conveying Hose ID 38mm
Squeeze pump LH50-455
Power Honda GX390 Gasoline engine
Overall Dimension 1900x850x1250mm
Hopper volume: 200 Liter
Oil tank 120 Liter
Weight 610kg
Requested air compressor 3m3/min, 0.5Mpa Pressure
Note: the Diesel engine or Electric motor is optional.

A Complete set of GDS1500G shotcrete pump

No.

Description

Qty.

Unit

Remarks

1

BDS1500G main machine

1

set



2

pump squeeze tube

1

pcs



3

conveying hose, ID38, L10m

2

pcs



4

reducer 2'/1.5'

1

pcs



5

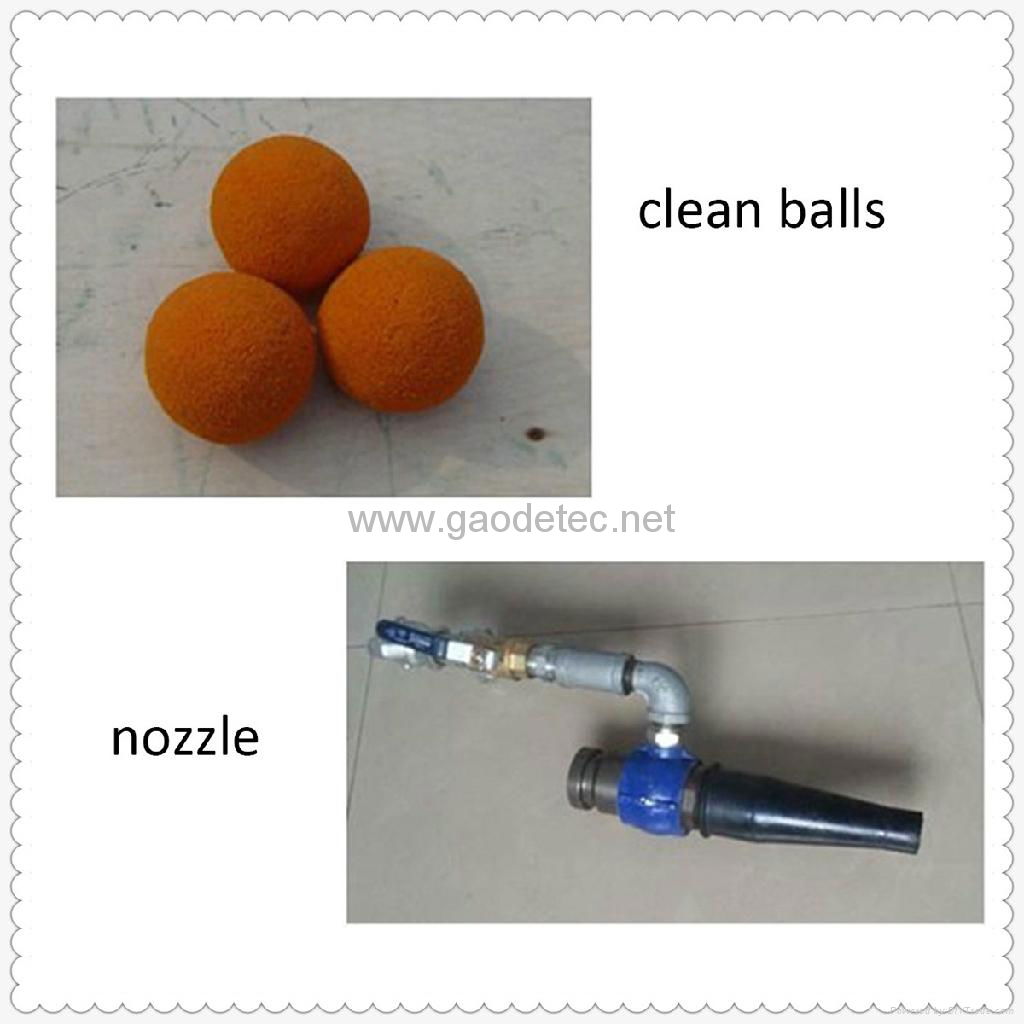

shotcrete nozzle assy.

1

set



6

nozzle tip

1

pcs



7

air filter

1

pcs



8

clamp

1

pcs



9

clean ball

3

pcs



10

accessories

1

set



Payment Terms︰TT/LC
