GMP40/10-H Plastering Pump

GMP40/10-H Plastering Pump
  • GMP40/10-H Plastering Pump
  • GMP40/10-H Plastering Pump
  • GMP40/10-H Plastering Pump
  • GMP40/10-H Plastering Pump
  • GMP40/10-H Plastering Pump
Model No.︰GMP40/10-H
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 5100 / set
Minimum Order︰1 set
Share on:

 Total 12 Related Items
Prev7891011Next

Product Description

 GMP40/10-H Plastering Pump

Specification: this pump is designed as the combination of GH38-430 hose pump (peristaltic type), mini air compressor and frequency converter.

GH38-430 HEAVY-DUTY HOSE PUMP TECHINCAL DATA

Item

Description

Remarks

Rotor Dia.(D)

430mm



Hose ID

38mm/1.5inch



Rotor Rev.

15-33rpm



Rated Output/Flow

18-40L/min



Rated pressure

10 bar



Motor Power

3 KW /4hp, 3 phase, 380v, 50 Hz,IP55

*

Suck lift

5 meter



Hose material

NR(Natural Rubber)



Overall Dimension

1600x800x1060mm



Weight

440kg



Note:1,the gearbox is heavy -duty Helical-bevel gear                                                                             2,*WEG or China domestic electric motor



Mini Air Compressor

Rated output

300L/min

Rated pressure

7 bar



Frequency Converter

The basic version is one made in China, if you need Siemens, SEW or ABB, please check it from us.



Gearbox

Rigid tooth flank helical gear



Nozzle

Specially design to get continuous spaying flow



Payment Terms︰TT/LC
Packing︰Standard export wooden case.
Lead Time︰Within 15 working days after receiving payment.
Standards Certificate︰ISO, CE
Product Image

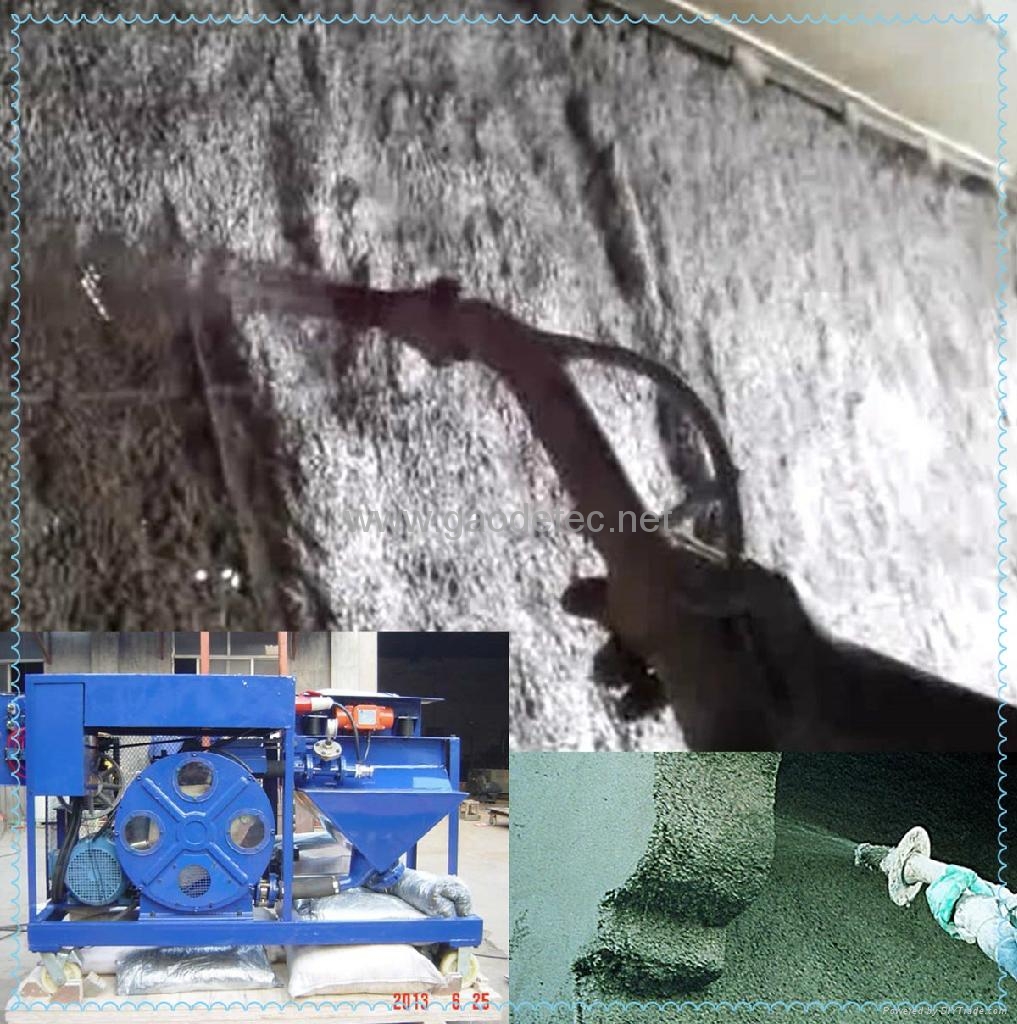

GMP40/10-H Plastering Pump
GMP40/10-H Plastering Pump
