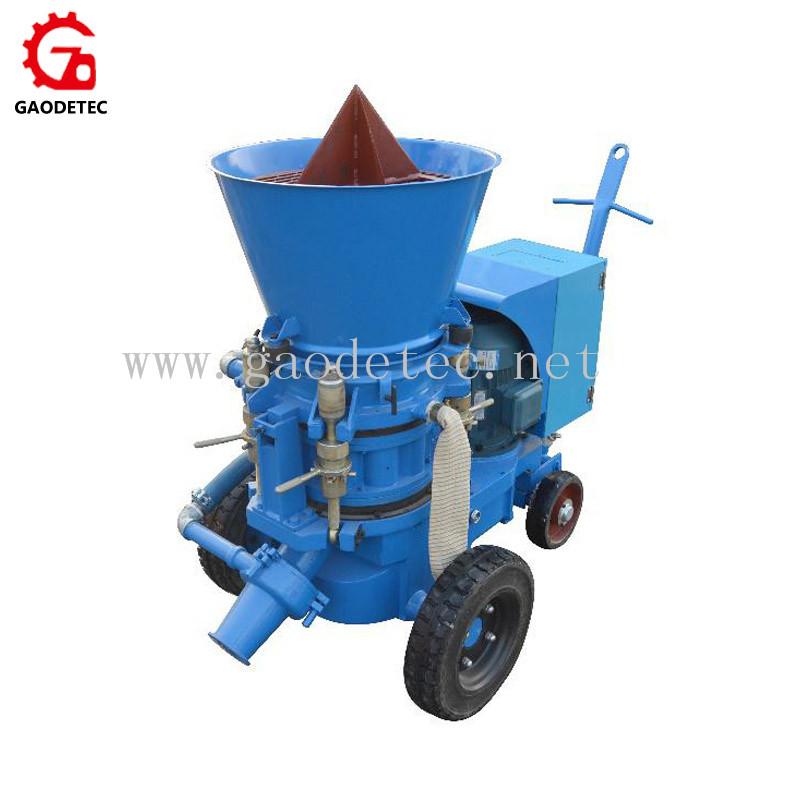

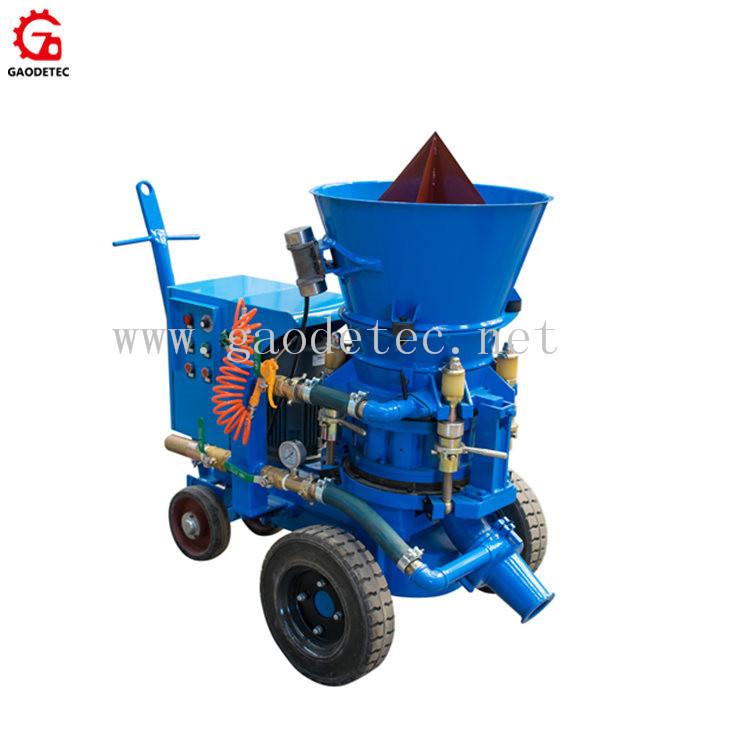

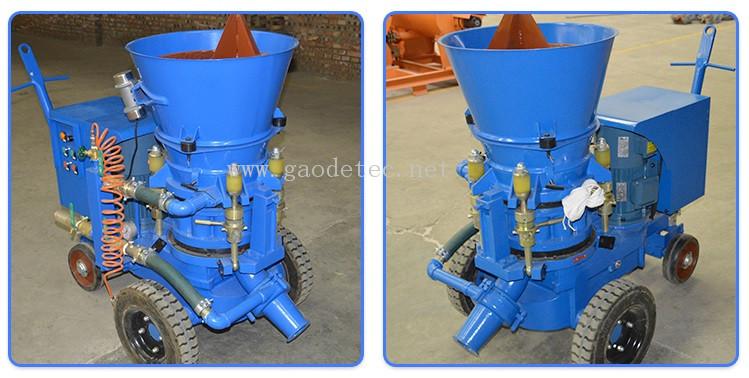

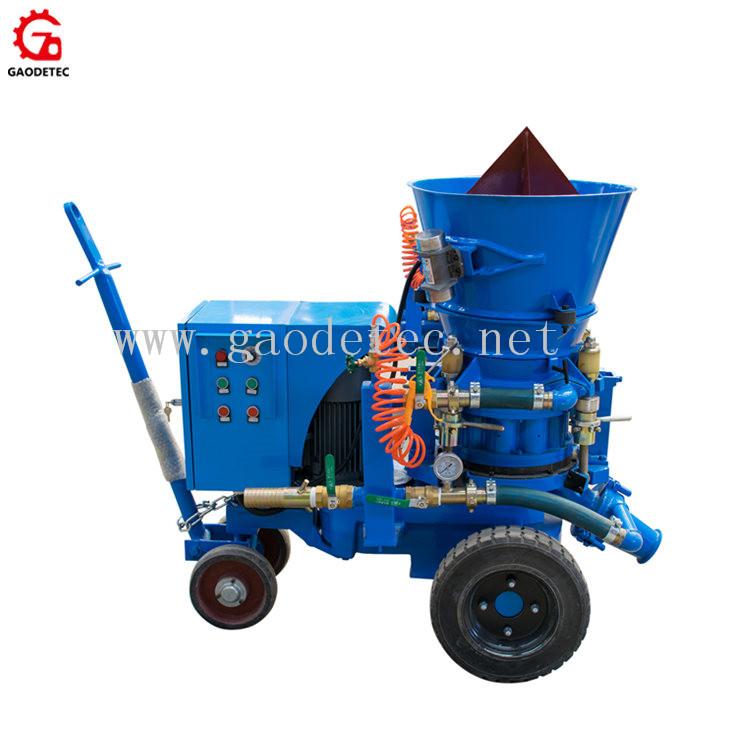

GZ-3ER Refractory Gunning Machine for sale

refractory gunite
  • refractory gunite
  • refractory gunning
  • refractory shotcrete
  • refractory shotcrete
  • refractory shotcrete application
  • detailed parts and spare part of refractory gunning machine
  • refractory gunning
  • refractory shotcrete
  • refractory shotcrete
  • refractory shotcrete
  • refractory gunite
Model No.︰GZ-3ER
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 5500 / set
Minimum Order︰1 set
Share on:

 Total 14 Related Items
Prev910111213Next

Product Description

GZ-3ER Refractory Gunning Machine for Sale

Description:

GZ-3ER refractory gunning machine is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application.

With this GZ-3ER, you can get low dust and high performance spraying flow in nozzle.

Please copy the link to the product website for more products and information

Our websitewww.gaodetec.net

Application:

1. Gunite Swimming Pool Construction

2. Soil Retention and Retaining Walls

3. Rocks aping

4. Refractory Spraying

5. Mine Support

6. Tunnel Linings

7. Concrete Repair

8. Artificial Rocks and Caves

9. Low-volume Refractory Spraying



Features:

1. Variable output with ABB variable-frequency drive.

2. Bag cutter and flat hopper with vibrator.

3. Collect dust bag.

4. Clean dust gun.

5. Heavy-duty solid wheels.

6. Coulping and clamp.

7. Light weight nozzle.

8. Blast rubber hose.



Advantages:

1. High quality, reliable performance .

2. Good seal performance, little dust.

3. Reasonable design, convenient to move

4. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

5. Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

6. We make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.

7. Widely used in mining, tunnel, culvert, revetment, etc



 Technical Data:

Specification (with Electric motor drive):

Rated Output

1-3m3 /h

Max. Horizontal Conveying Distance

100m

Max. Aggregate Size

Φ10 mm

Conveying Hose Inner Diameter

38mm

Operating air Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

5~6m3/min(180-215CFM

Motor Power

4kW

Voltage

3 phase,380V,50Hz

Material Charging Height

1.1m

Rotor Speed

13.2r/min

Overall Dimension(L×W×H)

1.13×0.54×1.1m

Weight

430kg



A complete set of GZ-3ER refractory spray machine:

No.

Description

Quantity

Unit

Remarks

1

GZ-3 Main Machine

1

set



2

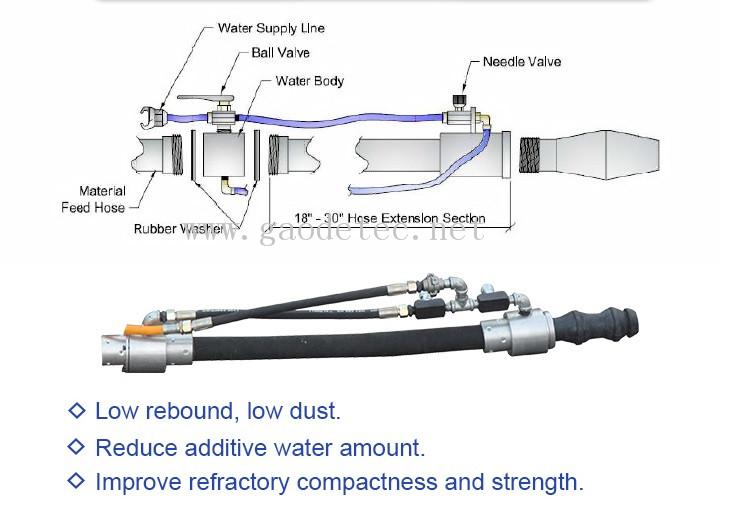

Nozzle Assy.

1

set



3

Conveying Hose, ID38mm, 50ft.Length

1

piece



4

Water hose with hose hoop

1

piece



5

Rubber Hose Joint(long)

1

piece

Fitting

6

Rubber Hose Joint(short)

2

piece

Fitting

7

Quick Coupling

3

piece



8

Upper Sealing Plate

1

piece



9

Lower Sealing Plate

1

piece



































Related Products: refractory mixer:

GRM refractory mixer is used to mix raw materials. Material obtained in the pan blender full mixing, thereby enhancing the mixing uniformity. using novel rotor structure, so that the minimum gap between the rotor and the housing can be adjusted to be close to zero, effectively reducing the amount of residual material.

Pan plate lined with polypropylene or stainless steel, and therefore not easy to stick material, wear resistance, the use of cycloid motor with a compact, easy to operate, stir, convenient discharge conveyor and so on. The overall structure is more reasonable, beautiful appearance, easy operation and maintenance.



Specifications:

Item

GRM100

GRM250

GRM500

Mixing capacity

100kg

250kg

500kg

Rotating speed

35rpm

36rpm

39rpm

Motor Power

4kw

5.5kw

7.5kw

Feeding Height

1090mm

1120mm

1200mm

Dimensions (mm)

810x810x1090

1020x1020x1120

1250x1250x1300

Weight

420kg

560kg

890kg

Note:Technical data may change due to technical progress,subject to modification without notice.



Contact Supplier:

Many thanks for visiting our web, we can supply refractory shotcrete machine for you. Before we send quotation, please let me know the following question:


1. What's the project you will use the machine do ?
2. What is the output do you need, 3m3/h, 5m3/h ?
3. Drive type mode? Do you want electric or air motor ?
4. Do you have any other special requirments for this machine ?


We can customize according to your requirements, just tell us the application of the product or the parameter information you need.

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customised
Lead Time︰in stock. common type7 working days after confirm
Standards Certificate︰CE ISO
