High Efficiency GSZ3000A Wet and Dry Mix Gunite Equipment

  • High Efficiency GSZ3000A Wet and Dry Mix Gunite Equipment
  • High Efficiency GSZ3000A Wet and Dry Mix Gunite Equipment
  • High Efficiency GSZ3000A Wet and Dry Mix Gunite Equipment
  • High Efficiency GSZ3000A Wet and Dry Mix Gunite Equipment
  • High Efficiency GSZ3000A Wet and Dry Mix Gunite Equipment
Model No.︰GSZ3000A
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 9960 / set
Minimum Order︰1 set
Share on:

 Total 22 Related Items
Prev1516171819Next

Product Description

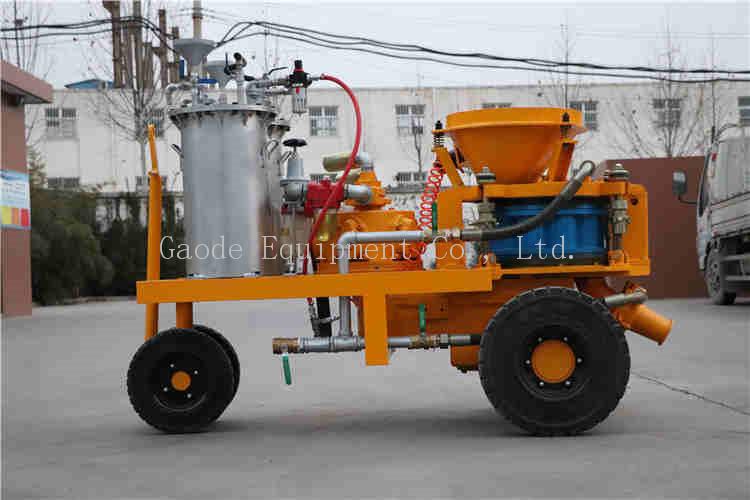

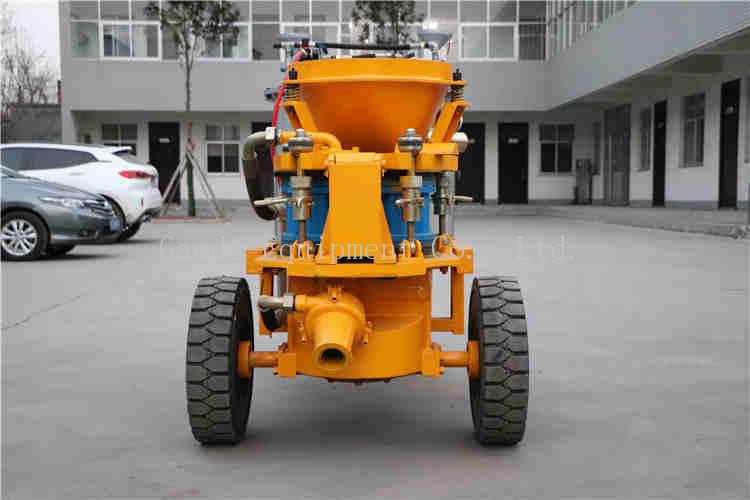

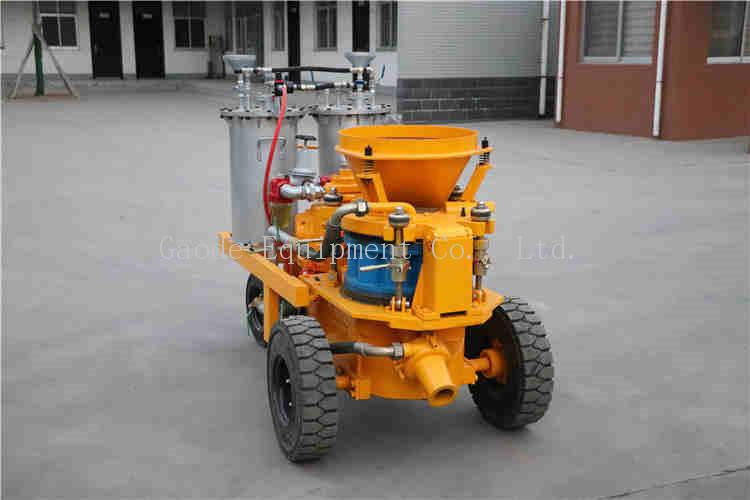

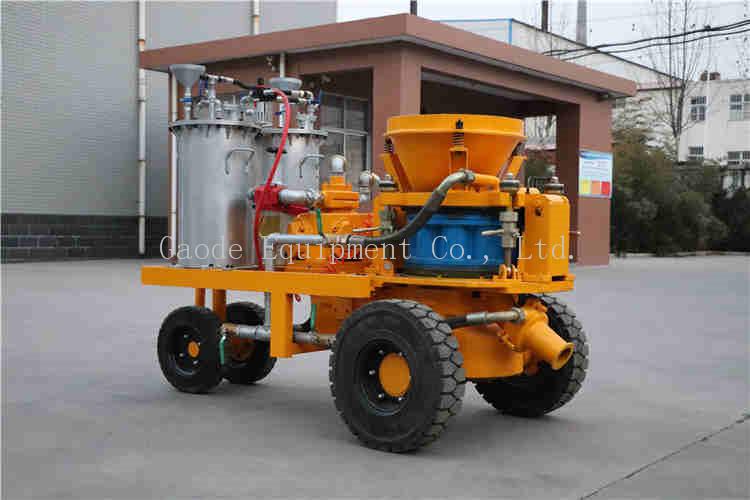

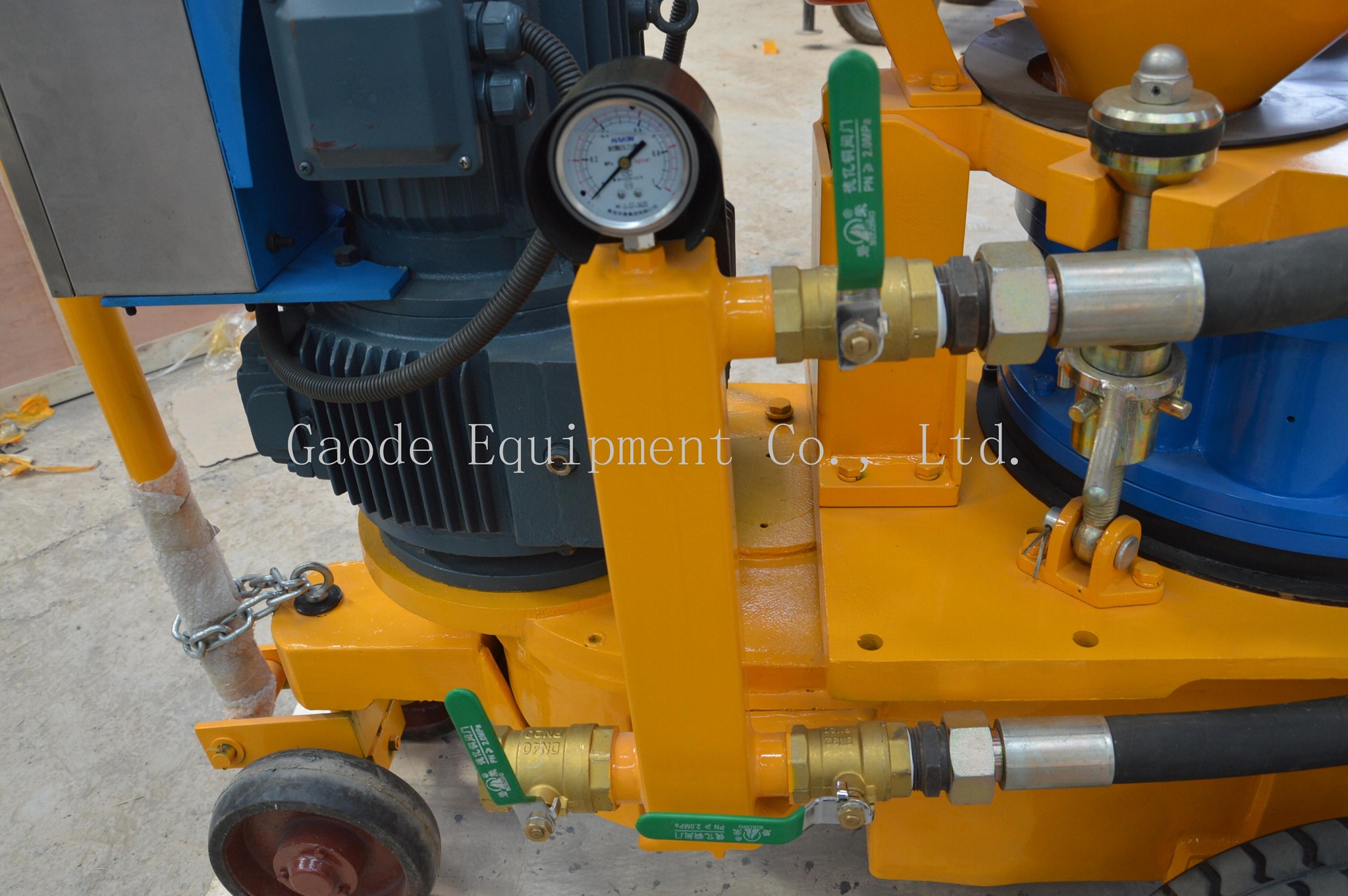

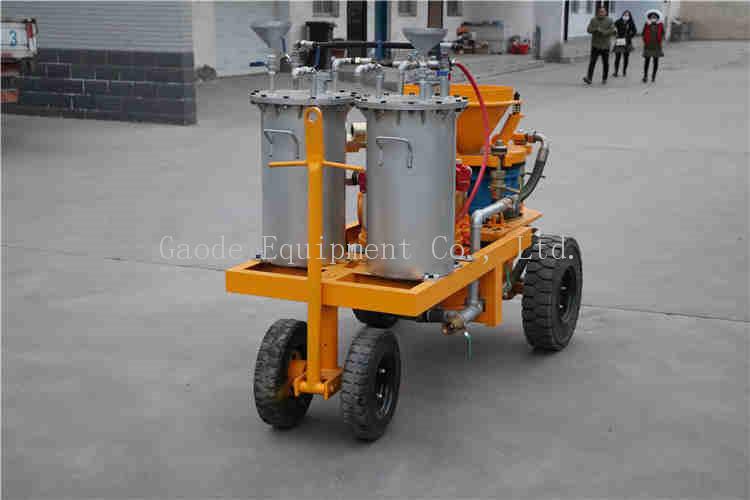

High Efficiency GSZ3000A Wet and Dry Mix Gunite Equipment

Description:

GSZ3000A gunite equipment is a universal concrete spraying machine for the processing of wet or dry mix.

The equipment is suitable either for manual spraying or by means of a robotic arm.

GSZ3000A is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.

Basic: Electric drive can be combined with tyre chassis.

Extended (optional):

Air motor drive combined with Skid or Rail-wheel

Specification

GSZ3000 air motor drive

Rated output

5m3/h

Max. horizontal conveying distance

35m

Max. aggregate size

Dia.15mm

Concrete slump

8~15cm

Conveying hose

Dia.50/65mm

Operating air pressure

0.2~0.6MPa

Air consumption

22m3/min (12+10)

Loading height

1.17m

Rotor Speed

11r/min

Rebound

≤10 %

Air motor power

8kW

Dosing pump model

BHA530 Dosing pump

Dosing pump rated pressure

0.5MPa

Dosing pump output

0~100L/h

Overall dimension(L×W×H)

1950×1050×1360mm                                                     1950×1050×1360mm

Weight

1200Kg

You also have other option

GSZ3000 electric motor

Specification (with Electric motor drive):

Rated Output

5m3 /h

Max. Horizontal Conveying Distance

35m

Max. Aggregate Size

15mm

Concrete Slump

8 -15cm

Conveying Hose Inner Diameter

51/ 64mm

Operating air Pressure

0.3-0.6MPa (43-86PSI)

Air Consumption

10~ 12m3 /min(357-430CFM)

Main Motor Power

7.5kW(10hp)

Dosing Pump:

BRJ15

Dosing Pump Rated Pressure

0.6MPa(86PSI)

Dosing Pump Output

17.5 -88L /h

Voltage

220V, 380V, 440V, 660V, 50Hz/60Hz

Material Charging Height

1.17m

Rotor Speed

11r/min

Overall Dimension(L × W × H)

2.05× 0.95× 1.18m

Net Weight

1200kg

 A complete set of GSZ3000A gunite equipment

No.

Description

Quantity

Unit

Remarks

1

Main Machine

1

set



2

Nozzle Assy.

1

set



3

Conveying Hose, ID64mm, 50ft.Length

1

piece



4

Rubber Hose Joint

3

piece

Fitting

5

Quick Coupling

3

piece



6

Upper Sealing Plate

1

piece



7

Lower Sealing Plate

1

piece



8

Dosing pump tube

1

piece



Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customised.
Lead Time︰in stock. common type7 working days after confirm
Product Image
