GDS1500G with CE ISO small foam concrete pump

foam concrete pump
  • foam concrete pump
  • foam concrete pump
  • foam concrete pump
  • foam concrete pump
  • GDS1500G with CE ISO small foam concrete pump
  • GDS1500G with CE ISO small foam concrete pump
Model No.︰GDS1500G
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 7000 / set
Minimum Order︰1 set
Share on:

 Total 40 Related Items
Prev3637383940

Product Description

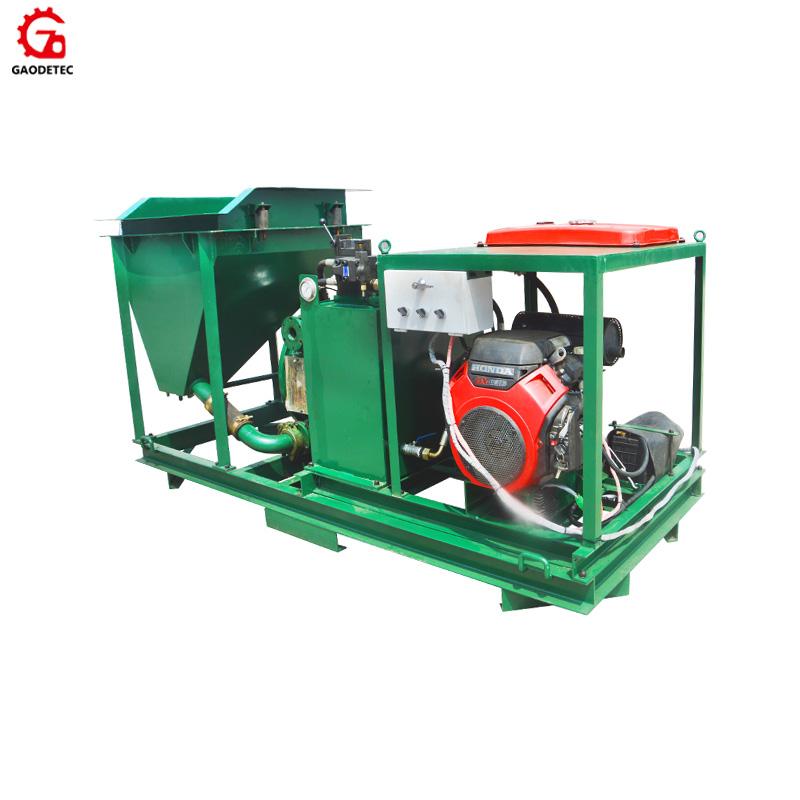

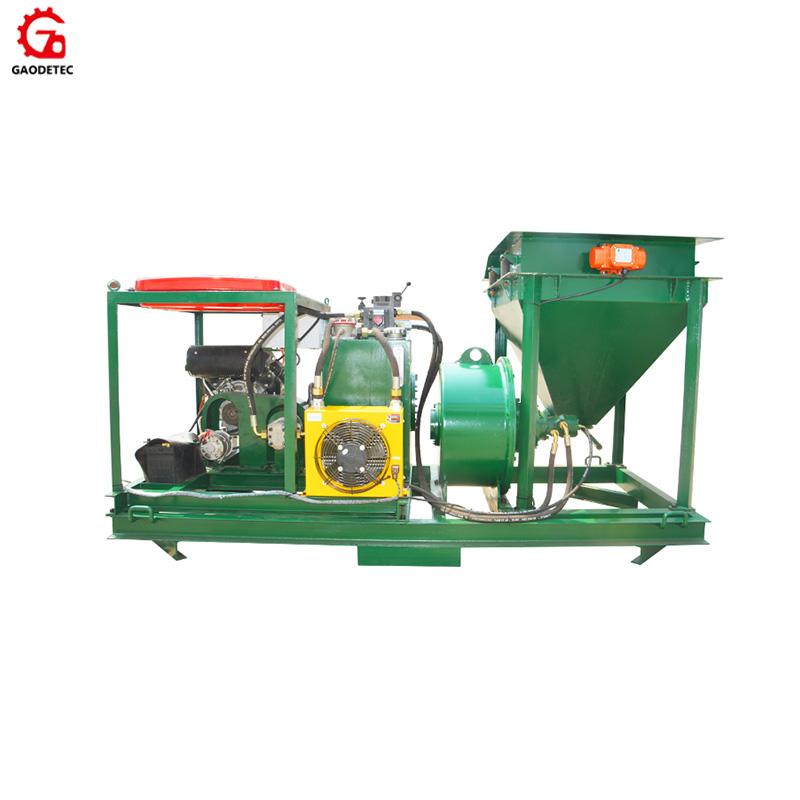

 GDS1500G Small Foam Concrete Pump

Foam Concrete Pump Description

The GDS1500G is a gasoline-powered light weight foam concrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. The GDS1500G Direct Drive uses a Honda GX390 power pack, is skid mounted.

Foam Concrete Pump Feature

·   Highreliable direct drive planetary gearbox

·   Infinite speed variation

·   Easily operating on site work

·   Standard spare part supply

Foam Concrte Pump Technical Specification

Item Description
Pressure 1.5 Mpa
Output 1.5-3m3/h
Max. Aggregate 8mm
The Squeeze Hose ID 50mm
Conveying Hose ID 38mm
Squeeze pump GH50-455
Power Honda GX390 Gasoline engine
Overall Dimension 1900x850x1250mm
Hopper volume: 200 Liter
Oil tank 120 Liter
Weight 610kg
Requested air compressor 3m3/min, 0.5Mpa Pressure
Note: the Diesel engine or Electric motor is optional.

A Complete set of GDS1500G foam concrete pump

No.

Description

Qty.

Unit

Remarks

1

GDS1500 main machine

1

set

 Chinese squeeze hose  or Trelleborg squeeze hose

2

conveying hose, L10m

2

pcs

one2’’, one 1.5’’

3

reducer 2'/1.5'

1

pcs



4

1.5’’ shotcrete nozzle assy.

1

set



5

1.5’’nozzle tip

1

pcs



6

clamp

2

sets

one 2’’, one 1.5’’

7

clean ball

2

pcs

one 2’’ , one 1.5’'

8

accessories

1

Set





Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customised.
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

foam concrete pump
foam concrete pump

foam concrete pump
foam concrete pump

foam concrete pump
foam concrete pump

foam concrete pump
foam concrete pump
