12.7mm 15.24mm Prestressed Concrete Anchor Plate

multistrands prestressing anchor
  • multistrands prestressing anchor
  • multistrands anchorage
  • pc wire anchor plate
  • prestressed flat anchor
  • prestressed tendons anchor system
  • anchor wedges
  • anchorage wedges
  • anchor barrel and wedges
  • prestressed anchorage
Model No.︰GYM
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 2 / set
Minimum Order︰100 set
Share on:

 Total 10 Related Items
Prev678910

Product Description

12.7mm 15.24mm Prestressed Concrete Anchor Plate

1. Descriptions

1. Type: Single-hole, Multi-hole; Circular, Flat.

2. Parts: Anchor Ring/Plate, Wedge, Base Plate etc.

3. Have a high anchor efficiency and very good performance

4. Post tensioning and prestressing use

5.  We can manufacture all kinds of anchorage and prestressed equipment according to your requirement and drawings.

2. Applications:

Prestressed Anchorage system is a completed, independent building measure researched, it has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, etc.

3. Features:

GYM anchorage system is consists of stressing-end anchorage, fixed-end anchorage, couple and corrugated pipe. It can be divided into GYM10, GYM11, GYM13, GYM15, GYM18, GYM22 series of round anchors and GBM15, GBM13 series of flat anchors. Please see the follows:

1. GYM15 applies to 15.2/15.24mm, 15.7mm pc strand.

2. GYM13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.

3. GYM10 applies to 9.3mm, 9.53mm pc strand.

4. GYM11 applies to 10.8mm pc strand.

5. GYM18 applies to 17.8mm pc strand.

6. GYM22 applies to 21.6/21.8mm pc strand.

4. Technical data:

Model

Number of Strand

Anchor Head

Corrugated Pipe I.D.

Bearing

Spiral

The

 Matched

AxBxφC

øD

Plate

Reinforcement

Jack type





øExF

øGxøHxI

Number of









Cycles



GYM15-1

1

80x80xσ14



ø48x47

ø80xø6x30

4

QYC270

GYM15-2

2

122x100xø81

ø50

ø83x48

ø130xø10x40

4

YDC650

GYM15-3

3

125x100xø83

ø50

ø87x49

ø130xø10x40

4

YDC1000

GYM15-4

4

145x110xø90

ø55

ø98x50

ø150xø10x50

4

YDC1500

GYM15-5

5

160x120xø93

ø55

ø108x50

ø165xø12x50

4

YDC1500

GYM15-6

6

190x150xø106

ø70

ø128x50

ø200xø12x50

4

YDC2000

GYM15-7

7

190x150xø106

ø70

ø128x50

ø200xø12x50

4

YDC2000

GYM15-8

8

205x155xø125

ø80

ø138x54

ø210xø14x50

5

YDC2000

GYM15-9

9

215x170xø125

ø80

ø148x56

ø220xø14x50

5

YDC2500

GYM15-10

10

230x185xø142

ø90

ø158x59

ø230xø14x50

6

YDC2500

Payment Terms︰TT/LC/cash/credit card
Packing︰wooden case
Lead Time︰in stock
Standards Certificate︰CE ISO
Product Image

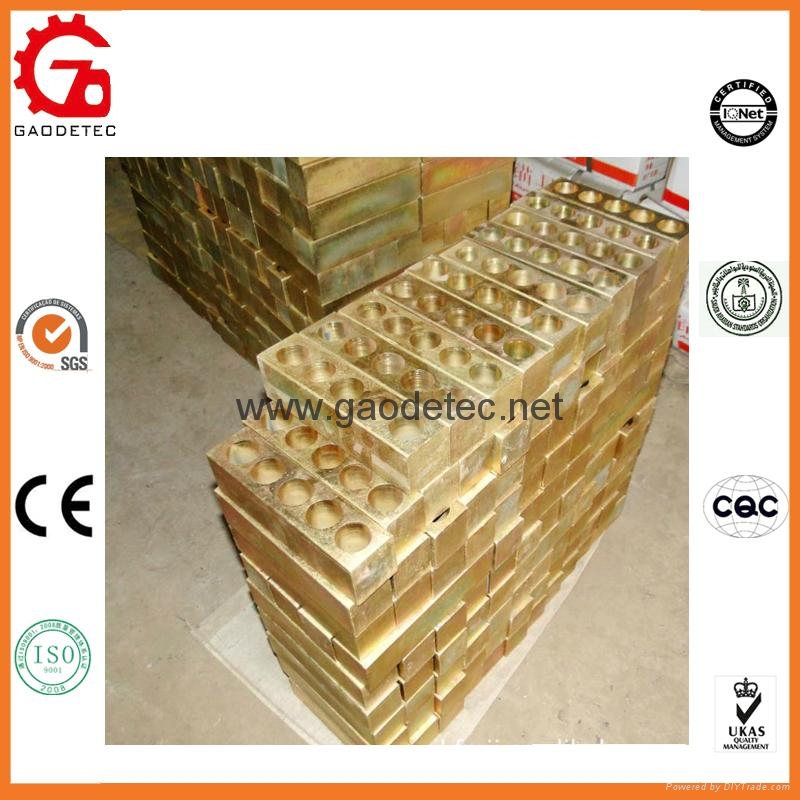

multistrands prestressing anchor
