QYC series front end prestressed tensioning hydraulic jack

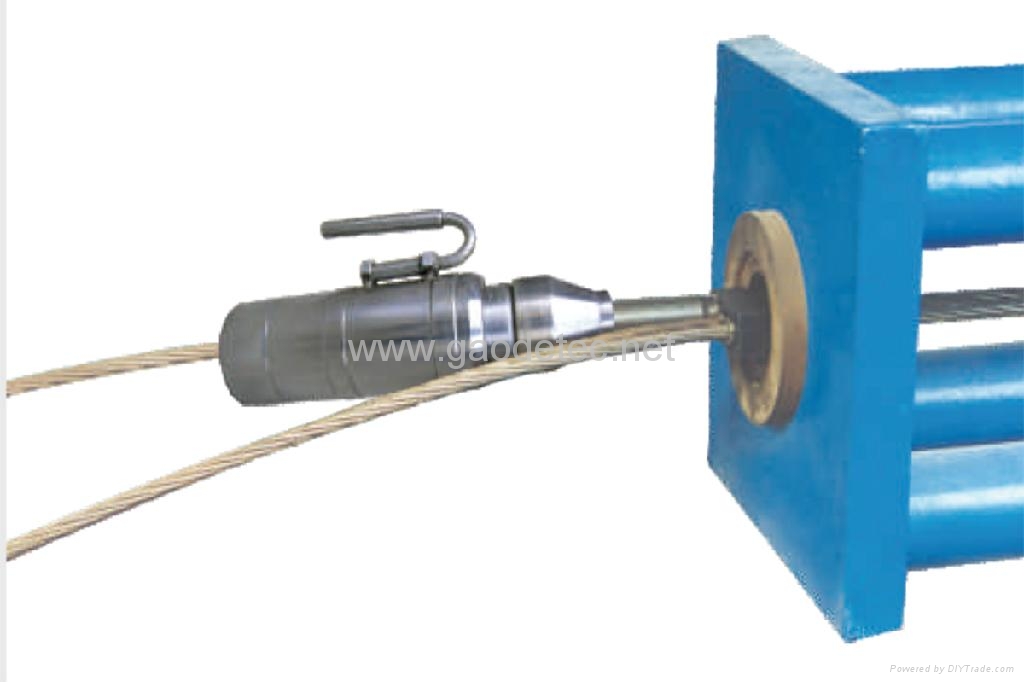

  • QYC series front end prestressed tensioning hydraulic jack
  • QYC series front end prestressed tensioning hydraulic jack
  • QYC series front end prestressed tensioning hydraulic jack
  • QYC series front end prestressed tensioning hydraulic jack
  • QYC series front end prestressed tensioning hydraulic jack
  • QYC series front end prestressed tensioning hydraulic jack
  • tensioning jack
  • single strand hydraulic jack
  • prestressed tension jack
  • hydraulic jack
  • single hole tension hydraulic jack
  • tensioning jack
Model No.︰QYC
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 350 / set
Minimum Order︰1 set
Share on:

 Total 30 Related Items
Prev2627282930

Product Description

QYC series front end tensioning jack

Descriptions:

1. QYC front-end fixed jacks have internal re-usable anchor which can automatically clamp and loosen the wedge.

2. They are mainly used for GYM15 and GYM13- type various single tensioning with bonded and unbonded prestressed cable.

3. Notice: QYC type front-end fixed jacks could be matched with different size, length of the top cover, retreat anchor device, to be used in the experiment by root tension pre-tightening, tension retreat anchor and stay cable tone with single cable.

4. We can manufacture all kinds of anchor and equipment according to your requirement and drawings.

Applications:

It is matched with prestressed anchorage widely used in the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering .

Features:

1. Using the new seals, to synchronous strengthen the seal-ability under great pressure.

2. Using special alloy steel with heat treatment process, reducing the cylinder's expansion ratio in the tensioning process. So the life of seals and sealing performance can be improved about 20%.

3. In the tensioning the operating process, jacks is easily damaged under overpressure because of the jack-based pullback cylinder, so we added the overpressure valve on the jacks to pressure production. Meanwhile we improved the original of commonly used structure by wire disc and flanged disc, to make the bearing capacity for oil pressure strengthen. So enormously reduce the possibility of mechanical damage due to improper operation.

Notice: according to users' requirement, prestressed concrete jack for anchors and pc strand can be configured

Technical data:

   Parameter table of QYC front-end fixed jack

Model

Nominal

Diameter of

Area of

Stroke of

Rated oil pressure

Overall

Minimum

The reserved

tensioning

minimum

stressing

stressing

dimension

working

length



center  hole

cylinder





space(mm)

of strand

KN

mm

mm²

mm

Mpa

out diameter(mm)

length(mm)

L

E

mm

QYC70

74

10

1437

150

50

63

296

616

54

120

QYC240

240

18

4009

200

60

102

425

825

86.7

200

QYC270

270

18

4415

200

61

105

427

827

89

200

QYC1100

1100



22619

200

49

265

336







QYC2000

2000



42332

200

48

355

386







Payment Terms︰TT/LC/cash/credit card

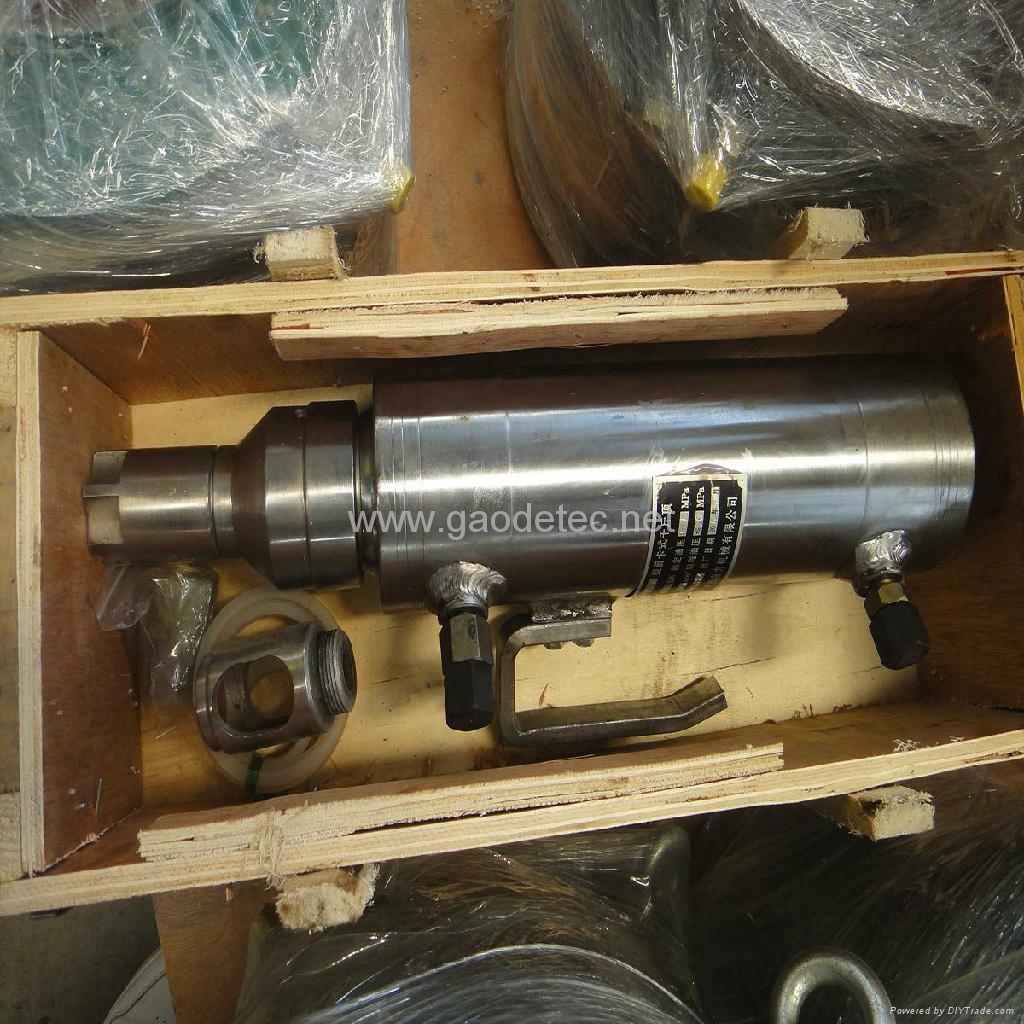

Packing︰wooden cases
Lead Time︰in stock
Standards Certificate︰CE ISO
Product Image

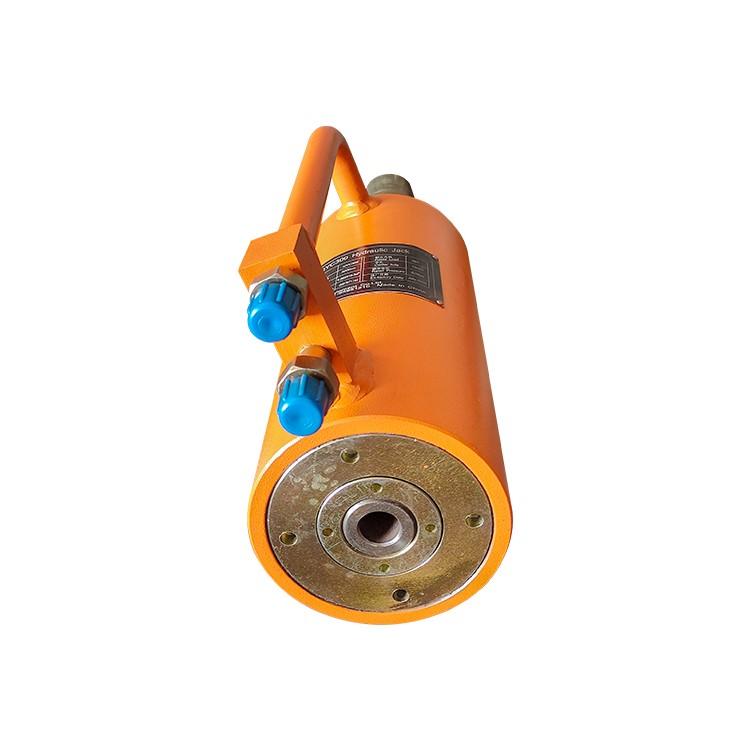

tensioning jack
tensioning jack

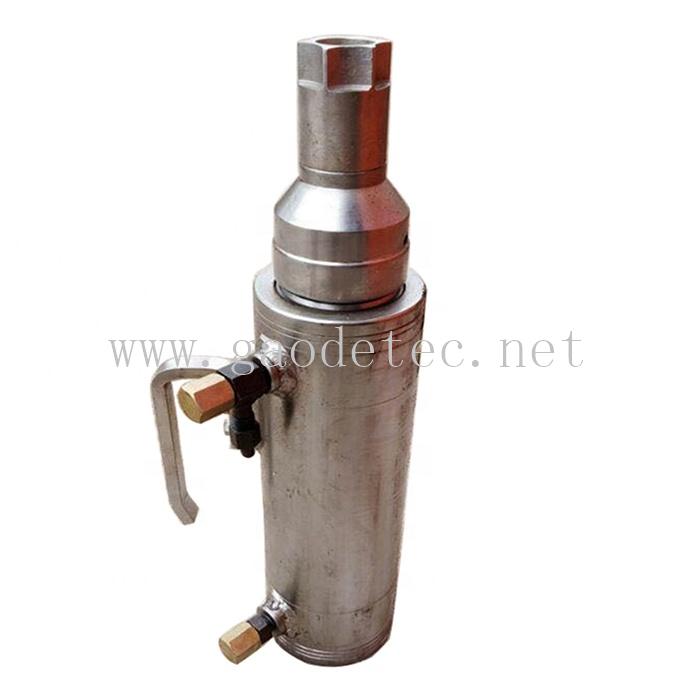

single strand hydraulic jack
