Cellular Lightweight Foam Concrete Grout Machine

Foam concrete grout
  • Foam concrete grout
  • Cellular Lightweight Foam Concrete Grout Machine
  • Foam concrete grout
Model No.︰GF30
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 8500 / set
Minimum Order︰1 set
Share on:

 Total 40 Related Items
Prev3132333435Next

Product Description

Cellular Lightweight Foam Concrete Grout Machine

GF30 cement foam machine put cement and water into a slurry mixing and then mix them in a certain proportion, press them into transmission pipelines through hydraulic cylinder; According to a certain proportion foam mixed with water and then mixed with compressed air by the high-pressure pump; In the pipeline it form the high-density foam and meticulous, at last form the foam cement with the slurry in the pipeline.

GF30 cement foam machine Technical data

Name

unit

Parameter

Foam cement throughput

m³/h

20-30

Max convey height

m

150

Max convey level

m

1000

Primary motor power

kw

31

Feeder electrical power

kw

1.5

Mixer feeding height

mm

1100

Mainframe size

mm

2200×1540×1760

mixer size

mm

1940×780×1470

feeder size

mm

3800×760×830

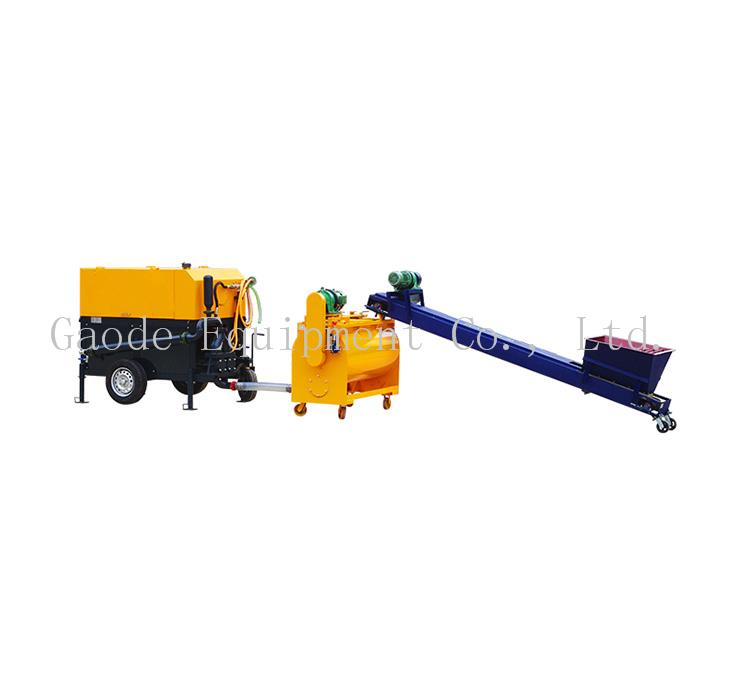

A complete set of GF30 cement foam concrete machine

No.

Description

Quantity

Unit

Remarks

1

Main Machine

1

set



2

Mixer

1

set



3

Feeder

1

set



4

compressor

1

set



5

foam generator

1

set



6

Conveying Hose, ID50mm, Length 100m

1

piece



7

Water pump

1

set



8

Water pump hose

1

piece





Payment Terms︰TT/LC/DP/DA
Packing︰contained in a 20 feet container
Lead Time︰within 7 days when we received the prepayment
Standards Certificate︰ISO9001 CE
Product Image

Foam concrete grout
Foam concrete grout

Cellular Lightweight Foam Concrete Grout Machine
Cellular Lightweight Foam Concrete Grout Machine

Foam concrete grout
Foam concrete grout
