Foam Concrete Machine for Roof Insulation

  • Foam Concrete Machine for Roof Insulation
  • Foam Concrete Machine for Roof Insulation
  • roof insulation foam concrete machine in difference angles
  • roof insulation
Model No.︰GF15
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 9180 / SET
Minimum Order︰1 SET
Share on:

 Total 14 Related Items
Prev45678Next

Product Description

Foam Concrete Machine for Roof Insulation

Introduction

GF15 Foam concrete making machine contains feeding machine, mixing machine, and conveying pump. It is an integrated equipment with feeding, foam blowing, mixing and high pressure conveying. Its pump adopts double cylinder full hydraulic pumping, high pressure in the exist, could meet the requirement of the high-rise buildings. Transport height in vertical 70m, transport length in horizontal 200m.

GF15 Foam concrete making machine equipped with travelling wheels, universal wheels and flexible support, easy for move and take its place.

GF15 Foam concrete making machine is an ideal equipment for roofing insulation and slope, ground insulation bedding course, and foundation pit filling.

Features:

1. The machine is integrated equipment, built in with the feeding system, mixing system, foaming system, water system and pumping system;

2. With moderate produce capacity and pumping height;

3. Simple structure, light weight, easy move, low cost

4. Mainly used for roof insulation, floor heating etc. projects;

5. High cost-performance.

Technical Data

Model

GF15

Max.Output

15m3/h

Max.Conveying Pressure

3 MPa

Max.Horizontal Transporting Range

200 m

Max. Vertical Transporting Height

70 m

Acceptable Max. Aggregates size

2mm

Power

1.5kw+3kw+5.5kw+5.5kw+0.75kw

Dimension

1900x1400x1500mm

Weight

1000kg

A complete set of GF15 foam concrete machine

No.

Description

Quantity

Unit

Remarks

1

Main Machine

1

set



2

Mixer

1

set



3

Feeder

1

set



4

compressor

1

set



5

foam generator

1

set



6

Conveying Hose, ID50mm, Length 60m

1

piece



7

Water pump

1

set



8

Water pump hose

1

piece



Payment Terms︰TT/LC/DP/DA/IN CASH
Packing︰Contained in a20 feet container
Lead Time︰within 7 days when received prepayment
Standards Certificate︰ISO9001 CE
Product Image

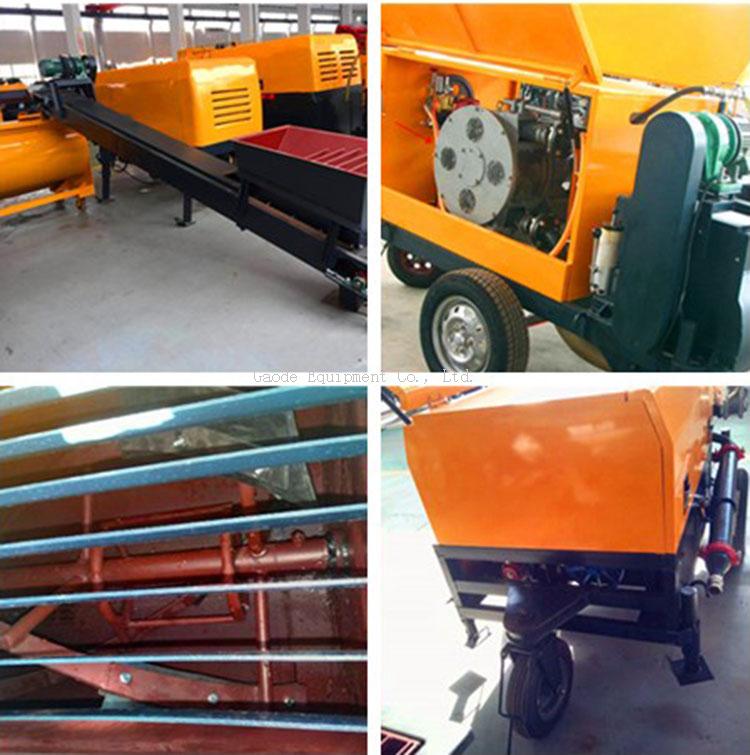

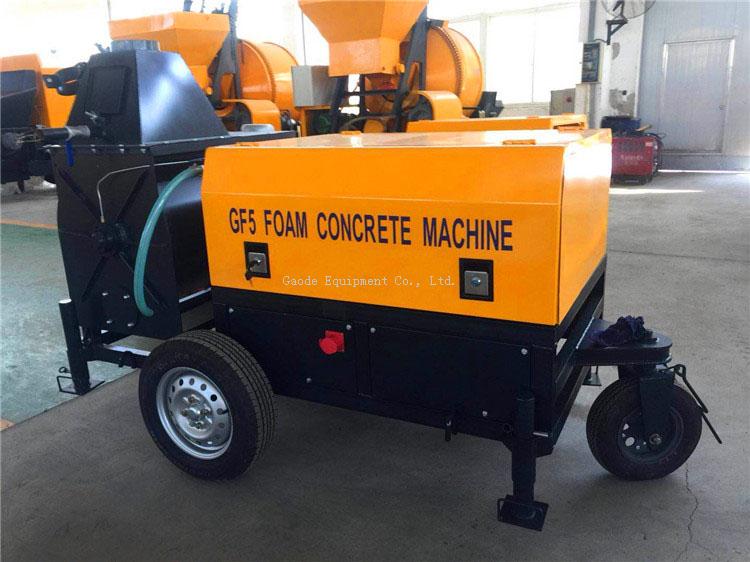

roof insulation foam concrete machine in difference angles
roof insulation foam concrete machine in difference angles

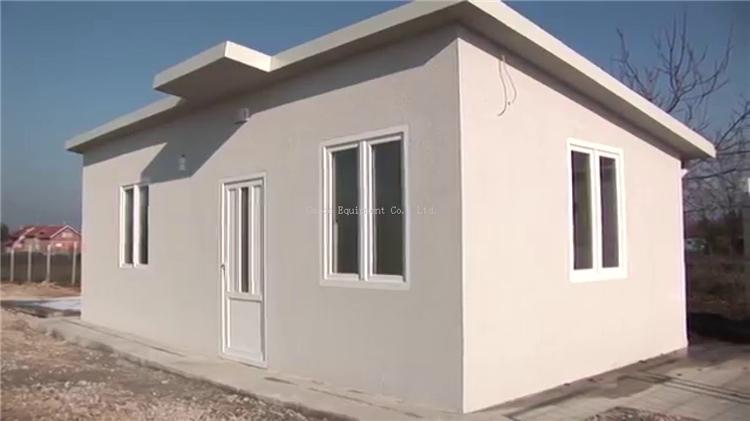

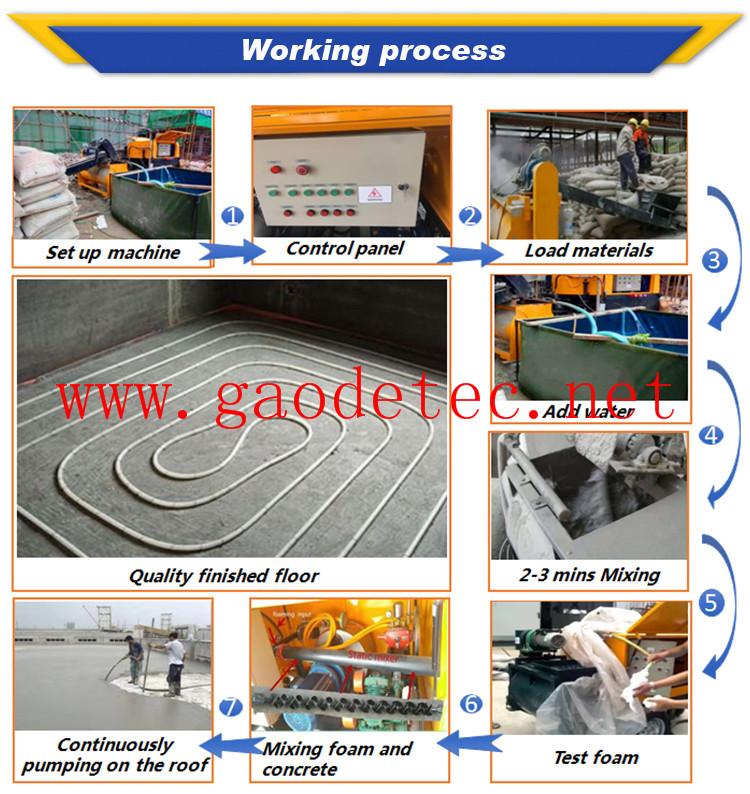

roof insulation
roof insulation
