Foam cement machine for sale

CLC foam wall
  • CLC foam wall
  • CLC foam wall
  • foam concrete wall
  • Foam cement machine for sale
  • cast-in-situ processing for making foam concrete wall
  • foam concrete wall
  • foam concrete wall
  • foam concrete wall
  • foam concrete wall
  • foam concrete wall
  • foam concrete wall
  • foam concrete wall
  • foam concrete wall
  • foam concrete wall
  • foam concrete wall
  • foam concrete wall
Model No.︰GM2000 GP30
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 9980 / SET
Minimum Order︰1 SET
Share on:

 Total 40 Related Items
Prev3334353637Next

Product Description

Foam cement machine for cast-in-place wall

Brief instruction:

Foamed concrete is a lightweight concrete derived from portland cement and common portland cement as inorganic cementing material, coal ash as admixture, sand as aggregate, mixed with organic foaming agent. Non-load-bearing walls constructed by cast-in-situ.

Foamed concrete has changed the traditional way of building walls with precast concrete segments. The excellent integrity and easy operation means low labor intensity and low building cost. Besides, good strength characteristics with reduced eight, excellent sound and thermal insulation, and water proof, etc., all these performances make it an ideal substitute of present traditional walls.

Main machines for cast-in-place wall includes: GM2000 foam concrete mixer, GP30 foam concrete pump, stencil or formwork foaming agent etc.

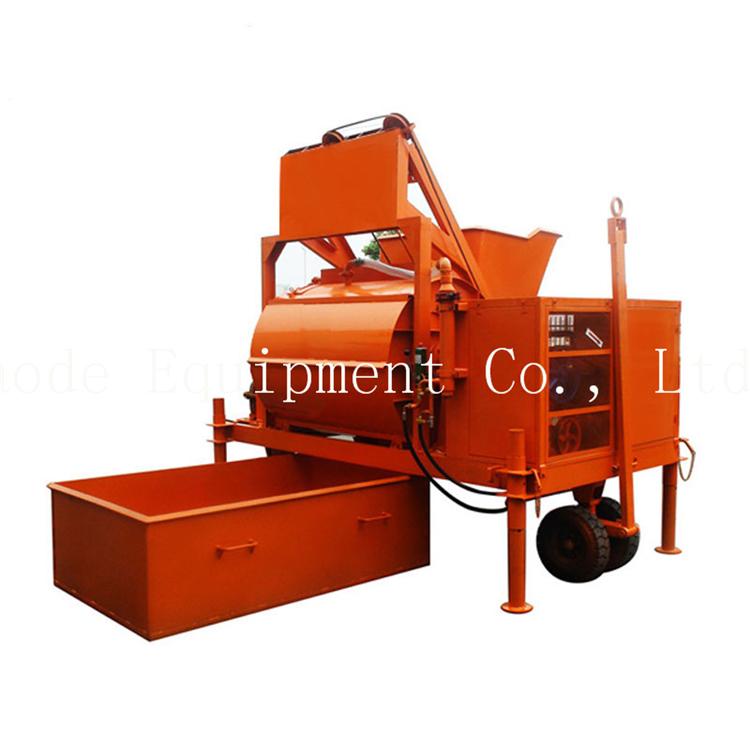

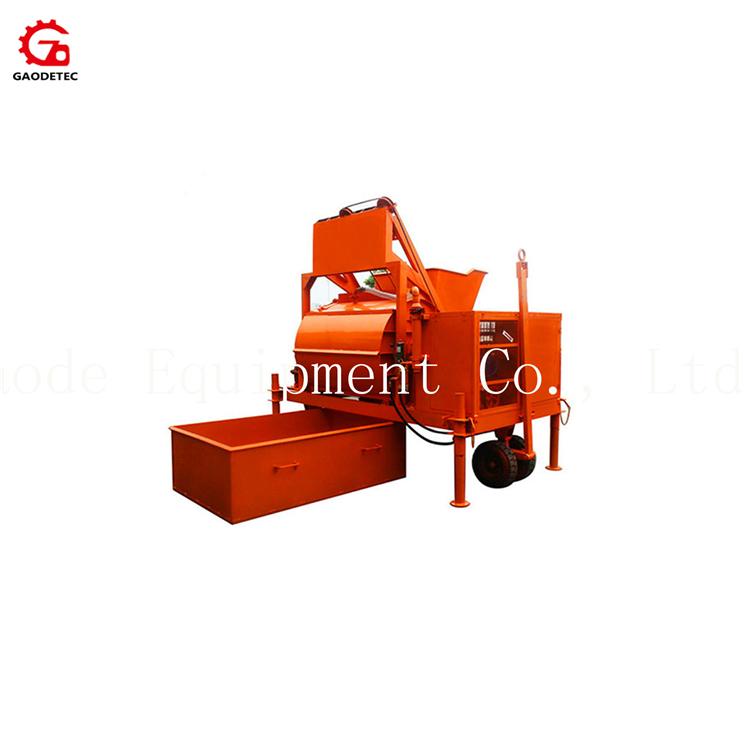

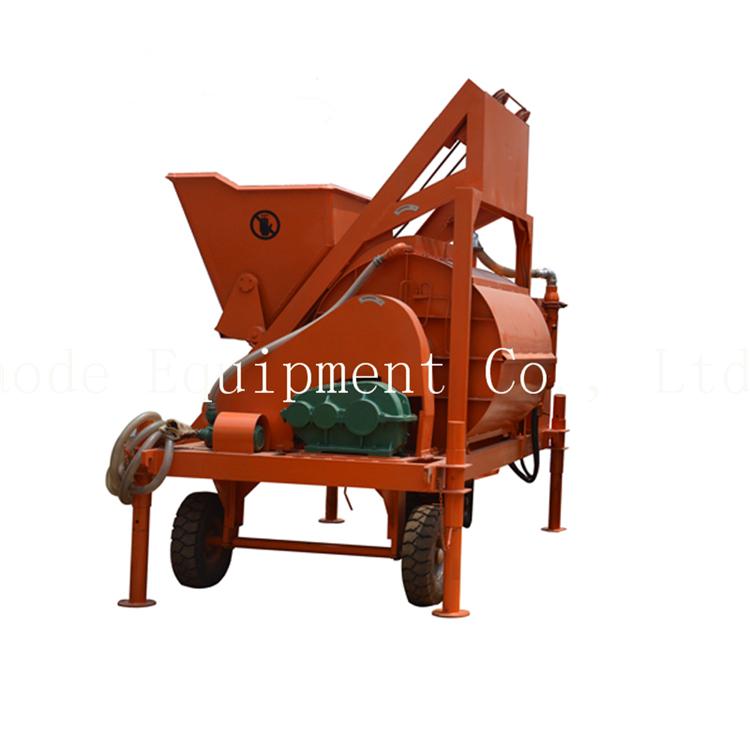

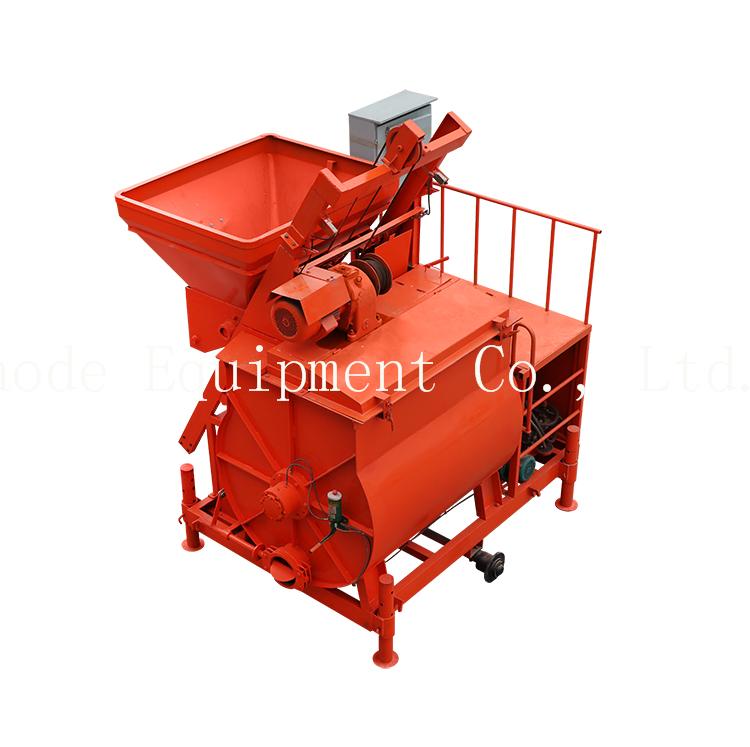

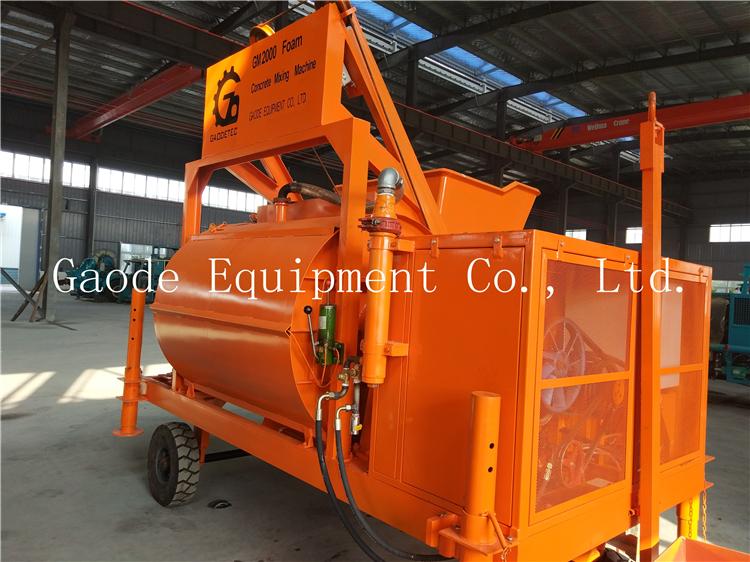

GM2000 foam concrete mixer:

The foam concrete mixer mainly includes mixer, feeder hopper, foam generator, water pump, control panel, tank.

Features:

1. It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.

2. Specially mixing blades, mixing the material toughly, storage in its bottom is less than 10mm, no material left on the four walls internal the mixing drum.

3. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high, it saves energy.

Technical data sheet:

Model GM2000
Production Capacity 15-20 m3/h
Output Volume 1500 L
Material Input Volume 2000 L
Main Shaft Revolution 32 r/min
Hopper Lifting speed 22 m/min
Mixing Motor 11 kW
Winding Motor 5.5 kW
Water Pump Motor 1.1 kW
Vibrating Motor 0.55 kW
Foaming System 5.5 kW
Max. Moving Speed 15 km/h
Total Weight 3200 kg
Overall Dimension 2600x2250x3000 mm

GP30 foam concrete pump:

Model GP30
Max. Output 30 m3/h
Max. Conveying Pressure 8 MPa
Max. Horizontal Transporting Range 600 m
Max. Vertical Transporting Height 200 m
Max. Particle Size of Aggregates 8 mm
Cylinder Bore 80 mm
Delivery Cylinder Bore 140 mm
Max. Pressure of Hydraulic System 24 MPa
Oil Pressure Box Volume 200 L
Motor Power 30 kW
Total Weight 2200 kg
Overall Dimension 3100x920 x1300mm

Stencil or formwork:

Main standard:

1). 450*900mm         2). 150*900mm           3). 100*900mm

Also could according to your demands to customize.

Foaming agent:

The foaming agent is a high-tech product, it has the characteristics as high expansion ratio, balanced density, foaming stability, and a long continuance, etc. Thus it is an environmental protective mighty foaming agent, which is nuisance-free and pollution-free.

Payment Terms︰TT/DP/DA/LC
Packing︰Contained in a 40 feet container
Lead Time︰within 7 days after received the first payment
Standards Certificate︰ISO9001/CE
