Manual CLC blocks production line

Manual CLC blocks production line
  • Manual CLC blocks production line
  • GM2000 foam concrete mixer
  • GH series foam concrete pump
  • Manual CLC blocks production line
  • pour foam concrete to manual molds
  • Manual CLC blocks production line
  • foam concrete blocks or bricks for sale
Model No.︰GM2000, GH
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 13280 / SET
Minimum Order︰1 SET
Share on:

 Total 14 Related Items
Prev12345Next

Product Description

Manual CLC blocks production line

CLC is cellular light weight concrete, has been used in over 40 countries over the past year for build houses, apartments, schools, hospitals, industrial buildings etc.

New building material foam concrete block featurs:
*Low Cost                                *Light Weight
*Heat Preservation                   *Sound Insulation
*Fireproofing                            *Aseismatic
*High Construction Speed         *Environmental Protection

Main machines for making CLC blocks include: GM2000 foam concrete mixer, GH76/65/GH50 foam concrete pump, manual molds.

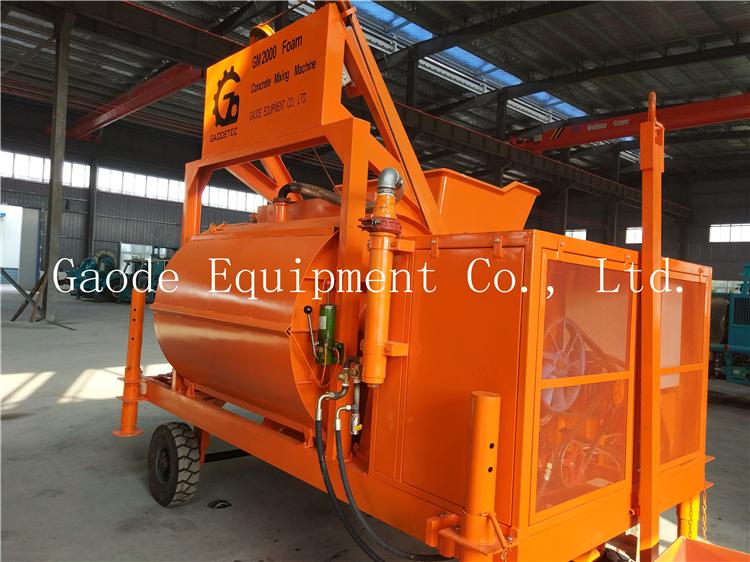

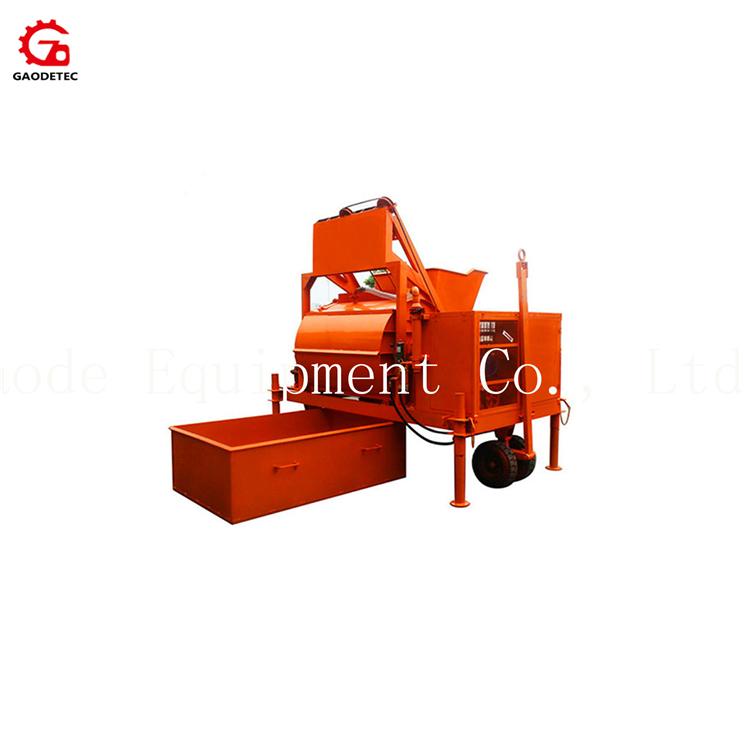

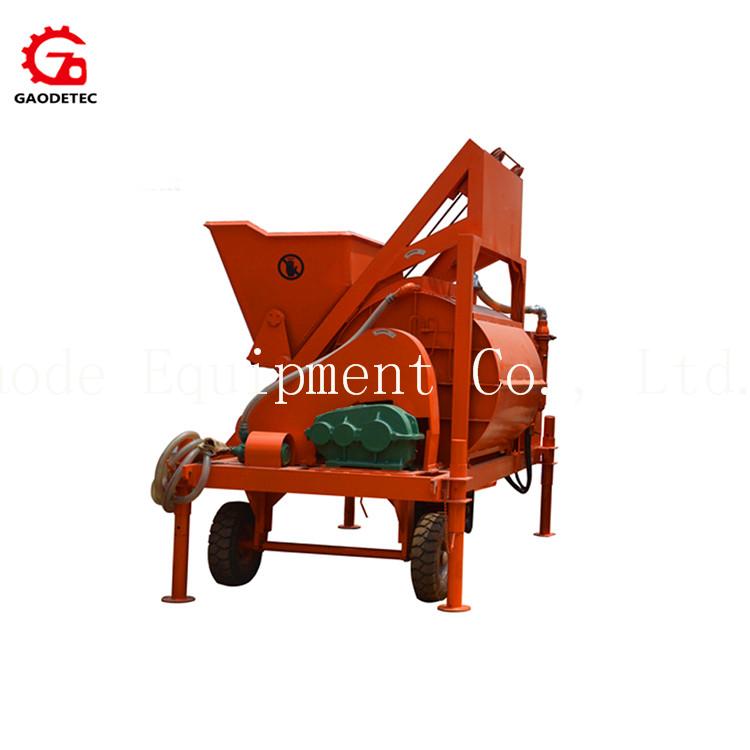

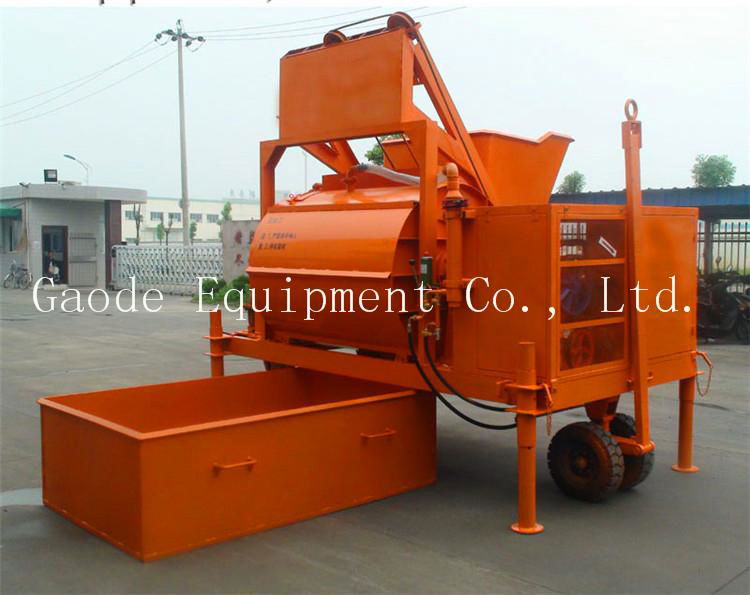

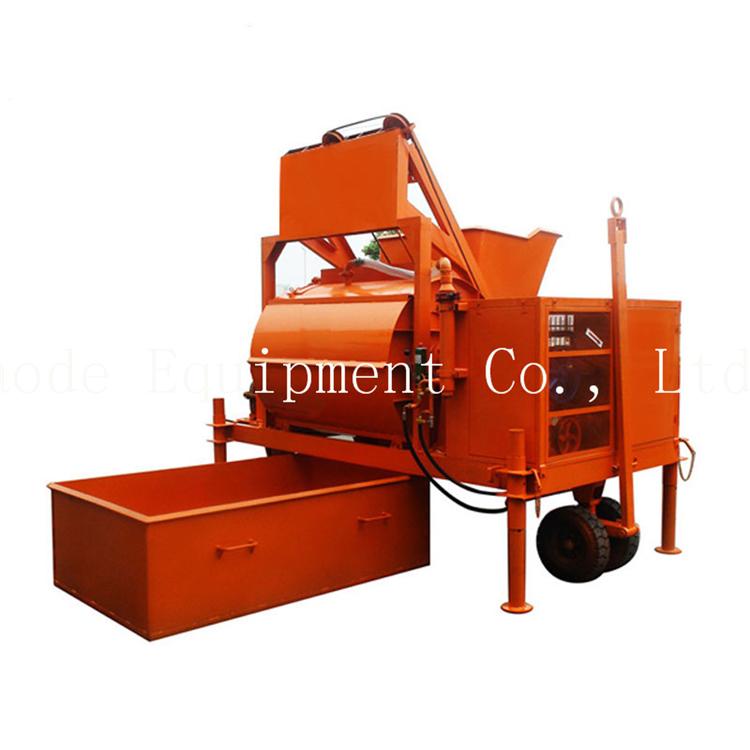

GM2000 foam concrete mixer

The foam concrete mixer mainly includes mixer, feeder hopper, foam generator, water pump, control panel, tank.

Features:

1. It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.

2. Specially mixing blades, mixing the material toughly, storage in its bottom is less than 10mm, no material left on the four walls internal the mixing drum.

3. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high, it saves energy.

Main technical data sheet:

Model GM2000
Production Capacity 15-20 m3/h
Output Volume 1500 L
Material Input Volume 2000 L
Main Shaft Revolution 32 r/min
Hopper Lifting speed 22 m/min
Mixing Motor 11 kW
Winding Motor 5.5 kW
Water Pump Motor 1.1 kW
Vibrating Motor 0.55 kW
Foaming System 5.5 kW
Max. Moving Speed 15 km/h
Total Weight 3200 kg
Overall Dimension 2600x2250x3000 mm
GH76/65/50 foam concrete pump for option

Features:

  1. No valves
  2. Self-priming
  3. Only tube to replace
  4. Spiral bevel gear SEW series
  5. Mainly consists pump house, rotor, idel rotor, squeeze tube, and driving unit
  6.  Easy maintance, low cost, short down time

Model

GH76

GH65

GH50

Output

20m3/h

10-15 m3/h

8-10 m3/h

Max. theoretical conveying pressure

1.5MPa

1.5Mpa

1.5Mpa

Hose ID(mm)

76

65

50

Rotation

42r/min

42r/min

35r/min

Max. aggregate Dia ( mm )

15mm

12

10

Max. Suct.Left ( m )

5

5

5

Motor Power (kw)

18.5kw

11

7.5

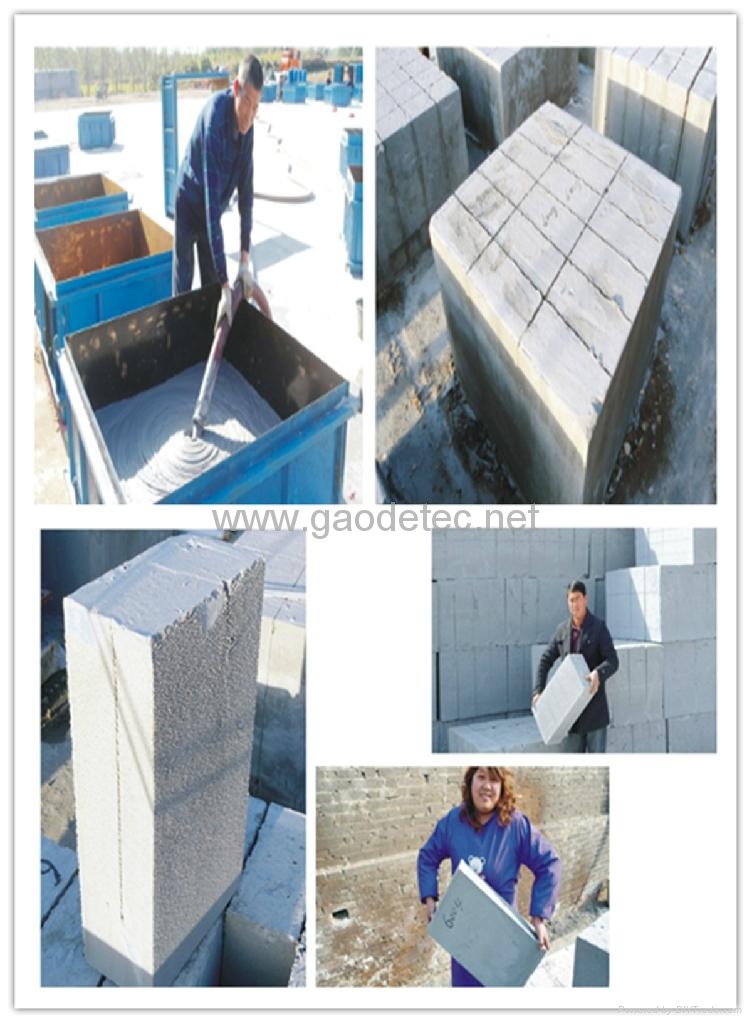

Manual moulds

The mould size

600x200x200mm

600x200x150mm

600x200x100mm

600x200x75mm

500x400x100mm

500x250x200mm

500x250x100mm

Also could be customized according to your demands

Payment Terms︰T/T/LC/DP/DA/IN CASH
Packing︰contained in a 40 feet container
Lead Time︰Within 7 days after received the prepayment
Standards Certificate︰ISO9001 CE
