Model No.︰GM1000/GM2000
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 9980 / set
Minimum Order︰1 set
Share on:

 Total 14 Related Items
Prev1011121314Next

Product Description

Foam Concrete Mixer Machine For Sale

Gaode foam concrete mixer includes two types:GM1000 lightweight foam concrete mixer and GM2000 lightweight foam concrete mixer

GM1000 lightweight foam concrete mixer:

Model

GM1000

Max.Output

5 m3/h

Material input volume

1000L

Mixing speed

6-8min/batch

Mixer motor power

1.5kw

Max. Particle Size of Aggregates

8 mm

GM2000 lightweight foam concrete mixer:

Model GM2000
production capaticy 15-20 m3/h
Output Volume 1500 L
Material Input Volume 2000 L
Main Shaft Revolution 32 r/min
Hopper Lifting speed 22 m/min
Mixing Motor 11 kW
Winding Motor 5.5 kW
Water Pump Motor 1.1 kW
Vibrating Motor 0.55 kW
Foaming System 5.5 kW
Max. Moving Speed 15 km/h
Total Weight 3200 kg
Overall Dimension 2600x2250x3000 mm

The foam concrete mixer mainly includes Mixer, Feeder Hopper, Foam Generator, Water Pump, Control Panel, Tank.

Foam concrete mixer features

1. The foam blending fast, blowing foam uniformly.

2. Without suspended matter, without the declining, it’s good for steady pouring.

3. Little loss ratio of foam maintain the foam proportion in the foam concrete to make the products with stability density.

4. No dead angle design, mixing the material toughly, storage in its bottom is less than 10mm, no material left on the four walls internal the mixing drum.

5. It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.

6. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high, it saves energy.

Payment Terms︰TT/LC/DP/DA
Packing︰Contained in a 40 feet container
Lead Time︰within 15 working days
Standards Certificate︰ISO9001/CE
Product Image

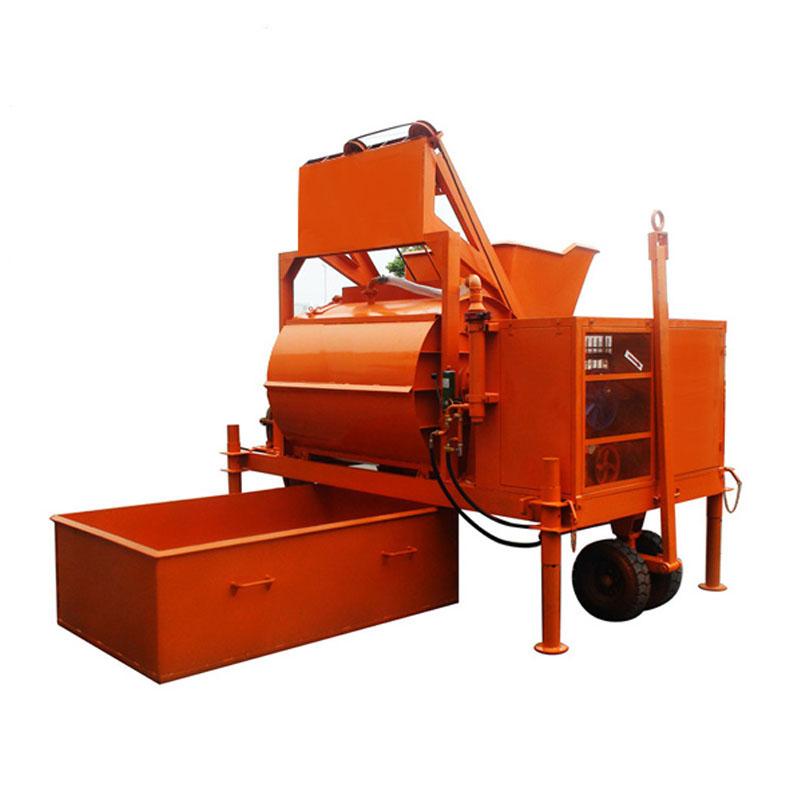

GM2000 foam concrete mixer for sale
GM2000 foam concrete mixer for sale


GM1000 foam concrete mixer
GM1000 foam concrete mixer

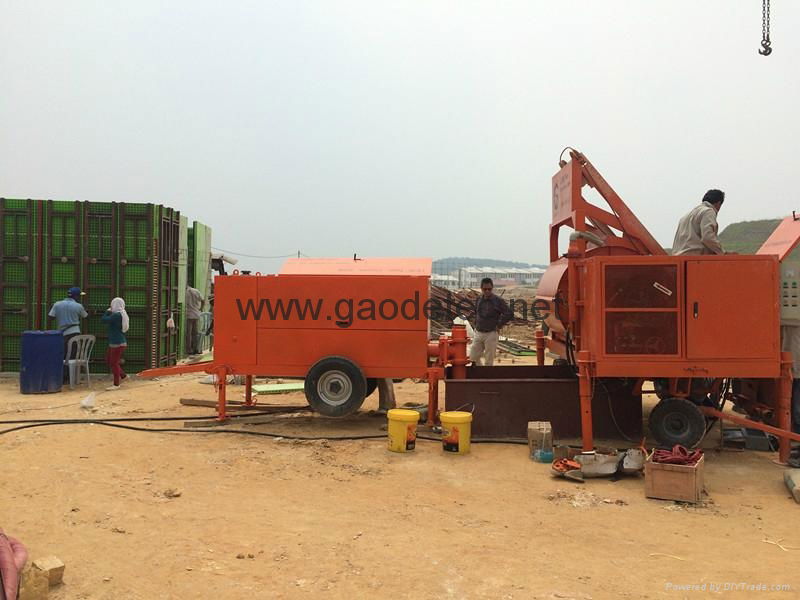

foam concrete equipment worked in Malaysia
foam concrete equipment worked in Malaysia
