GSZ3000V new dry/wet-mix shotcrete machine

gunite machine
  • gunite machine
  • gunite machine
  • gunite machine
  • gunite machine
  • gunite machine
  • gunite machine
  • gunite machine
  • gunite machine
  • gunite machine
  • gunite machine
  • gunite machine
Model No.︰GSZ3000V
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 6000 / set
Minimum Order︰1 set
Share on:

 Total 20 Related Items
Prev910111213Next

Product Description

GSZ3000V new dry/wet-mix shotcrete machine

Brief introduction:

GSZ3000V wet / dry-mix concrete shotcrete machine with variable output is an updated version, based the popular equipment in China. And it mainly is used for dry/wet spraying concrete. Compared with the popular equipment, it has easy sealing, smooth stream and uniform spraying.

It also has some obvious advantages such as advanced technology, perfect structure, stable performance, convenient operation and longevity of service etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.

Specification:

Rated output

2-5m3/h

Max. horizontal conveying distance

35m(wet)/200m(dry)

Max. aggregate size

15mm

Concrete slump

8~15cm(wet)

Conveying hose dia.

50/65mm

Operating air pressure

0.2~0.6MPa

Air consumption

10~12m3/min

Rotor Rev.

5-12r/min

Rebound

≤10 %

Main electric motor power

7.5kW

Variable gearbox:

MBLY75

Overall dimension(L×W×H)

1580×850×1250mm

Weight

950Kg

Feature:

  • For dry or wet mix shotcrete
  • Mechanical speed control
  • Durable spare parts
  • Heavy duty solid wheels
  • Function stable and reliable
  • Can be customized

GH15 dosing pump:

Output Capacity

24-120L/h

Max. Particle Size

3 mm

Max. Work Pressure

8 bar/116PSI

Max. Suck lift

2 meter

Hose Tube ID

15mm

Electric motor

0.75Kw, 3 phase 380V

Overall Dimension(L×W×H)

0.86×0.76×0.85m

Net Weight

105kg

Contact Supplier:

Many thanks for visiting our web, we can supply shotcrete machine for you. Before we send quotation, please let me know the following question:


1. What's the project you will use the machine do, for slope protect, or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 9m3/h, or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel ? What voltage it is on your local? It is 3 phase 380V 50Hz in China.


We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type:7 working days after confirm
Standards Certificate︰CE ISO

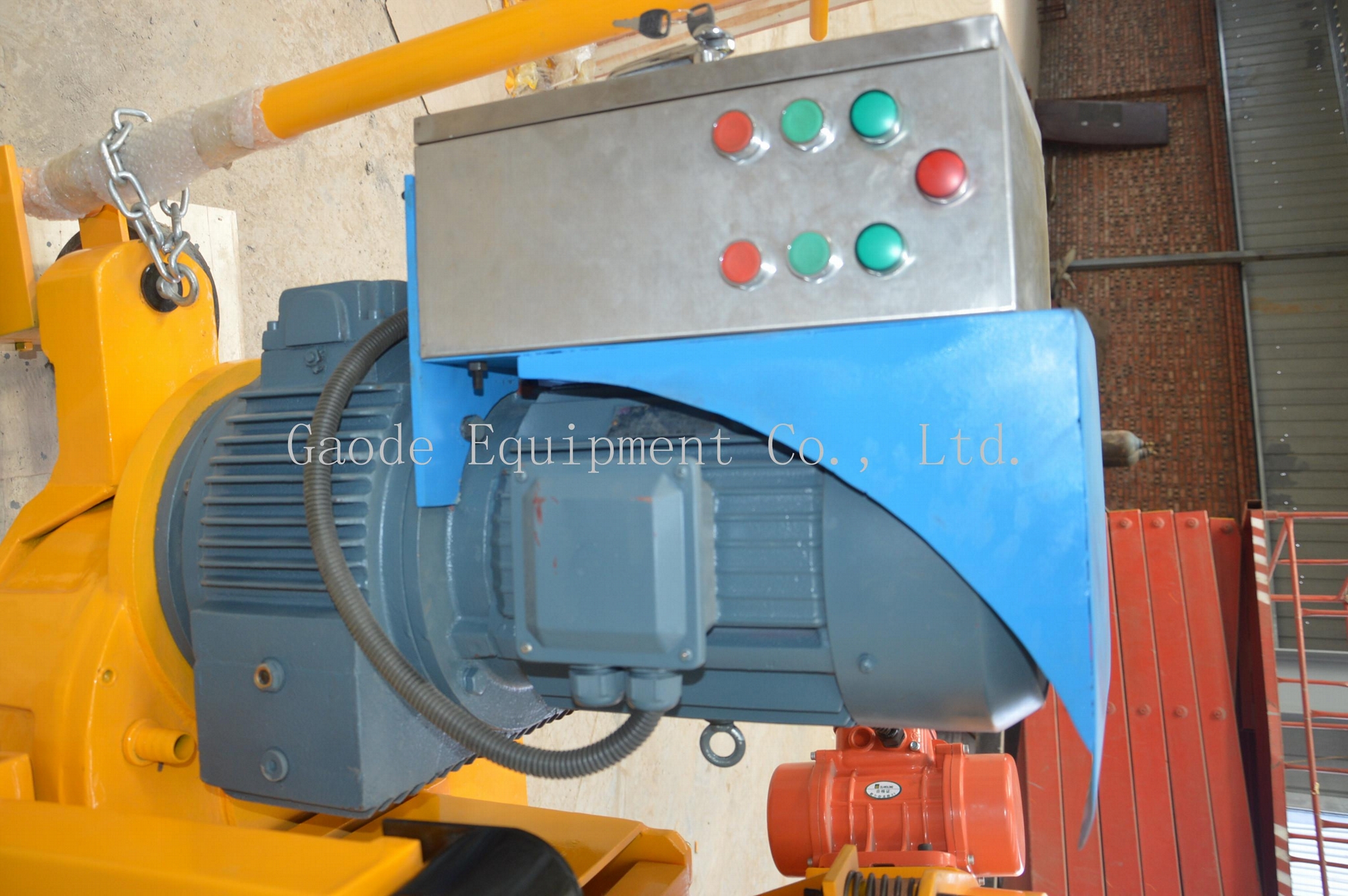

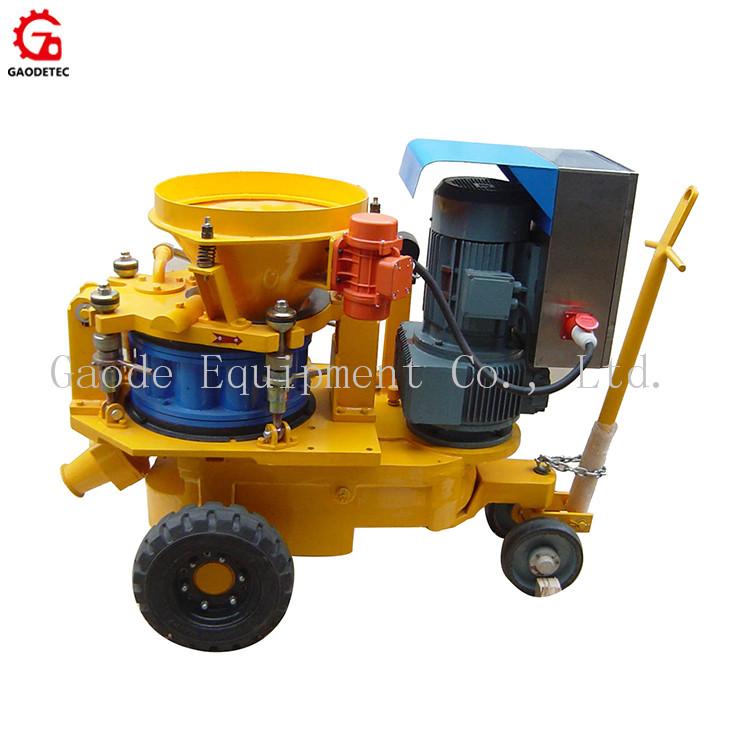

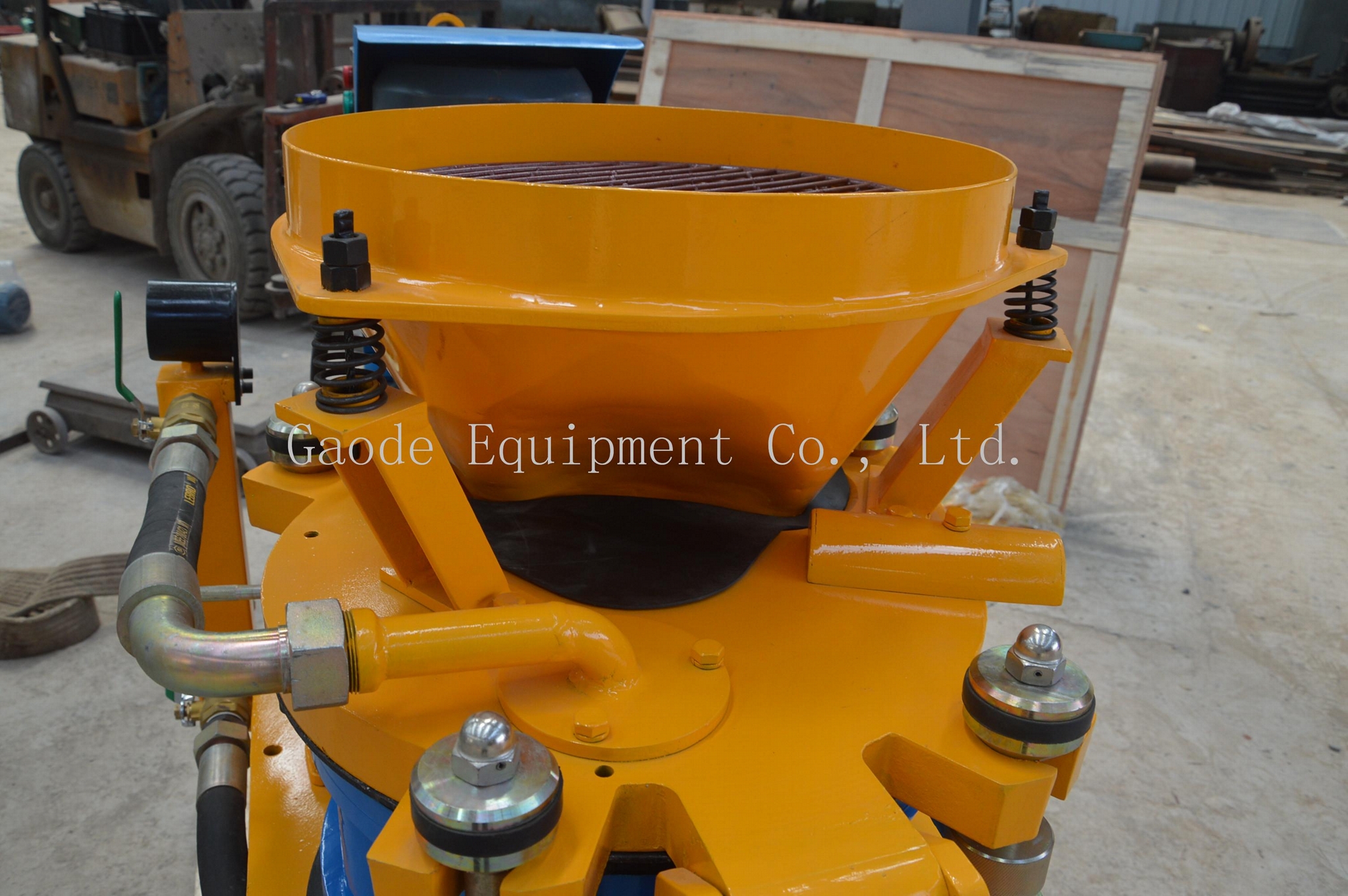

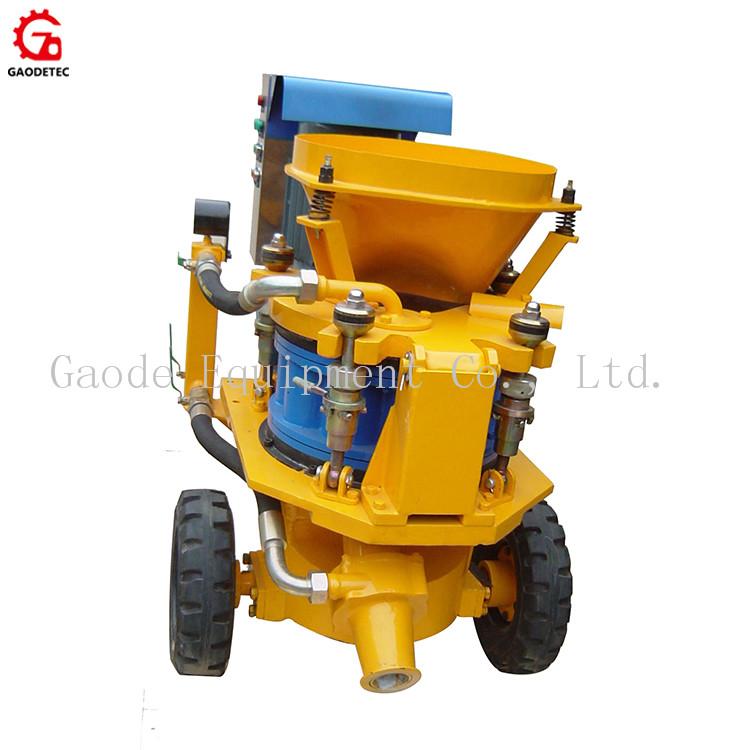

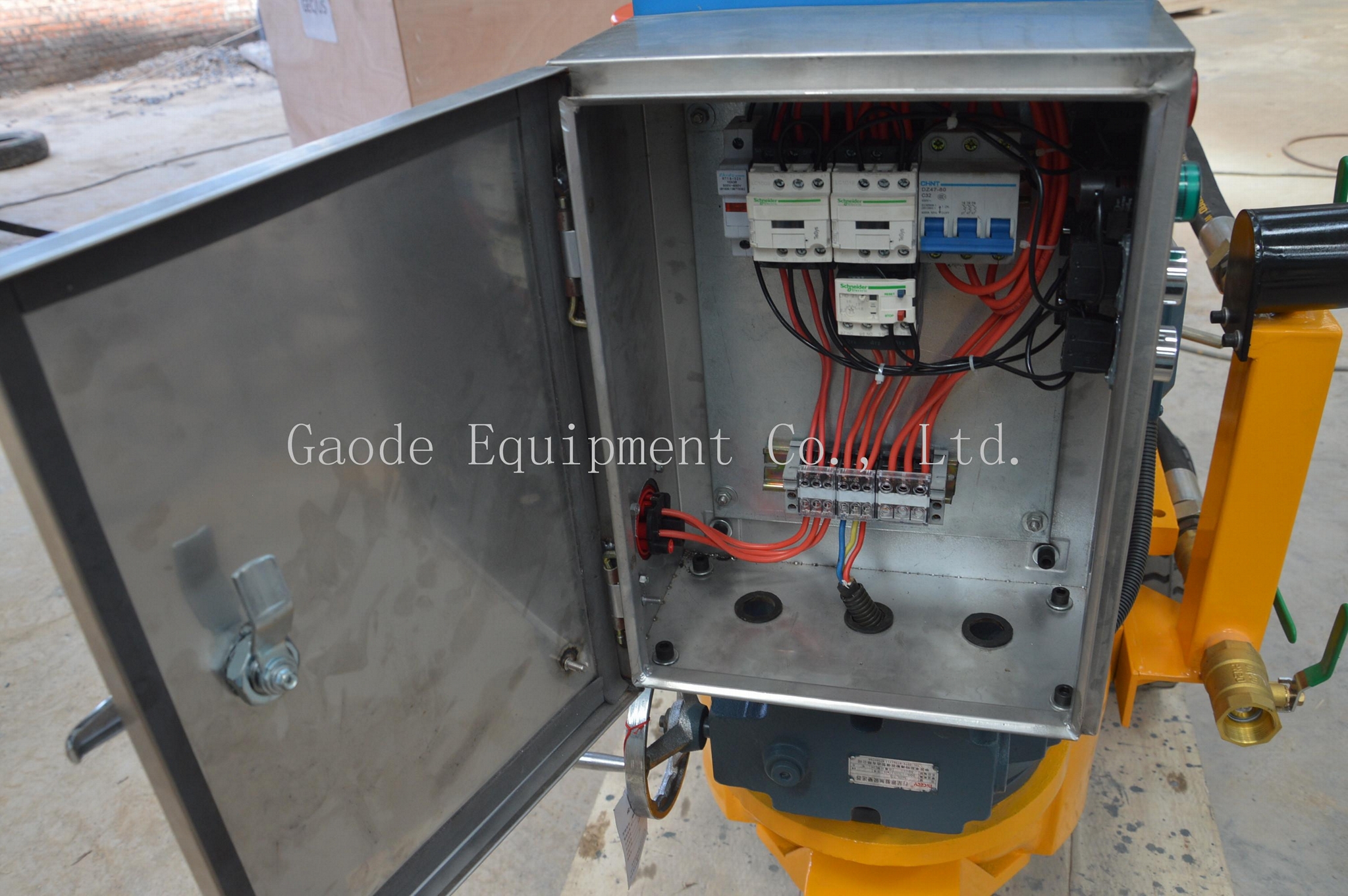

Product Image

gunite machine
gunite machine

gunite machine
gunite machine

gunite machine
gunite machine

gunite machine
gunite machine

gunite machine
gunite machine

gunite machine
gunite machine

gunite machine
gunite machine

gunite machine
gunite machine

gunite machine
gunite machine

gunite machine
gunite machine

gunite machine
gunite machine
