QYC270 Front End Prestressed Tensioning PC Strands Hydraulic Cylinder

 Prestressed Tensioning PC Strands Hydraulic Cylinder
  •  Prestressed Tensioning PC Strands Hydraulic Cylinder
  • PC Strands Hydraulic Cylinder
  •  Prestressed Tensioning Hydraulic Cylinder
  •  Prestressed Strands Hydraulic Cylinder
  • multistrands tension hydraulic cylinder
  • tension hydraulic cylinder
Model No.︰QYC
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 375 / set
Minimum Order︰1 set
Share on:

 Total 29 Related Items
Prev2021222324Next

Product Description

QYC270 Front End Prestressed Tensioning PC Strands Hydraulic Cylinder

1. Descriptions:

1. QYC front-end fixed hydraulic cylinder have internal re-usable anchor which can automatically clamp and loosen the wedge.

2. They are mainly used for GYM15 and GYM13- type various single tensioning with bonded and unbonded prestressed cable.

3. Notice: QYC type front-end fixed cylinder could be matched with different size, length of the top cover, retreat anchor device, to be used in the experiment by root tension pre-tightening, tension retreat anchor and stay cable tone with single cable.

4. We can manufacture all kinds of anchor and equipment according to your requirement and drawings.

2. Applications:

It is matched with prestressed anchorage widely used in the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering .

3. Features:

1. Using the new seals, to synchronous strengthen the seal-ability under great pressure.

2. Using special alloy steel with heat treatment process, reducing the cylinder's expansion ratio in the tensioning process. So the life of seals and sealing performance can be improved about 20%.

3. In the tensioning the operating process, jacks is easily damaged under overpressure because of the jack-based pullback cylinder, so we added the overpressure valve on the jacks to pressure production. Meanwhile we improved the original of commonly used structure by wire disc and flanged disc, to make the bearing capacity for oil pressure strengthen. So enormously reduce the possibility of mechanical damage due to improper operation.

Notice: according to users' requirement, prestressed concrete jack for anchors and pc strand can be configured

4. Technical data:

   Parameter table of QYC series of mono strand hydraulic cylinder

Model

Nominal

Diameter of

Area of

Stroke of

Rated oil pressure

Overall

Minimum

The reserved

tensioning

minimum

stressing

stressing

dimension

working

length



center  hole

cylinder





space(mm)

of strand

KN

mm

mm²

mm

Mpa

out diameter(mm)

length(mm)

L

E

mm

QYC70

74

10

1437

150

50

63

296

616

54

120

QYC240

240

18

4009

200

60

102

425

825

86.7

200

QYC270

270

18

4415

200

61

105

427

827

89

200

QYC1100

1100



22619

200

49

265

336







QYC2000

2000



42332

200

48

355

386









Payment Terms︰TT/LC/cash/credit card

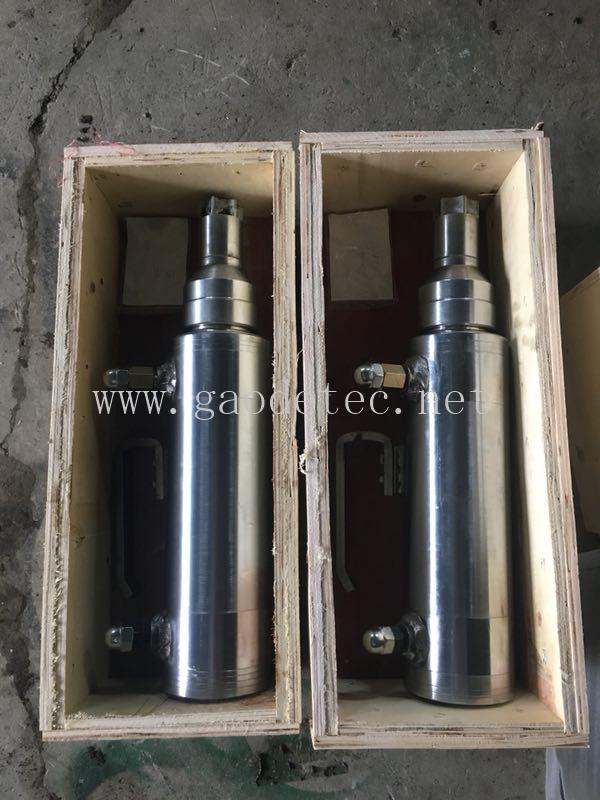

Packing︰wooden cases
Lead Time︰in stocks
Standards Certificate︰CE ISO

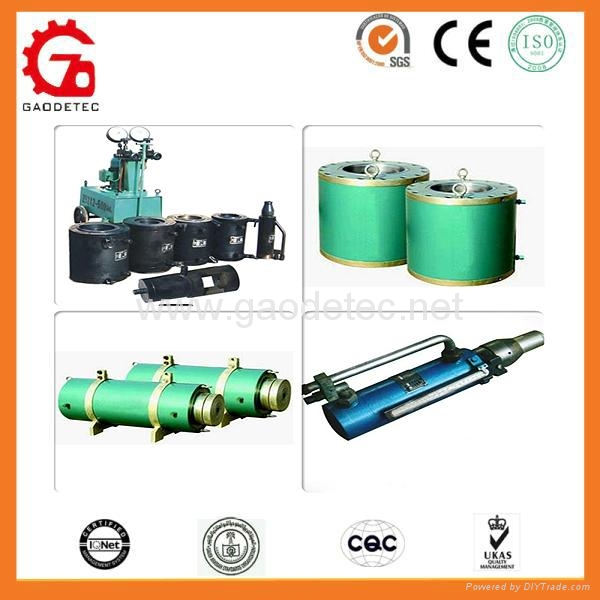

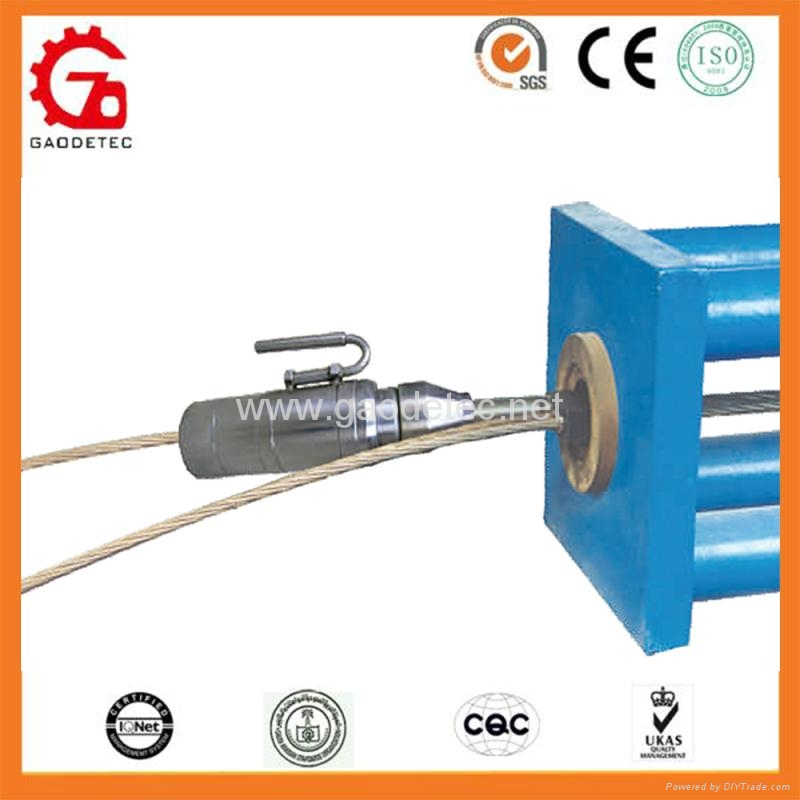

Product Image

 Prestressed Tensioning PC Strands Hydraulic Cylinder
Prestressed Tensioning PC Strands Hydraulic Cylinder

PC Strands Hydraulic Cylinder
PC Strands Hydraulic Cylinder

 Prestressed Tensioning Hydraulic Cylinder
Prestressed Tensioning Hydraulic Cylinder

 Prestressed Strands Hydraulic Cylinder
Prestressed Strands Hydraulic Cylinder

multistrands tension hydraulic cylinder
multistrands tension hydraulic cylinder

tension hydraulic cylinder
tension hydraulic cylinder
