Product Description

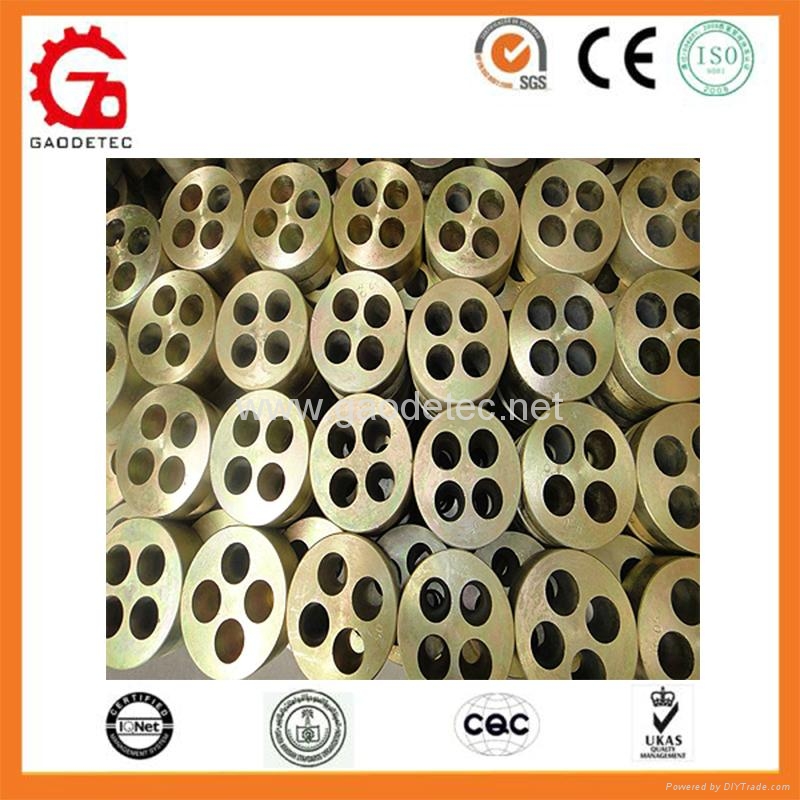

Prestressed Concrete Post Tension Round Anchor

1. Descriptions

1. Type: Single-hole, Multi-hole; Circular, Flat.

2. Parts: Anchor Ring/Plate, Wedge, Base Plate etc.

3. Have a high anchor efficiency and very good performance

4. Post tensioning and prestressing use

5.  We can manufacture all kinds of anchorage and prestressed equipment according to your requirement and drawings.

2. Applications:

Prestressed Anchorage system is a completed, independent building measure researched, it has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, etc.

3. Features:

GYM anchorage system is consists of stressing-end anchorage, fixed-end anchorage, couple and corrugated pipe. It can be divided into GYM10, GYM11, GYM13, GYM15, GYM18, GYM22 series of round anchors and GBM15, GBM13 series of flat anchors. Please see the follows:

1. GYM15 applies to 15.2/15.24mm, 15.7mm pc strand.

2. GYM13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.

3. GYM10 applies to 9.3mm, 9.53mm pc strand.

4. GYM11 applies to 10.8mm pc strand.

5. GYM18 applies to 17.8mm pc strand.

6. GYM22 applies to 21.6/21.8mm pc strand.

4. Technical data:

Model

Anchor Head

Anchor Plate

Corrugated Pipe I.D.

Spiral Reinforcement/Bar

Matched Tension Jack Model

ØD

B

A

L

ØC

ØG

H

Ød

n

GYM15(13)-1

48

(40)

50

(50)

90

(90)

35

(35)



80(85)

30(35)

6

4(4)

QYC270

GYM15(13)-2

94

(80)

50

(50)

135

(120)

110

(110)

45(40)

120(110)

40(50)

8(8)

3(3)

YDC650

(YDC650)

GYM15(13)-3

94

(80)

50

(40)

135

(120)

110

(120)

50(50)

130(130)

50(50)

10(8)

4(3)

YDC1000

(YDC650)

GYM15(13)-4

98

(85)

50

(50)

150

(135)

120

(120)

50(50)

150(150)

50(50)

14

(10)

4(4)

YDC1500

(YDC650)

GYM15(13)-5

108

(94)

50

(55)

180

(150)

130

(120)

55(50)

170(160)

50(50)

14

(14)

4(4)

YDC1500

(YDC1500)

GYM15(13)-6,7

127(108)

50

(55)

190

(165)

160

(150)

70(60)

200(190)

50(50)

14

(14)

4(5)

YDC2000

(YDC1500)

GYM15-8

137

60

230

180

80

240

60

16

5

YDC2000

GYM15(13)-9

154

(128)

60

(60)

240

(180)

190

(160)

80(60)

240(220)

60(50)

16

(16)

5(5)

YDC2500

(YDC1500)

GYM15(13)-10

167

60

250

210

80

270

60

16

6

YDC2500

GYM15(13)-11/12

167

(148)

60

(60)

260

(215)

210

(190)

90(80)

270(240)

60(60)

16

(16)

6(5)

YDC3000

(YDC2000)

GYM15-14/15

187

65

270

220

90

310

60

18

6

YDC3500

GYM15-16

207

65

290

250

90

330

60

18

6

YDC4000

GYM15(13)-19

207

(178)

70

(65)

310

(270)

265

(260)

100(90)

350(310)

60(60)

18

(18)

7(6)

YDC5000

(YDC3000)

GYM15(13)-22

227

(188)

70

(65)

380

(290)

265

(260)

120(100)

380(330)

60(60)

20

(18)

7(6)

YDC5000

(YDC3000)

GYM15(13)-24

237

(208)

75

(75)

380

(300)

380

(270)

120(100)

380(340)

60(60)

20

(18)

7(6)

YDC6500

(YDC4600)

GYM15(13)-25,27

247

(208)

90

(80)

380

(320)

300

(280)

120(100)

400(360)

60(60)

20

(18)

7(6)

YDC6500

(YDC4600)

GYM15(13)-31

277

(238)

90

(90)

390

(340)

355

(320)

130(105)

450(380)

70(60)

22

(20)

8(6)

YDC6500

(YDC4600)

GYM15(13)-37

287

(238)

100

(100)

430

(370)

435

(370)

140(120)

500(430)

70(70)

22

(22)

8(6)

YDC8000

(YDC6500)

GYM15(13)-42

268

100

395

380

130

450

70

22

7

YDC10000

GYM15(13)-44

327

110

460

465

160

550

70

22

8

YDC10000

GYM15(13)-55

360

(298)

120

(110)

530

(460)

515

(460)

160(140)

630(510)

70(70)

25

(22)

9(7)

YDC12000

(YDC10000)
