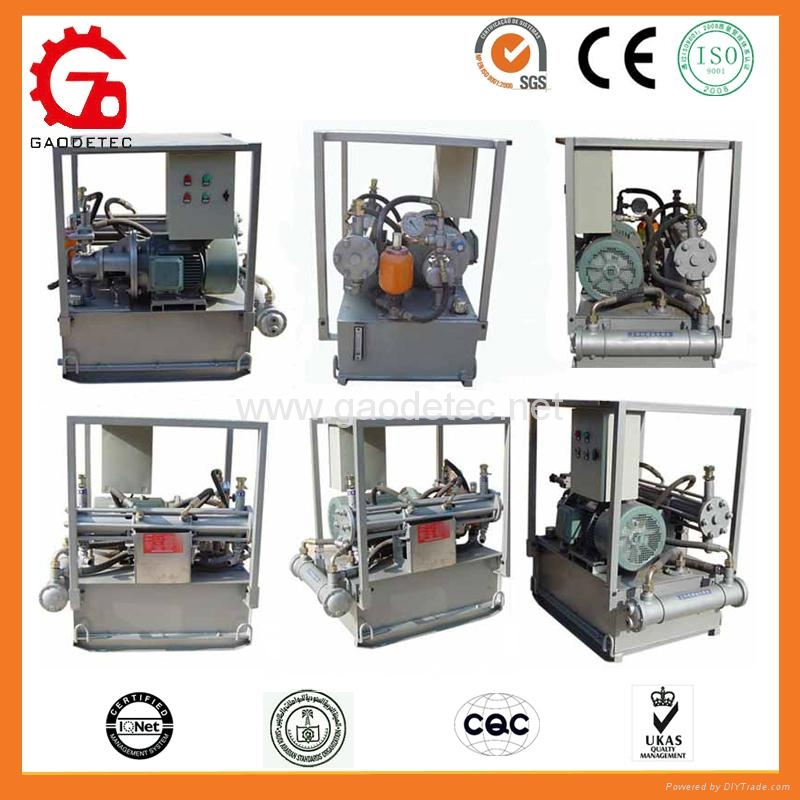

GH-H Series Hydraulic Grouting Pumps
Please copy the link to the product website for more products and information
Our website: www.gaodetec.net
Description:
GH-H series dual cylinders and single action hydraulic grouting pump is suitable for grouting plugging project of high pressure and large displacement. This pump transmits pressure signals by working medium (slurry and hydraulic oil) to form closed-loop automatic control function, therefore the pump is simple in structure, can regulate timely and accurately, and has no overpressure problem. This pump can adjust its output and working pressure by continuously Variable adjustment, this pump can grout simple-liquid, and chemical grout.
Technical data:
|
Power(KW)
|
Overall Dimension
|
Weight
|
Aggregate
|
Pump Slurry Ratio
|
Hydraulic oil tank
|
|
11, 15
|
1.0×1.0×0.98m
|
420kg
|
≤Φ3mm
|
0.5:1～1:1(W/C)
|
100L
|
|
Power(KW)
|
Model
|
Output(L/Min)
|
Pressure(Mpa)
|
|
11
|
GH110/4-11H
|
≤110
|
≤4
|
|
GH80/5.6-11H
|
≤80
|
≤5.6
|
|
GH50/7-11H
|
≤60
|
≤7
|
|
15
|
GH110/5.6-15H
|
≤110
|
≤5.6
|
|
GH80/8-15H
|
≤80
|
≤8
|
|
GH60/10-15H
|
≤60
|
≤10
|
Contact Supplier：
Many thanks for visiting our web, we can supply grout pump for you. Before we send quotation, please let me know the following question:
1. What's pressure and flow of the pump you need ?
2. The water cement ratio, any sand in ?
3. About the power: electric (voltage and frequency) or diesel or air motor ?
We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.
