GH76-770B hose grout pump for pumping cement

concrete hose pump
  • concrete hose pump
  • concrete hose pump application
  • squeeze pump
  • concrete hose pump
  • squeeze pump
  • GH76-770B  hose grout pump for pumping cement
  • GH76-770B  hose grout pump for pumping cement
  • GH76-770B  hose grout pump for pumping cement
  • GH76-770B  hose grout pump for pumping cement
  • GH76-770B  hose grout pump for pumping cement
Model No.︰GH76-770B
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 7000 / set
Minimum Order︰1 set
Share on:

 Total 35 Related Items
Prev2930313233Next

Product Description

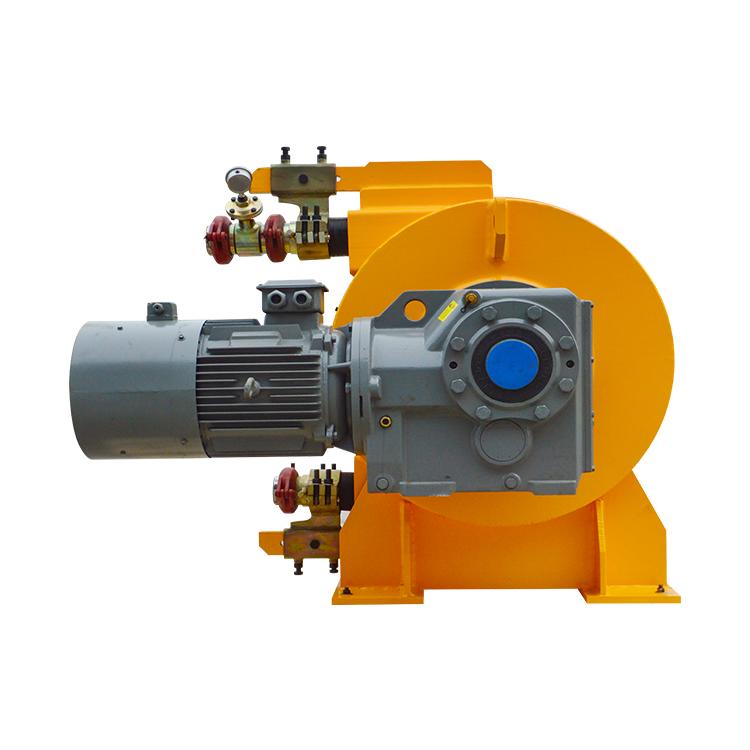

GH76-770B  hose grout pump for pumping cement

GH76-770B heavy- duty industries hose pump (squeeze pump) is a kind of peristaltic pump. Max. Output is 20m3/h, the working pressure is 7.5bar.

An elastomeric tube is squeezed along a length by rollers. The tube's restitution after squeezing produces a vacuum that draws fluid continuously into the tube. That doesn't cause any damage to the product. And contaminations are avoided.

In building construction, more widely used for pumping foam concrete, lightweight form concrete, mortar, cement slurry and refractory materials.



Please copy the link to the product website for more products and information

Our website: www.gaodetec.net



Working principle:

GH series industrial hose grout pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

Application:

Since 1998, we have become main supplier of pump head for one of world’s famous hose pump manufacturer. From recent years, we are also providing matched hose pumps for TBM machine manufacturer in China. Our hose pumps are widely applied in architecture, underground construction, petrochemical industry, metallurgy, food industry, ceramic, mining, water treatment, pharmacy, and papermaking.



Advantages:

No seals

No valves

Self -priming

Only tube to replace

Dry –running without damage

Reversible

No contact between product and mechanical parts

Able to pump products with solid parts inside

Easy maintenance, low-cost, short down time

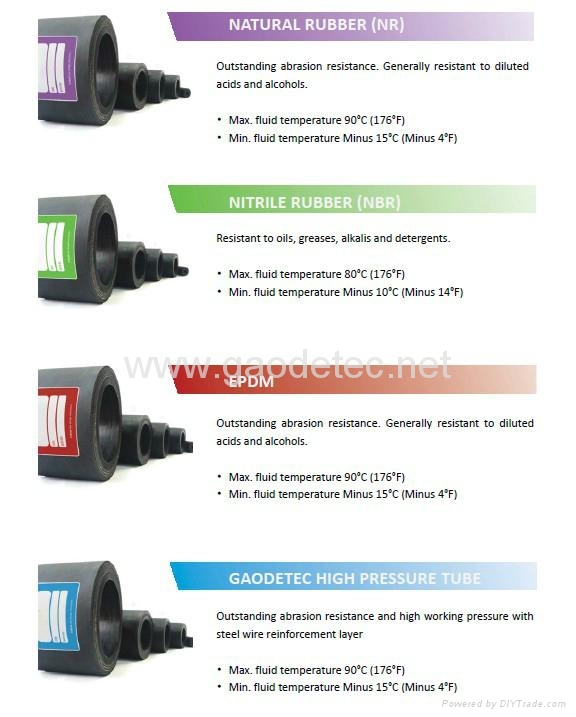

Gaodetec Tube:

High quality precision made hose pump tube, using the very highest quality compounded rubber materials on the market, re-enforce with multi-layers of braided nylon & a manufacturing process that ensures precise and constant dimensional tolerances at every point to the entire length of the hose.

This high level of attention provides a finished hose product that delivers very high life & outstanding performance.



Contact Supplier:

We are the industrial hose pump factorywe can customize according to your requirements. If you have any questions, please contact us and we will provide you with the corresponding product parameters and quotations.

1. What is the project with our peristaltic pump, is it for pumping concrete or others?

2. What is the pressure and output you require?

3. What is the local voltage you require, here the voltage 380V, 50HZ, 3phase, is it ok for you?

4. What is max. aggregate size in the slurry?











Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customised.
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

concrete hose pump
concrete hose pump

concrete hose pump application
concrete hose pump application

squeeze pump
squeeze pump

concrete hose pump
concrete hose pump

squeeze pump
squeeze pump
