GH76-770B peristaltic pump

peristaltic hose pum
  • peristaltic hose pum
  • concrete hose pump
  • concrete hose pump
  • peristaltic hose pum
  • grout hose pump
  • hose pump
  • peristaltic hose pum
  • concrete hose pump
Model No.︰GH76-770B
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 7500 / set
Minimum Order︰1 set
Share on:

 Total 35 Related Items
Prev2829303132Next

Product Description

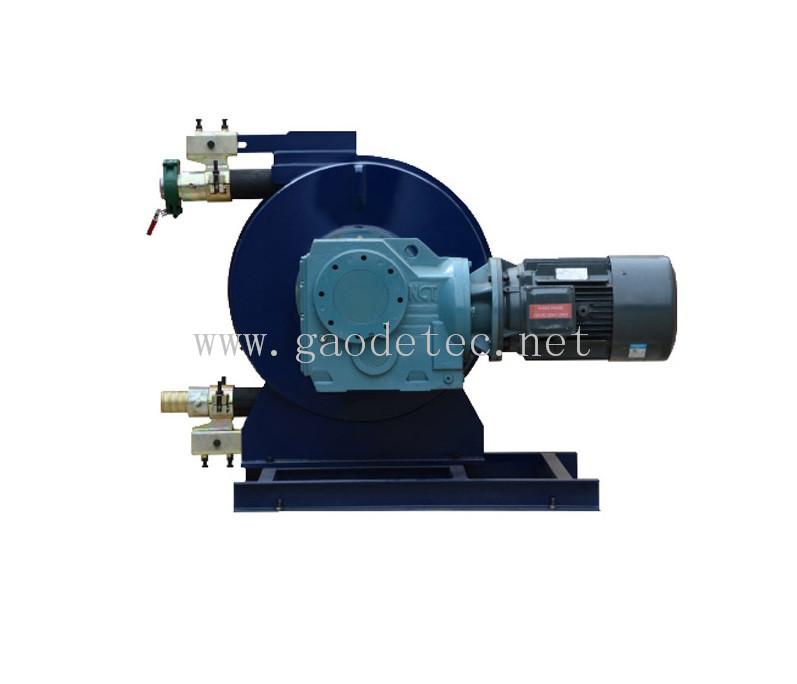

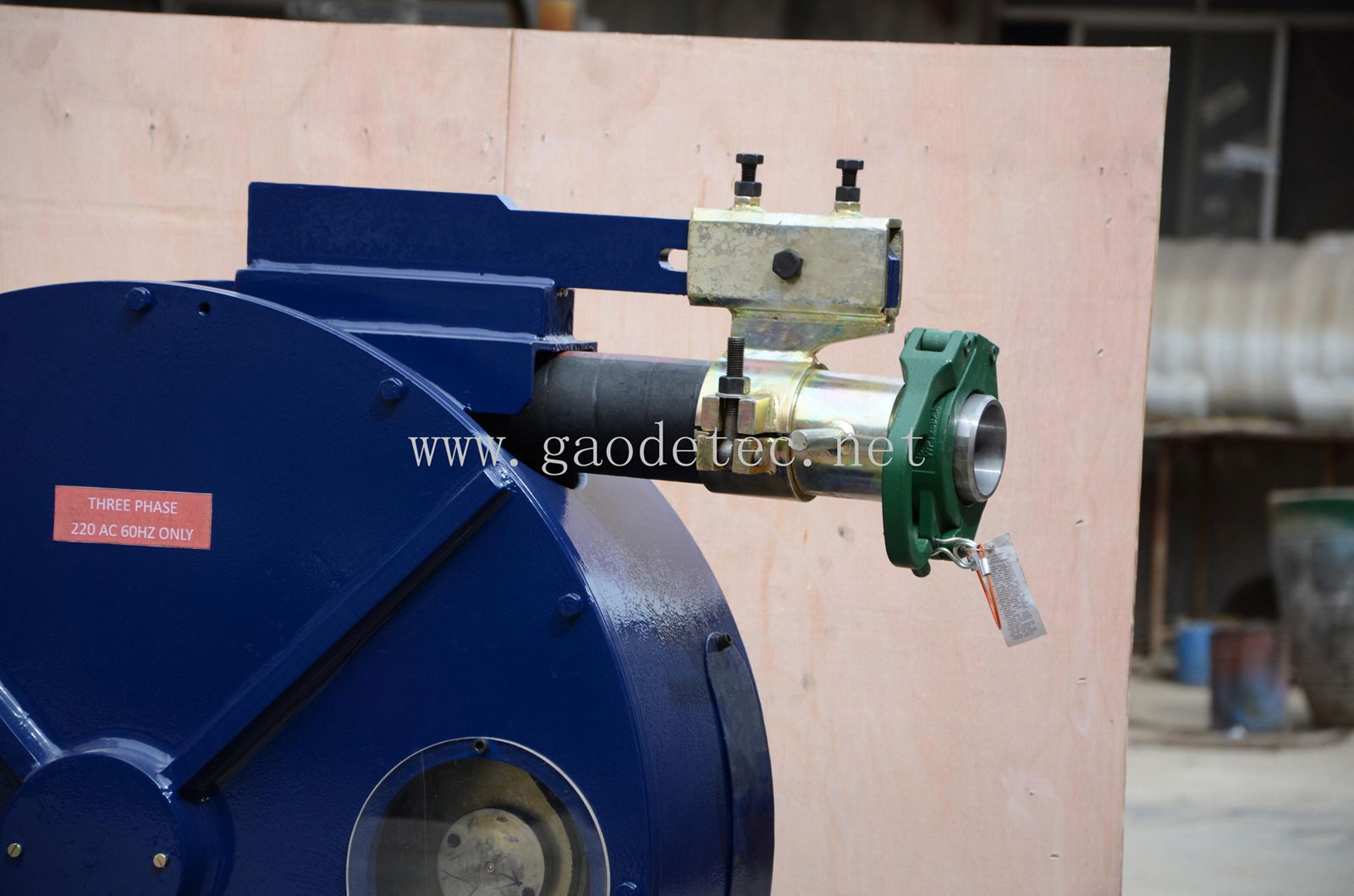

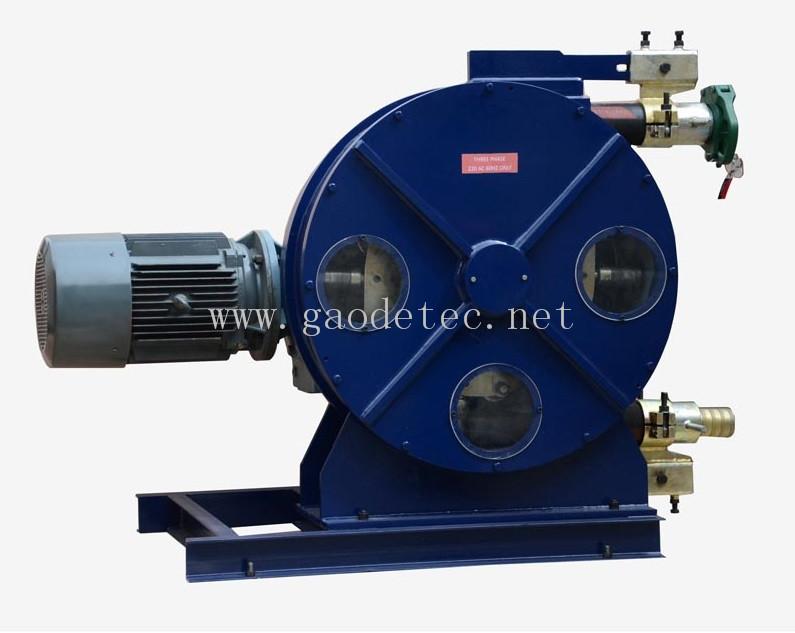

GH series industrial grout pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

Advantage:

No seals

No valves

Self -priming

Only tube to replace

Dry –running without damage

Reversible

No contact between product and mechanical parts

Able to pump products with solid parts inside

Easy maintenance, low-cost, short down time

Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

Technical data sheet:

Type

GH76-770B

Max. ouput

14m3/h

Rotation

35 RPM

Squeeze hose ID

76mm

Working pressure

25 bar

Voltage

3 phase, 220V, 60HZ

Power

18.5 KW



Application:

Since 1998, we have become main supplier of pump head for one of world’s famous hose pump manufacturer. From recent years, we are also providing matched hose pumps for TBM machine manufacturer in China. Our hose pumps are widely applied in architecture, underground construction, petrochemical industry, metallurgy, food industry, ceramic, mining, water treatment, pharmacy, and papermaking.



Contact Supplier:

We are the industrial hose pump factorywe can customize according to your requirements. If you have any questions, please contact us and we will provide you with the corresponding product parameters and quotations.

1. What is the project with our peristaltic pump, is it for pumping concrete or others?

2. What is the pressure and output you require?

3. What is the local voltage you require, here the voltage 380V, 50HZ, 3phase, is it ok for you?

4. What is max. aggregate size in the slurry?

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customised.
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

peristaltic hose pum
peristaltic hose pum

concrete hose pump
concrete hose pump

concrete hose pump
concrete hose pump

peristaltic hose pum
peristaltic hose pum

grout hose pump
grout hose pump

hose pump
hose pump

peristaltic hose pum
peristaltic hose pum

concrete hose pump
concrete hose pump
