hose pump for conveying and spraying of mortar and concrete

hose pump in stock
  • hose pump in stock
  • Pump for mortar
  • conveying pump
  • hose pump in stock
Model No.︰GH32-450C
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 7500 / pc
Minimum Order︰1 pc
Share on:

 Total 35 Related Items
Prev2223242526Next

Product Description

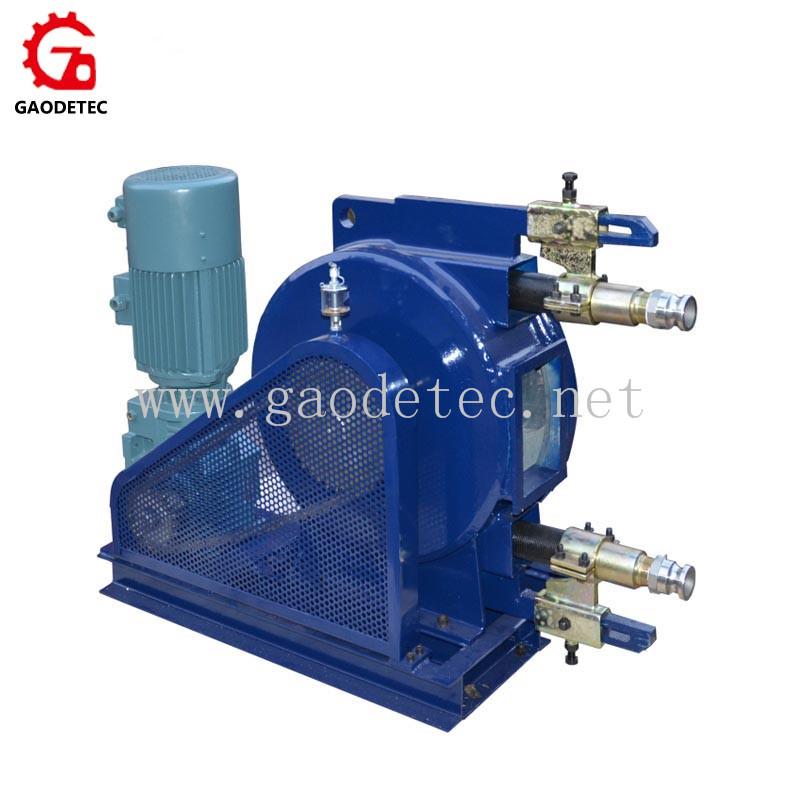

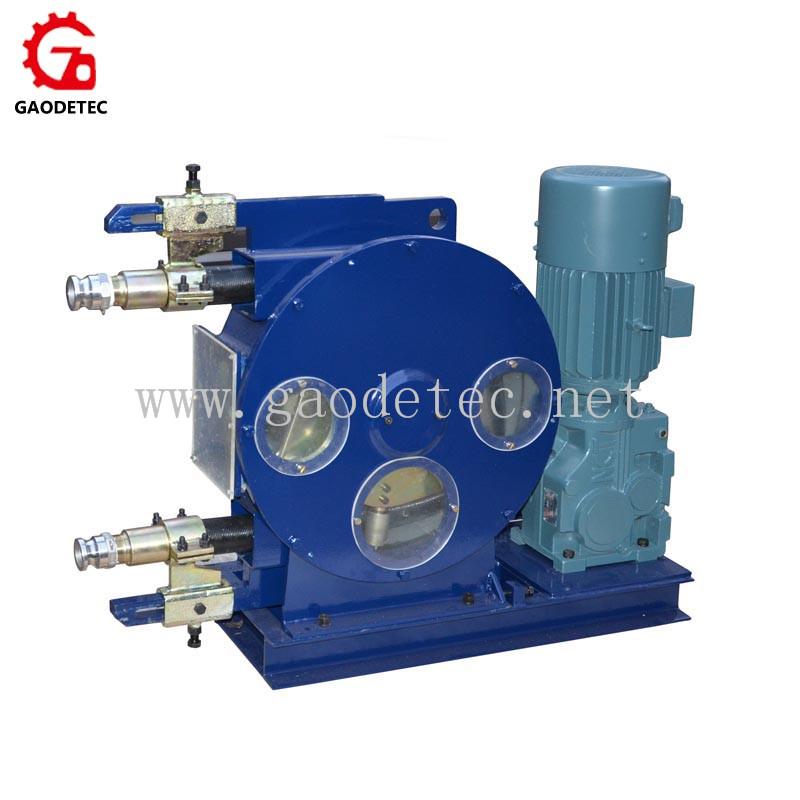

Hose pump for conveying and spraying of mortar and concrete

Please copy the link to the product website for more products and information

Our website: www.gaodetec.net



GH32-445C Hose Pump Specification:

Type

GH32-450C

Max. ouput

30L/min ( at 0.3Mpa, 50HZ)

Rotation

36RPM

Squeeze hose ID

32mm

Max.  pressure

1.5Mpa

Voltage

3 phase, 380V, 50HZ

Power

3KW



Working principle:

GH series concrete hose pump (squeeze pump) consists mainly of pump hose, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.



Application:

Since 1998, we have become main supplier of pump head for one of world’s famous hose pump manufacturer. From recent years, we are also providing matched hose pumps for TBM machine manufacturer in China. Our hose pumps are widely applied in architecture, underground construction, petrochemical industry, metallurgy, food industry, ceramic, mining, water treatment, pharmacy, and papermaking.



Advantage:

No seals

No valves

Self -priming

Only tube to replace

Dry –running without damage

Reversible

No contact between product and mechanical parts

Able to pump products with solid parts inside

Easy maintenance, low-cost, short down time

Contact Supplier:

We are the industrial hose pump factory, we can customize according to your requirements. If you have any questions, please contact us and we will provide you with the corresponding product parameters and quotations.

1. What is the project with our peristaltic pump, is it for pumping concrete or others?

2. What is the pressure and output you require?

3. What is the local voltage you require, here the voltage 380V, 50HZ, 3phase, is it ok for you?

4. What is max. aggregate size in the slurry?



Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customised.
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

hose pump in stock
hose pump in stock

Pump for mortar
Pump for mortar

conveying pump
conveying pump

hose pump in stock
hose pump in stock
