GDM 60/20E Medium-pressure jet grouting pumps

inject pumps
  • inject pumps
  • inject pumps
  • inject pumps
  • inject pumps
Model No.︰GDM60/20E
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 4000 / pc
Minimum Order︰1 pc
Share on:

 Total 33 Related Items
Prev1516171819Next

Product Description

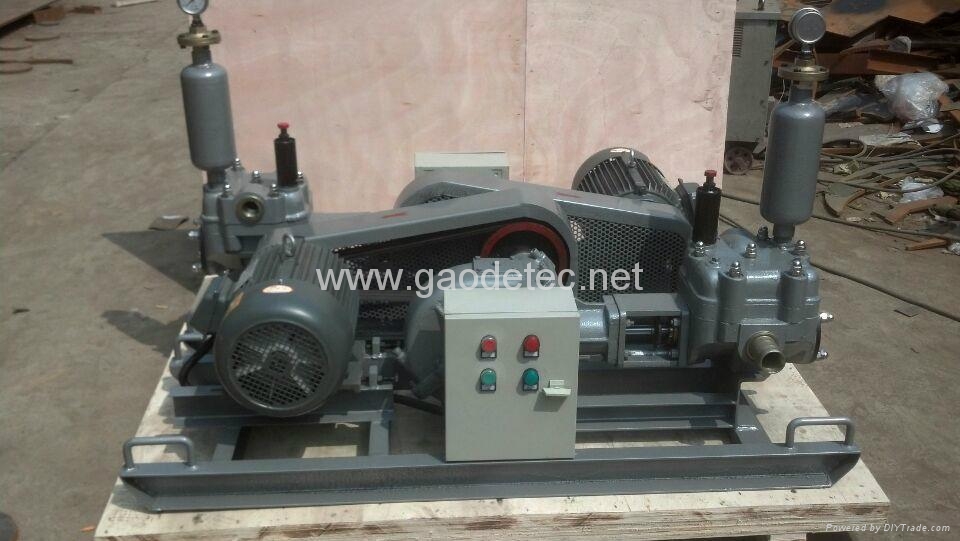

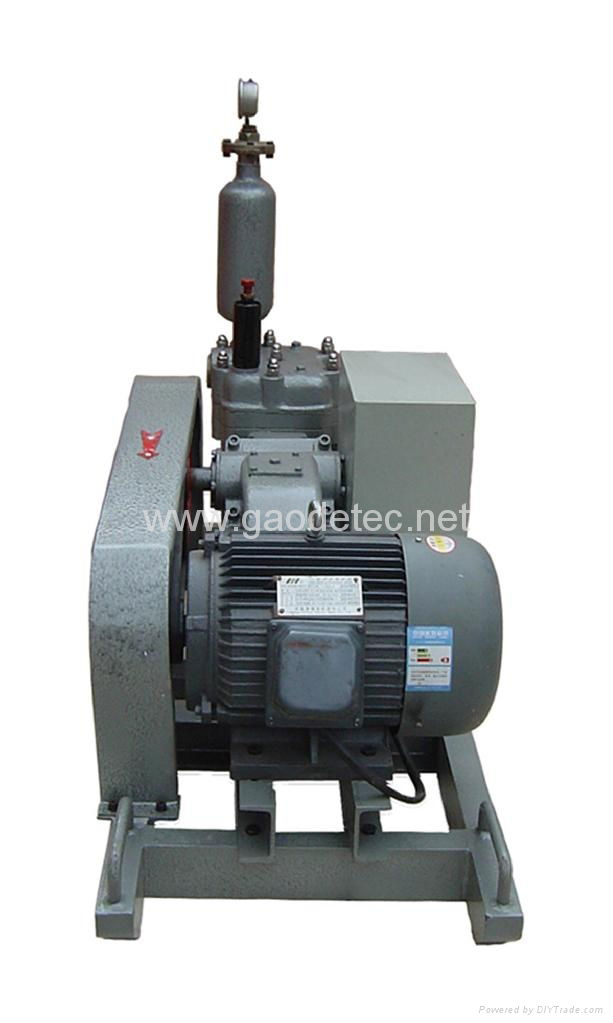

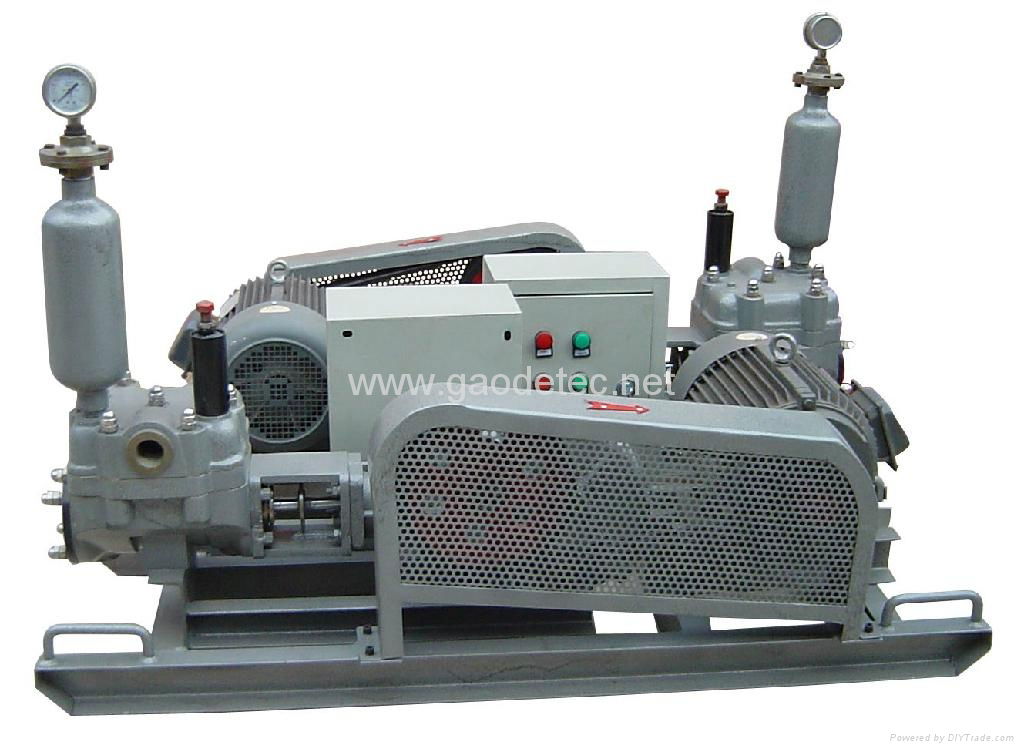

GDM60/20E Jet Grout Pump

Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

Describe:

GDM60/20E Grouting Pump is a single piston double-acting grouting pump with gear reducer, which is a universal medium-pressure grouting pump. It is used for grouting in soil nails, earth anchors, cable and rock bolts, void fillings, dam foundations, foundation stabilization, tunnel lining, slope line grouting. The grouting pump is ideal for grouting-process in underground and civil applications.

Features:

∙Single Piston with double outing‐acting
∙Gear reducer with electric motor drive
∙Ball valve
∙Compact size
∙High‐strength aluminum casting pump house

Technical data:

Rated Output

60L/min

Rated Pressure

2MPa(20bar/290psi)

Cylinder Dia.

75mm

Piston Stroke

85mm

Stroke/Minute

83/min

Inlet diameter

51mm

Outlet diameter

38mm

Power unit

5.5KW(Electric)

Transmission

V-belt+gearbox

Chassis

Skid

Weight

230kg

Overall Dimensions

1450x550x950(mm)

 Contact Supplier:

Many thanks for visiting our web, we can supply grout pump for you. Before we send quotation, please let me know the following question:


1. What's pressure and flow of the pump you need ?
2. The water cement ratio, any sand in ?
3. About the power: electric (voltage and frequency) or diesel or air motor ?


We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.









Payment Terms︰T/T L/C
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

inject pumps
inject pumps

inject pumps
inject pumps

inject pumps
inject pumps

inject pumps
inject pumps
