GH-H series grout pumps for grouting plugging project

grout pumps for plug
  • grout pumps for plug
  • grout pumps for plug
  • grout pumps for plug
  • grout pumps for plug
  • grout pumps for plug
Model No.︰GH-H
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 5000 / pc
Minimum Order︰1 pc
Share on:

 Total 33 Related Items
Prev1213141516Next

Product Description

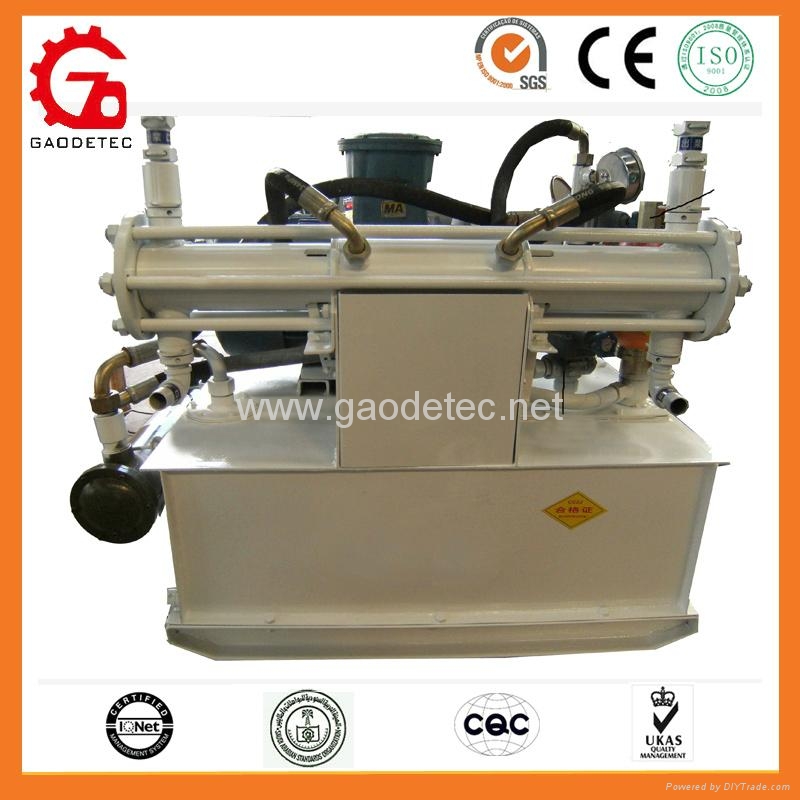

GH-H Series grouting pumps for grouting plugging project

Describtion:

GH-H series dual cylinders and single action hydraulic grouting pump is suitable for grouting plugging project of high pressure and large displacement. This pump transmits pressure signals by working medium (slurry and hydraulic oil) to form closed-loop automatic control function, therefore the pump is simple in structure, can regulate timely and accurately, and has no overpressure problem. This pump can adjust its output and working pressure by continuously Variable adjustment, this pump can grout simple-liquid, and chemical grout.

Technical data:

Power(KW)

Overall Dimension

Weight

Aggregate

Pump Slurry Ratio

Hydraulic oil tank

11, 15

1.0×1.0×0.98m

420kg

≤Φ3mm

0.5:1~1:1(W/C)

100L

Power(KW)

Model

Output(L/Min)

Pressure(Mpa)

11

GH110/4-11H

≤110

≤4

GH80/5.6-11H

≤80

≤5.6

GH50/7-11H

≤60

≤7

15

GH110/5.6-15H

≤110

≤5.6

GH80/8-15H

≤80

≤8

GH60/10-15H

≤60

≤10

 Contact Supplier:

Many thanks for visiting our web, we can supply grout pump for you. Before we send quotation, please let me know the following question:


1. What's pressure and flow of the pump you need ?
2. The water cement ratio, any sand in ?
3. About the power: electric (voltage and frequency) or diesel or air motor ?


We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.

Payment Terms︰T/T L/C
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

grout pumps for plug
grout pumps for plug

grout pumps for plug
grout pumps for plug

grout pumps for plug
grout pumps for plug

grout pumps for plug
grout pumps for plug

grout pumps for plug
grout pumps for plug
