Customized GDS1500G for pumping wet cellular light concrete

Gasoline wet concrete pump to Japan
  • Gasoline wet concrete pump to Japan
  • gasoline engine  for wet cellular light concrete pump
  • hose pump head for wer cellular light concrete pump
  • spare parts for wet cellular concrete pump
  • Other application of the cellular light  wet concrete pump
Model No.︰GDS1500G
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 7190 / set
Minimum Order︰1 set
Share on:

 Total 11 Related Items
Prev45678Next

Product Description

customized GDS1500G wet cellular light concrete

Wet Cellular Light Concrete Pump Description

The GDS1500G is a gasoline-powered light weight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. The GDS1500G Direct Drive uses a Honda GX390 power pack, is skid mounted.

Wet Cellular Light Concrete Pump Feature

·   Highreliable direct drive planetary gearbox

·   Infinite speed variation

·   Easily operating on site work

·   Standard spare part supply

Wet Cellular Light Concrete Pump Technical Specification

Item Description
Pressure 1.5 Mpa
Output 1.5-3m3/h
Max. Aggregate 8mm
The Squeeze Hose ID 50mm
Conveying Hose ID 38mm
Squeeze pump GH50-455
Power Honda GX390 Gasoline engine
Overall Dimension 1900x850x1250mm
Hopper volume: 200 Liter
Oil tank 120 Liter
Weight 610kg
Requested air compressor 3m3/min, 0.5Mpa Pressure
Note: the Diesel engine or Electric motor is optional.

No.

Description

Qty.

Unit

Remarks

1

GDS1500 main machine

1

set

 Chinese squeeze hose  or Trelleborg squeeze hose

2

conveying hose, L10m

2

pcs

one2’’, one 1.5’’

3

reducer 2'/1.5'

1

pcs



4

1.5’’ shotcrete nozzle assy.

1

set



5

1.5’’nozzle tip

1

pcs



6

clamp

2

sets

one 2’’, one 1.5’’

7

clean ball

2

pcs

one 2’’ , one 1.5’'

8

accessories

1

Set





Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customised.
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

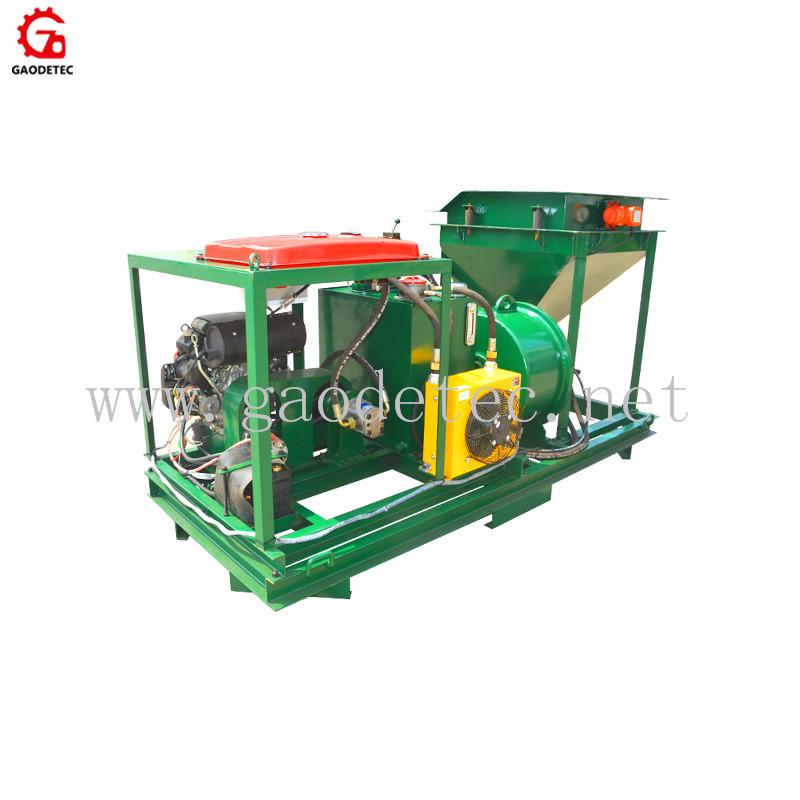

Gasoline wet concrete pump to Japan
Gasoline wet concrete pump to Japan

gasoline engine  for wet cellular light concrete pump
gasoline engine for wet cellular light concrete pump

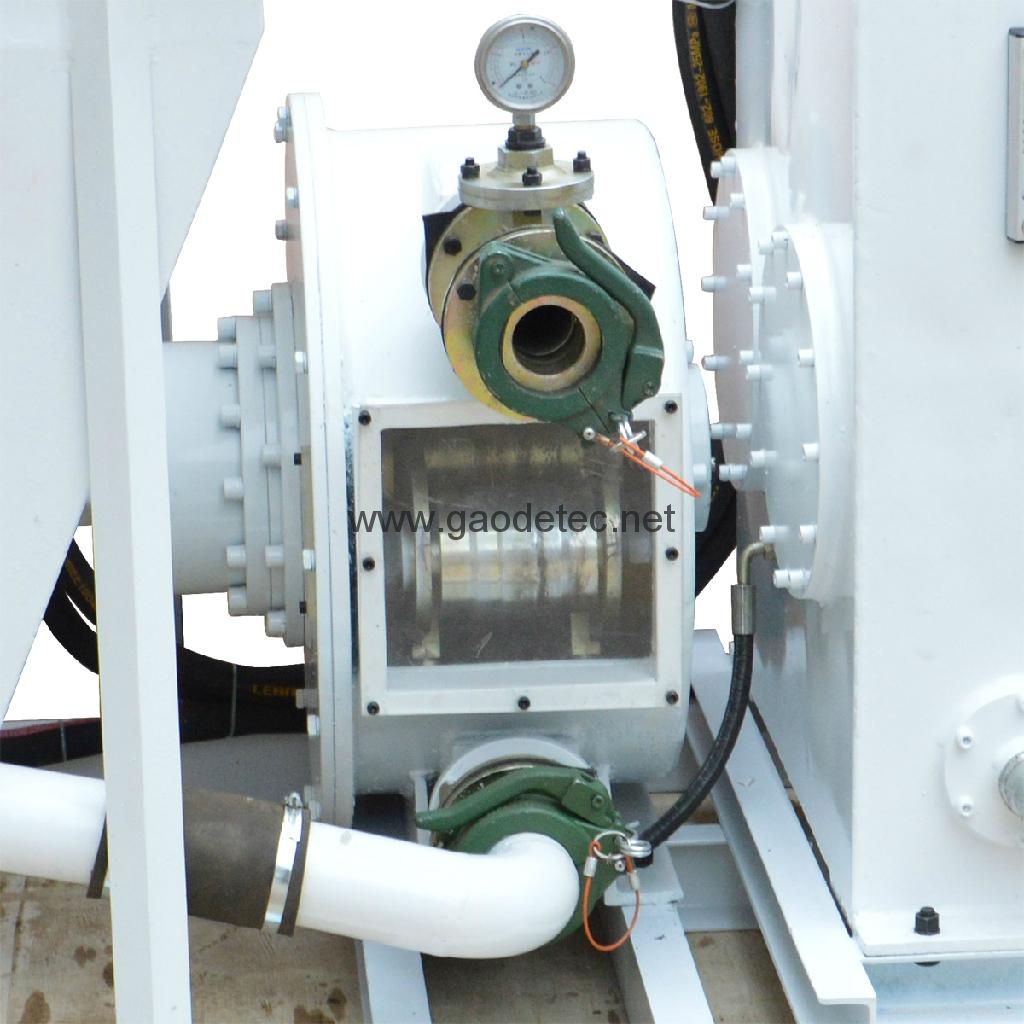

hose pump head for wer cellular light concrete pump
hose pump head for wer cellular light concrete pump

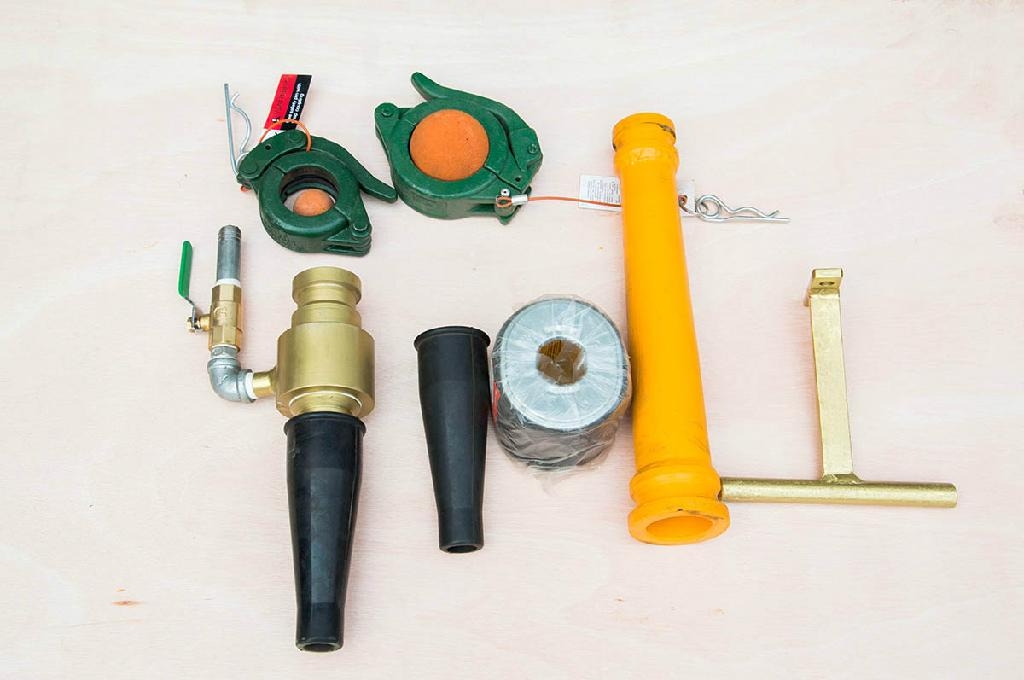

spare parts for wet cellular concrete pump
spare parts for wet cellular concrete pump

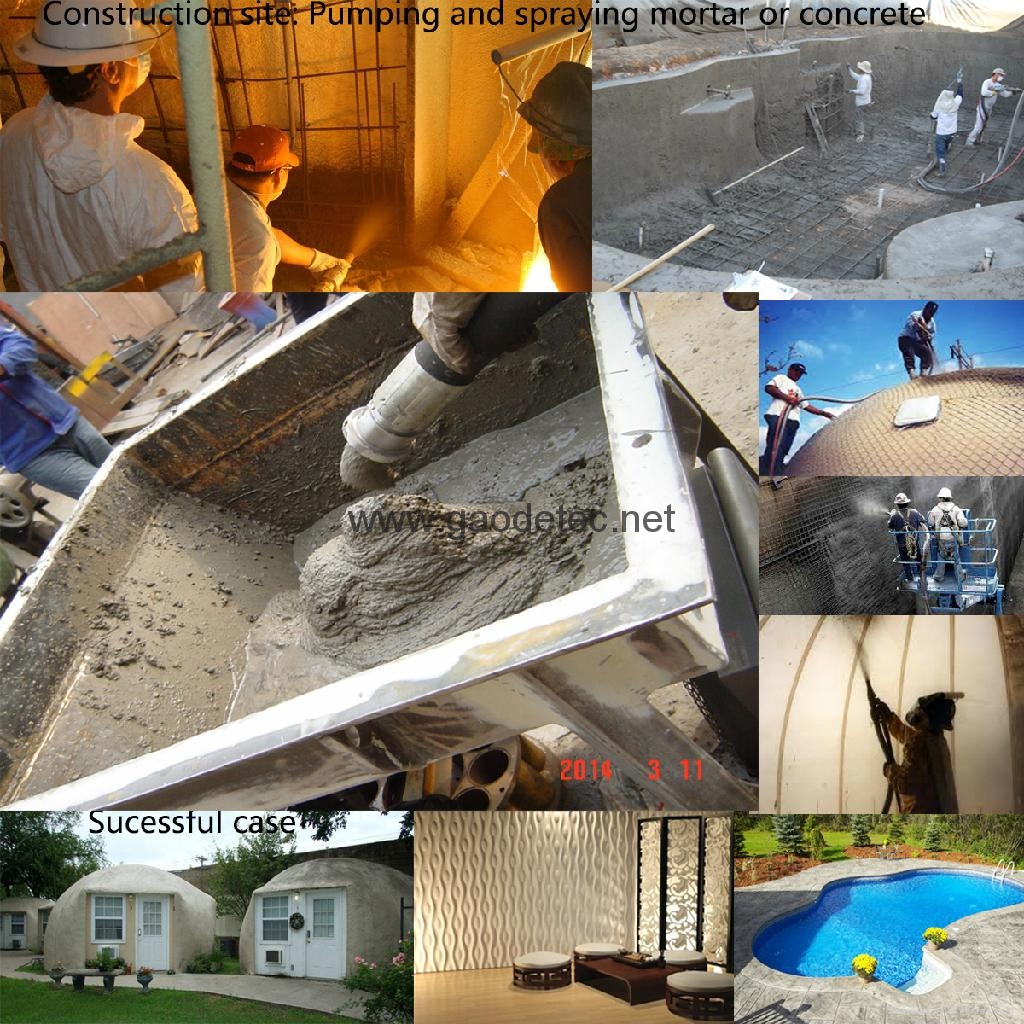

Other application of the cellular light  wet concrete pump
Other application of the cellular light wet concrete pump
