GD vibration road marking machines

vibrating road lining machine is working in China
  • vibrating road lining machine is working in China
  • Deliver road marking machine and thermoplastic heat kettle to customer
  • vibrate road marking machine for sale
  • main spare parts of vibrate road lining machine
Model No.︰GD
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 7500 / set
Minimum Order︰1 set
Share on:

 Total 13 Related Items
Prev910111213

Product Description

GD vibration marking machine

Description:

GD vibration marking machine adopts the programmable microcomputer control technology from Siemens, through Omron’s sensor passes on the accurate signal to the Microcomputer, then through the computer give order to the pneumatic cylinder, then realize the prominent marking and primer marking at the same time for just once; It also equipped with stepless speed changing system, it greatly promotes the construction efficiency and makes the marking accurately fit the shape height and space; Pneumatic cylinder from Comazzi and electronic valve ensure the long time working in high temperature.

The equipment has simple operation and high efficiency etc. It meets the requirement of various road condition and measures up to international norms. The road marks made by it can resist transformation, abrasion and strikes.

Features:

1. computer motherboards (SIEMENS Germany)

2. show controller (SIEMENS Germany)

3. main driving box of hydraulic movement (EATON USA)

4. gasoline (HONDA Japan)

5. pneumatic engine (Italy)

6.  electronic valve (Italy)

7. rotary encoder (Japan)

8. The wheels adopted pure rubber materials

The raised line features:

1. Compulsory deceleration: remind the driver to slow down in dangerous section such as turn and                                                        slopes.

2. Reminding by shakes: remind and warn the drivers who drive in fatigue or absent minded.

3. Glistening in rainy days: Mark driving safe with clearer visuality.

4. Anti-slippery: Magnify the friction with road and slow down the vehicle.



Application:

1. Express way: edge line of the express way, diversion line, decelerating line near the toll booth and turns in the road.

2. City road: edge line of the city road, double yellow line, cross road, sharp turn, entrance and exit of ramp, decelerating line in front of the gates of schools, enterprises and institutions.

3. National roads, provincial and country roads: continuous declivity slope section, sharp turn preparation section, decelerating line before divaricating road, edge line and single yellow line in all sections.

Technical data:

Coat capacity

120kg (60L)

Glass bead capacity

10kg

Engine

Honda liquid engine, OHV4 stoke

Engine power

163cc, 5.5HP

Fuel

Gasoline/petrol or liquid gas

Walk drive mode

Automatic oil and infinitely variable speed

Walk speed

≥400m/h

Max. slope allowed

15°

Height of projection

3-5mm

Width of marking

150/200/300mm

Dimension

1360*900*1100mm

Weight

265kg

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free fumigation, standard export packing. as shown below. Or customized
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

vibrating road lining machine is working in China
vibrating road lining machine is working in China

Deliver road marking machine and thermoplastic heat kettle to customer
Deliver road marking machine and thermoplastic heat kettle to customer

vibrate road marking machine for sale
vibrate road marking machine for sale

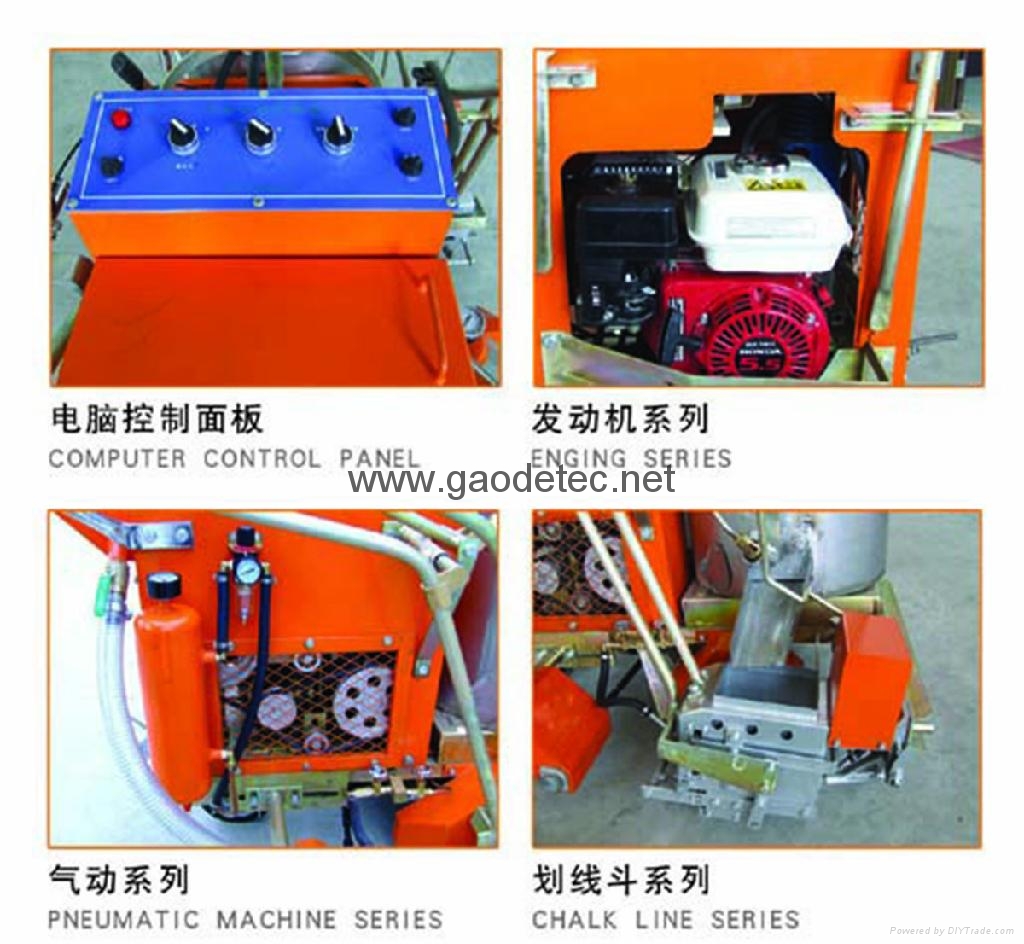

main spare parts of vibrate road lining machine
main spare parts of vibrate road lining machine
