Mechanical thermoplastic hot melt kettle made in China

GD300 Mechanical single cylinder thermoplastic kettle for sale
  • GD300 Mechanical single cylinder thermoplastic kettle for sale
  • GD600 Mechanical double cylinders thermoplastic pre-heater for sale
  • Mechanical thermoplastic hot melt kettle made in China
  • Mechanical thermoplastic hot melt kettle made in China
  • main spare parts of thermoplastic heat kettle
  • Deliver thermoplastic heat kettle and road marking machine to port to Malaysia
Model No.︰GD600
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 3100 / set
Minimum Order︰1 set
Share on:

 Total 14 Related Items
Prev1011121314Next

Product Description

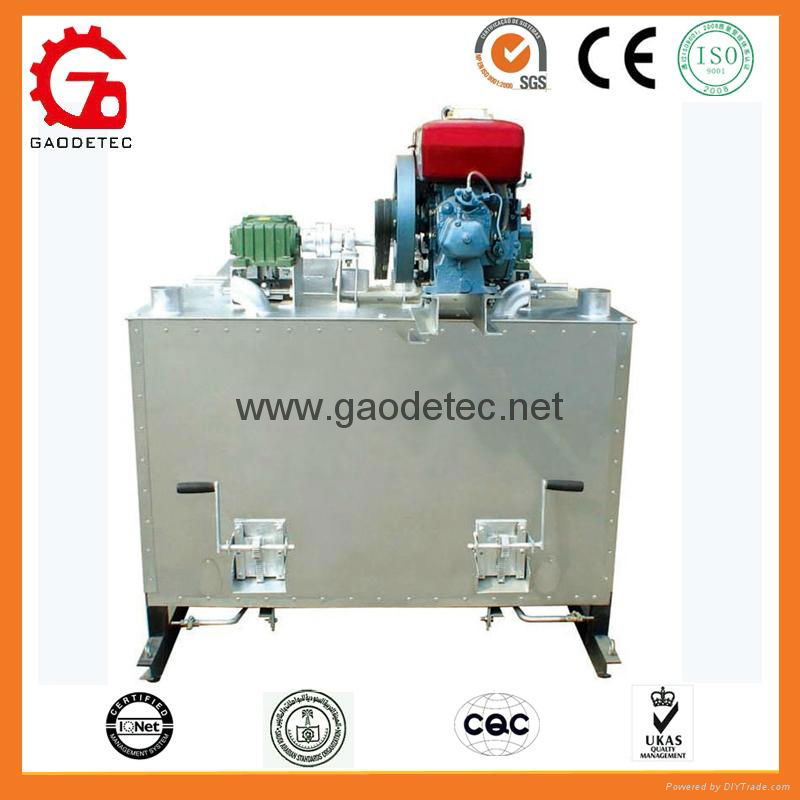

GD600 and GD300 Mechanical thermoplastic hot melt kettle

GD600 Mechanical double cylinders thermoplastic kettle adopt mechanical transmission, double cylinders thermoplastic kettle, melting material cylinder of medium capacity and imported highly efficient four ring burner. It has stable function, efficient melting, easy operation and maintenance.

GD300 Mechanical single cylinder thermoplastic kettle deprives from GD600 Mechanical double cylinder thermoplastic kettle. It has light weight, small volume, easy transportation and low price. It can be used in construction projects of small scale as parking spots, residential quarters, factories and ports.

Features:

It has stable function, efficient melting, easy operation and maintenance.

Application:

It can be used in projects of highways, larger quantities of municipal roads etc

Specification :

Type

GD300 single cylinder

GD600 double cylinders

Coating capacity

350L

300L*2

Driving method

Mechanical driving

Engine

6.6 PS diesel engine

7.7PS diesel engine

Structure

Framed structure, insulation is fixed between internal bladder and ektexine

Operation control

Erected oar stirrer

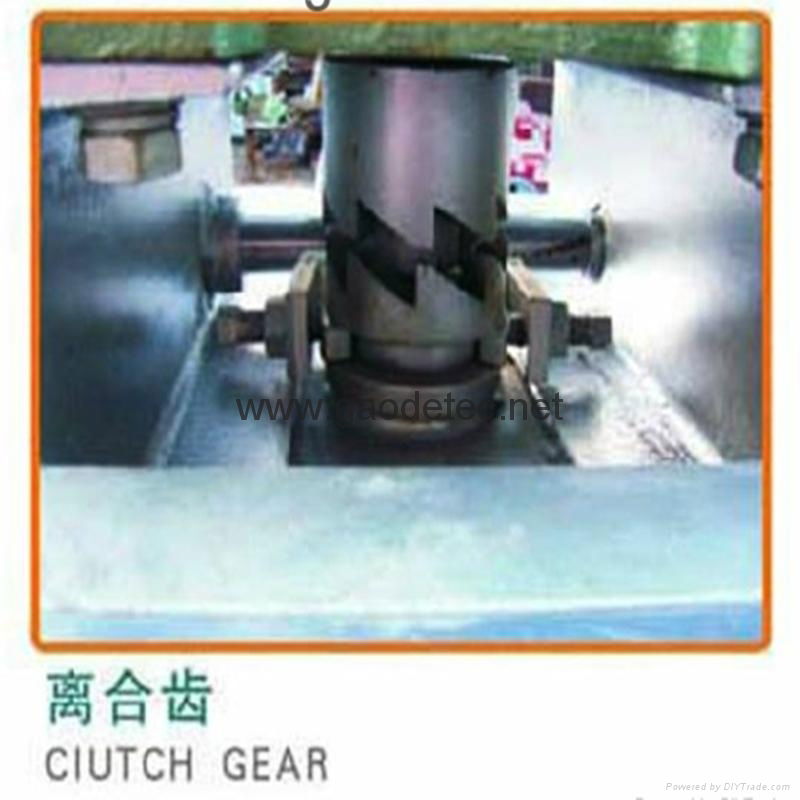

Hand clutch controls, respectively the forward stir of the two cylinders

Safety facility

Automatic protection facility for overload is designed to guarantee. The security of operating personnel when diesel and gear box separate automatically under emergent situation

Furnace

Imported

Heating system

Petroleum gas (50kg/jar recommended)

Weight

300kg

500kg

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

GD300 Mechanical single cylinder thermoplastic kettle for sale
GD300 Mechanical single cylinder thermoplastic kettle for sale

GD600 Mechanical double cylinders thermoplastic pre-heater for sale
GD600 Mechanical double cylinders thermoplastic pre-heater for sale



main spare parts of thermoplastic heat kettle
main spare parts of thermoplastic heat kettle

Deliver thermoplastic heat kettle and road marking machine to port to Malaysia
Deliver thermoplastic heat kettle and road marking machine to port to Malaysia
