GD-D390 marking removal machine

  • GD-D390 marking removal machine
  • drawing of road marking removal machine
  • road marking removal machine was removal the line on the street
  • blades of road line removal machine
Model No.︰GD-D390
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰CNY ¥ 7360 / set
Minimum Order︰1 set
Share on:

 Total 14 Related Items
Prev56789Next

Product Description

GD-D390 marking removal machine

Description:

GD-D390 marking removal machine is used to eliminate damaged, crazing and discolored special hardware of marking index line. Engine drives the burnishing head remove at top speed, burnishing head grinds in with the jut of road under the function of revolving centrifugal force, and thus marking is cleaned clear.

Features:

  1. Honda GX390 or PERICOM
  2. Pneumatic tyre: shock absorption
  3. With brake system
  4. Blade with long life: 20000m2
  5. Good burnishing performance, fast speed and easy operation and maintenance.

Application:

The machine mainly used to eliminate damaged, crazing and discolored special hardware of marking index line.

Technical data:

Type

GD-D390

Removal line width

225mm

Removal line height

Can adjust according to the ground condition, usually less than 3mm

Engine

HONDA GX390 or PERICOM 16PS

Power

13HP or 16PS

Rotate speed

3600rpm

Fuel consumption

230g/h

Blade Qty.

78 pieces

Blade material

 carbide bit

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

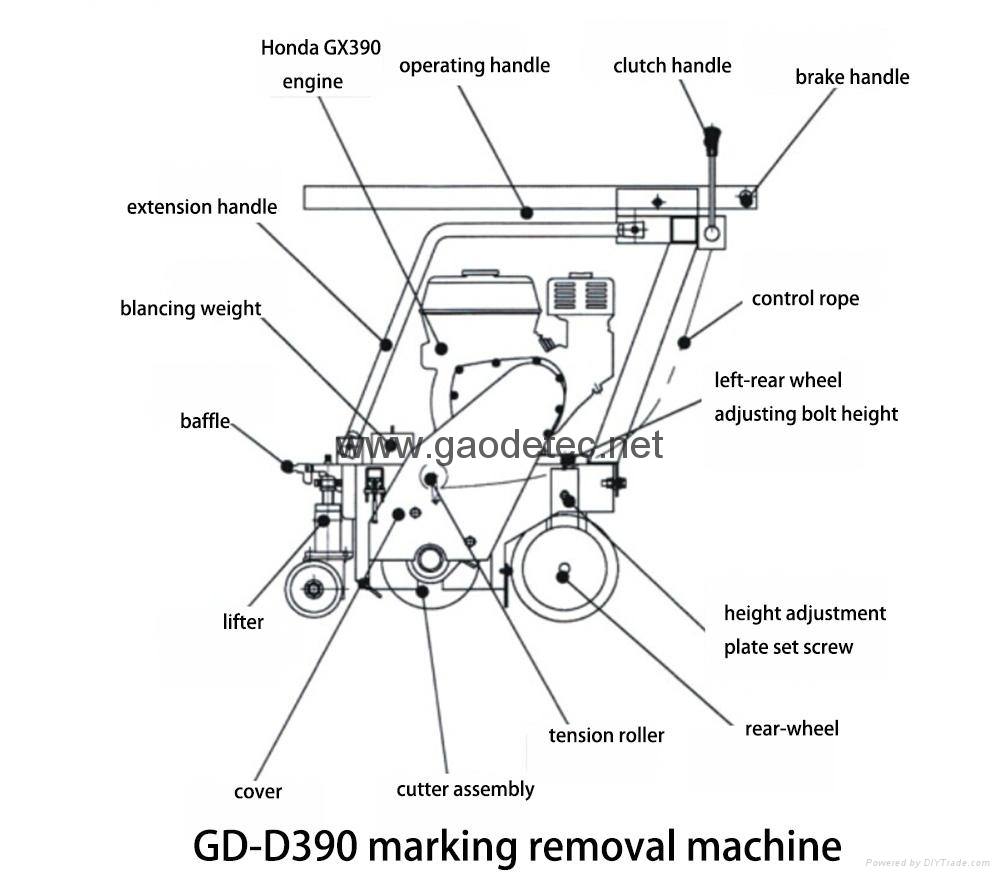

drawing of road marking removal machine
