1 ton Piston Air Winch

1 ton air winch
  • 1 ton air winch
  • 1 ton piston air winch
  • 1 ton piston pneumatic winch
Model No.︰1t
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 3000 / Set
Minimum Order︰1 Set
Share on:

 Total 5 Related Items
Prev12345

Product Description

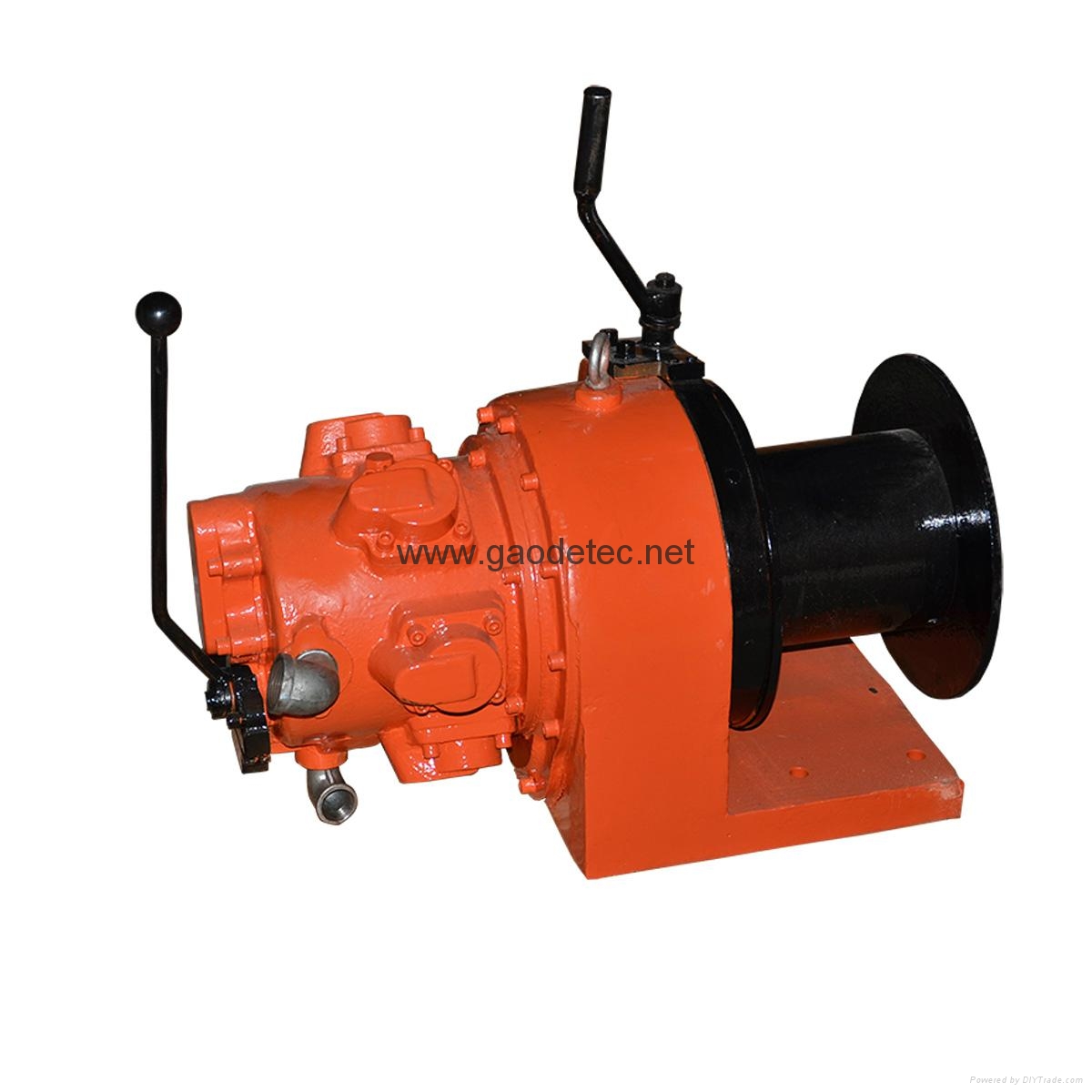

1 Ton Piston Air Winch

1. Description and application

This air winch is powered by GMH4A piston air motor and hand operated. It’s mainly used for pulling or lifting heavy things in metal mine, coal mine, construction project, oil field, etc.

It has reasonable design, compact structure, and it’s also easy to transport and install. Thus it’s suitable for borehole operation in mining such as dispatching on loading station of sinking

well or coalface, pulling tramcar, or lifting on narrow lane.

2. 1T Piston Air Winch:

1

Air pressure(Mpa)

0.6

2

Rated Tension(KN)

10

3

Rated Speed(m/min)

24

4

Air motor

Rated power(KW)

4.4

Cylinder Qty.(pcs)

6

5



Drum

quantity

1

diameter(mm)

180

width(mm)

200

Rope capacity(m)

120

6

Rope diameter(mm)

8

7

Air hose diameter(mm)

25

8



dimension



length(mm)

757.5

width(mm)

350

height(mm)

521

Payment Terms︰TT / LC / DP / DA
Packing︰Standard Export Packing
Lead Time︰Within 7 working days after reveived prepayment
Standards Certificate︰ISO CE SGS
Product Image

1 ton air winch
1 ton air winch

1 ton piston air winch
1 ton piston air winch

1 ton piston pneumatic winch
1 ton piston pneumatic winch
