Used for Winch Vane Pneumatic Motor

2AM vane pneumatic motor
  • 2AM vane pneumatic motor
  • 2AM-F110 vane pneumatic motor
  • 2AM-H vane air motor
  • 1AM blade air motor
  • 1AM gear air motor
  • 2AM-V vane air motor
  • 4AM-H VANE AIR MOTOR
  • 16AM VANE PNEUMATIC MOTOR
  • Stainless steel vane pneumatic motor
  • pneumatic gear motor
  • air gear motor
  • pneumatic vane motor
  • pneumatic motor
Model No.︰AM
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 500 / Set
Minimum Order︰1 Set
Share on:

 Total 5 Related Items
Prev12345Next

Product Description

Vane pneumatic motor used for winch

1. Vane pneumatic motor description:

With compressed air as actuating medium, vane pneumaic motor makes use of the expansion of compressed gases; convert

the pressure energy into mechanical energy. pneumatic motor has simple structure, small size, light weight, high horsepower,

and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work

in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading,

it was also widely used for ships, metallurgical, chemical, paper and other industries.

2. Vane pneumatic motor features:

  1. Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
  2. proof water, fire, moisture and explosion
  3. can work in humid, high temperatures, high dust and other proof working environment

3. Vane pneumatic motor technical data:

Model

Maximum Speed

Maximum Torque

Power

Torque

Rotate Speed

Air consumption



Rotate Speed

Torque

hp

kw

Nm

lb.in.

rpm

m3/h

cfm

rpm

Nm

lb.in.

1AM

0.45

0.33

0.31

2.75

10000

35.1

20.5

650

0.65

5.6

2AM

0.93

0.68

2.20

19.50

3000

49.5

30

350

3.05

26.1

4AM

1.70

1.30

4.10

36.00

3000

132.5

78

300

6.3

56

6AM

4.00

3.00

10.00

84.00

3000

228

128

300

13

115

8AM

5.25

3.90

14.40

132.00

2500

293

175

300

21

185

16AM

9.50

7.00

34.00

290.00

2000

475

275

300

43

372



Payment Terms︰TT / LC / DP / DA
Packing︰Standard export package
Lead Time︰available
Standards Certificate︰ISO CE SGS
Product Image

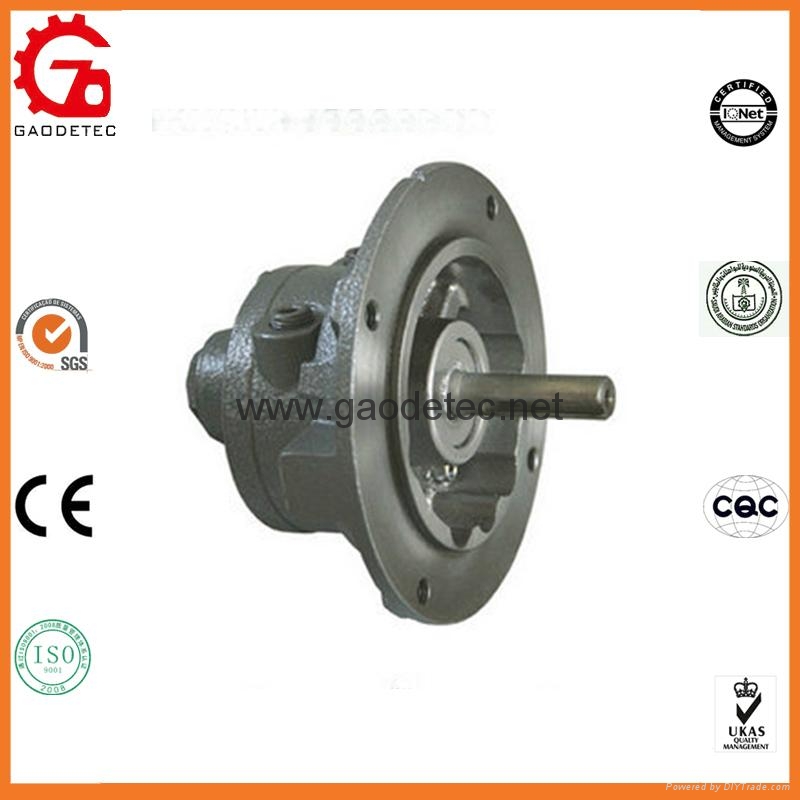

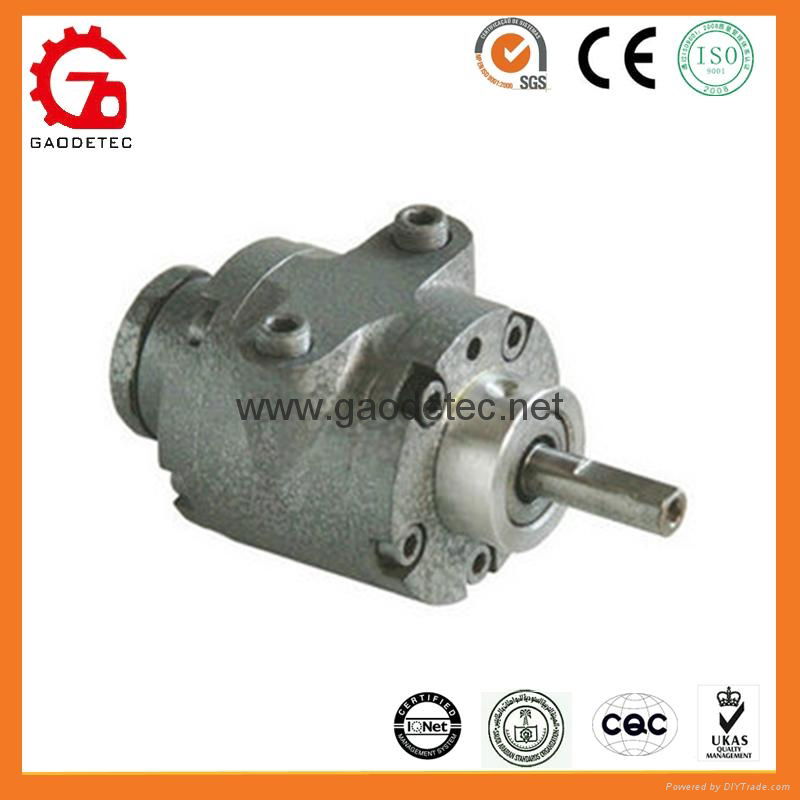

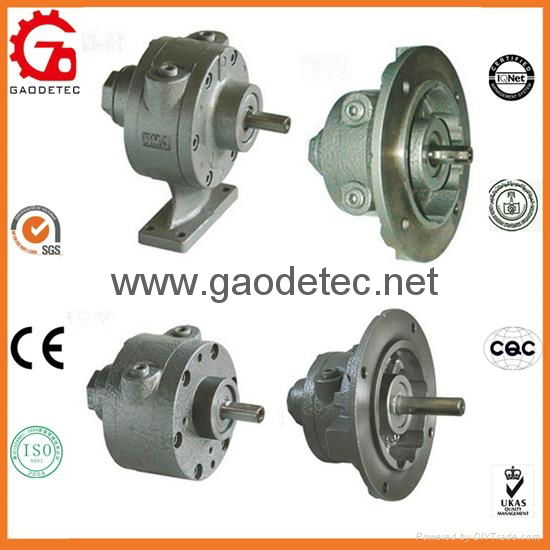

2AM vane pneumatic motor
2AM vane pneumatic motor

2AM-F110 vane pneumatic motor
2AM-F110 vane pneumatic motor

2AM-H vane air motor
2AM-H vane air motor

1AM blade air motor
1AM blade air motor

1AM gear air motor
1AM gear air motor

2AM-V vane air motor
2AM-V vane air motor

4AM-H VANE AIR MOTOR
4AM-H VANE AIR MOTOR

16AM VANE PNEUMATIC MOTOR
16AM VANE PNEUMATIC MOTOR

Stainless steel vane pneumatic motor
Stainless steel vane pneumatic motor

pneumatic gear motor
pneumatic gear motor

air gear motor
air gear motor

pneumatic vane motor
pneumatic vane motor

pneumatic motor
pneumatic motor
