GD320 road marking machine

GD320 thermoplastic road marking machine is marking on street
  • GD320 thermoplastic road marking machine is marking on street
  • double stainless steel heating coating for road marking machine
  • difference type marking shoe for road marking machine
Model No.︰GD320
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 1600 / set
Minimum Order︰1 set
Share on:

 Total 12 Related Items
Prev34567Next

Product Description

GD320 Hand-push thermoplastic road marking machine

GD320 Hand-push thermoplastic road marking machine is key equipment of hot melt index line construction, and it finishes the index line construction cooperating with thermoplastic kettle.

GD320 road marking machineis mainly used for marking reflective lines(such as straight lines, dotted lines, curved lines, direction arrows, letters) on expressways, city streets and parking lots.

GD320 senior hand-push thermoplastic road line paint machine absorbs advanced technology.This machine adopts specially designed high precision cast iron marking bucket to ensure index line’s even edge, head, thickness and tidy lines.

The grounding knife can apply to road surface of different conditions. There is timing and buffering facility in glass beading automatic broadcasting machine, which made this machine has some features such as high efficient, stable performance, easy operation, and convenient maintenance.

GD320Hand-push thermoplastic road marking machine technical data sheet :

Coating capacity

100KG

Glass bead tank capacity

10KG



Marking width

50,80,100,120,150,180,200,230,300,400,450mm, can change shoe of different scales according to the project

Marking thickness

1.0-3.0mm, adjustable

Heating temperature

180-210℃

Heating method

petroleum liquefied gas

Dimension

1320*850*1000mm

Weight

135KG

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time︰1 in stock 2 common: one week 3 Customised: 15days
Standards Certificate︰ISO CE
Product Image

GD320 thermoplastic road marking machine is marking on street
GD320 thermoplastic road marking machine is marking on street

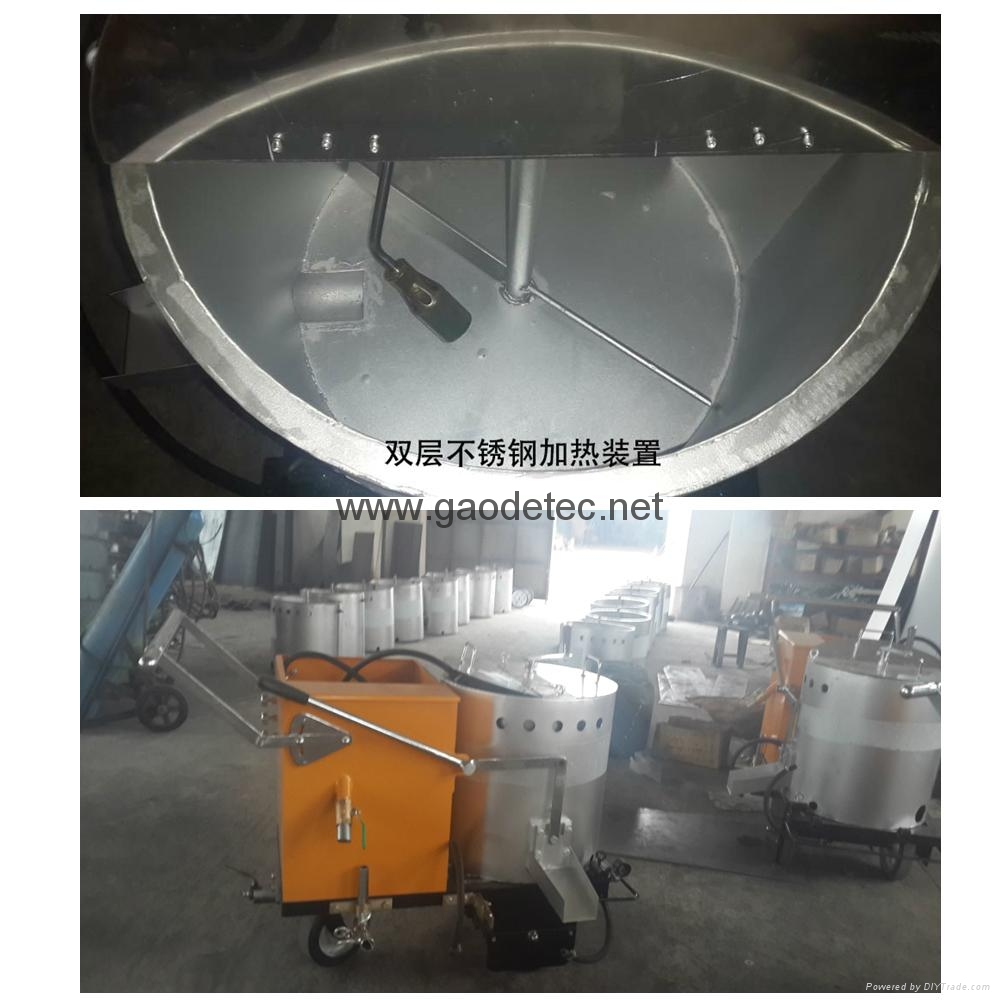

double stainless steel heating coating for road marking machine
double stainless steel heating coating for road marking machine

difference type marking shoe for road marking machine
difference type marking shoe for road marking machine
