prestressed anchor PC steel wire concrete cable

PC steel wire concrete cable
  • PC steel wire concrete cable
  • PC concrete cable
  • prestressed PC strand
  • prestressed pc wire
  • prestressed PC cable
  • prestressed tendons
  • prestressed anchor PC steel wire concrete cable
Model No.︰12.7/15.24
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 500 / Ton
Minimum Order︰5 Ton
Share on:

 Total 2 Related Items
12Next

Product Description

prestressed concrete cable

Descriptions:

1, High tensile strength with good performance

2, 12.7mm 1720/1860/1960MPA, 15.2mm 1570/1670/1770/1860/1960MPA, 15.7 mm 1860MPA.

3, We can produce according to ASTMA416, AS1311, BS5896, JISG3536, GB/T5224-2003.

4. Unbonded and bonded low relaxation 7 wires prestressed cable.

Applications:

Prestressed cable is mainly for the use of prestressed concrete structure reinforced. such as large –span bridges on railway and highway, overhead crane beam, rock-soil anchoring project, multi-story industrial buildings, stadiums, coal mines and etc.

Features:

1. Unbonded and bonded Prestressing Steel Strand has a good corrosion-resistance and less friction of un-bonded tendons and can be easily bended into curve shape.

2. It is suitable for making cast-in-place concrete of long-span and wide building cover, heavy load prefabricated beam and other special structures.

3. It has a lot of characters such as no need of grout hole and grouting, convenient to use, material-saved, bending easily and so on.

Technical Parameter:

Specifications

Tensile Strength

Section Area

Grease volume≥

Thickness of coat≥

The coat features

Tensile strength≥

Yield strength≥

Breaking elongation≤

mm

Mpa

mm2

g/m

mm

Mpa

%

9.5

1720

54.8

32

0.8

30

10

60

1860

30

10

60

1960

30

10

60

12.7

1720

98.7

43

1

30

10

60

1860

30

10

60

1960

30

10

60

15.2

1570

140

50

1

30

10

60

1670

30

10

60

1720

30

10

60

1860

30

10

60

1960

30

10

60

15.7

1770

150

53

1

30

10

60

1860

30

10

60

Payment Terms︰TT/LC/cash/credit card
Packing︰shaftless and moisture-proof each coil is strapped by steel bands with wooden pllet and fully wrapped in anti-rust paper&PP woven sheet.
Lead Time︰in stock
Standards Certificate︰CE
Product Image

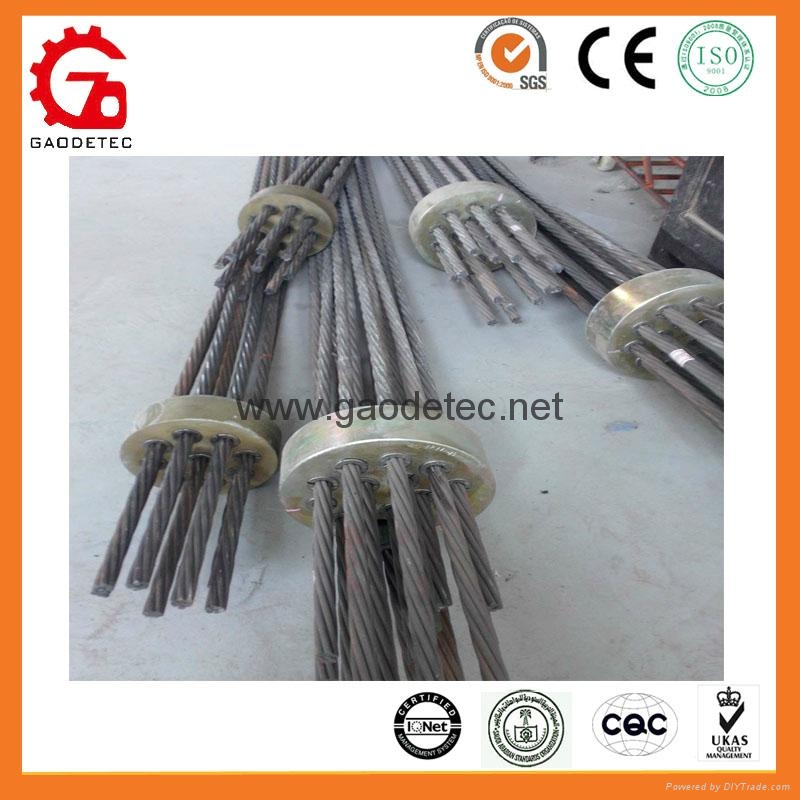

PC steel wire concrete cable
PC steel wire concrete cable

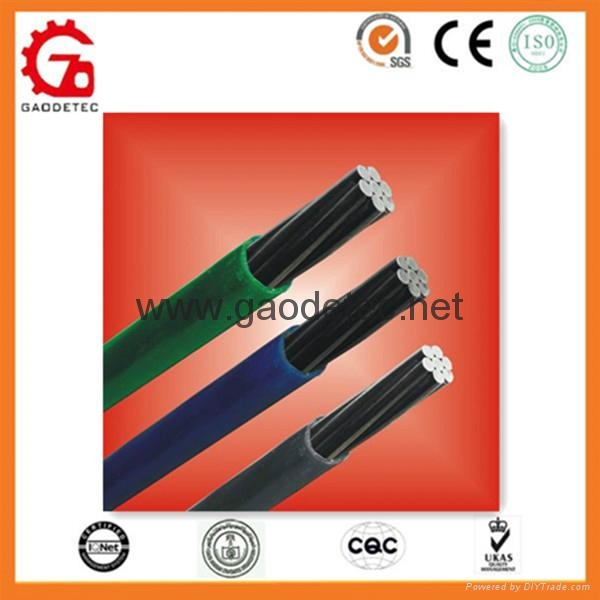

PC concrete cable
PC concrete cable

prestressed PC strand
prestressed PC strand

prestressed pc wire
prestressed pc wire

prestressed PC cable
prestressed PC cable

prestressed tendons
prestressed tendons
