Product Description

GGP250/350/100 PI-DHydraulic continuous grout mixer pump

Description:

GGP250/350/100 PI-D Grout Station is a hydraulic driven combination of mixer, agitator and grout pump, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can fast mix water, cement and additive, then the mixed slurry can be stored into a 300 liters agitator, thus the mixing work can continuously be done.

Feature:

1. Compact size, It is combination of mixer, agitator and piston grout pump in one base frame;

2. Yuken relief valve and directional valve for hydraulic system of grout pump;

3. Butterfly valve of mixer and agitator;

4.  Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;

5. Operation and maintenance are simple;

6. With ISO, CE certificate.

Technical data:

Description

Data

         Grout Station type

GGP250/350/100 PI-D

             Mixer Volume

250L

   Mixer production(w/c ratio=1)

4 m3/h

      Circulation capacity

1200l/min

      Suitable W/C Ratio

0.5 to 1

          Agitator Volume

350L

        Agitator Speed

36rpm

          Water tank

60L

      Grout Pump Type

GGH90

    Grout pump output(Max.)

100L

  Grout pump work pressure

10MPa

  Grout Station Overall dimension

3300x1650x1500mm

  Grout Station Weight

1400kgs

Note: GGP250/350/100 PI-D is a combination of mixer, agitator and grout pump in one base frame

Payment Terms︰TT/LC

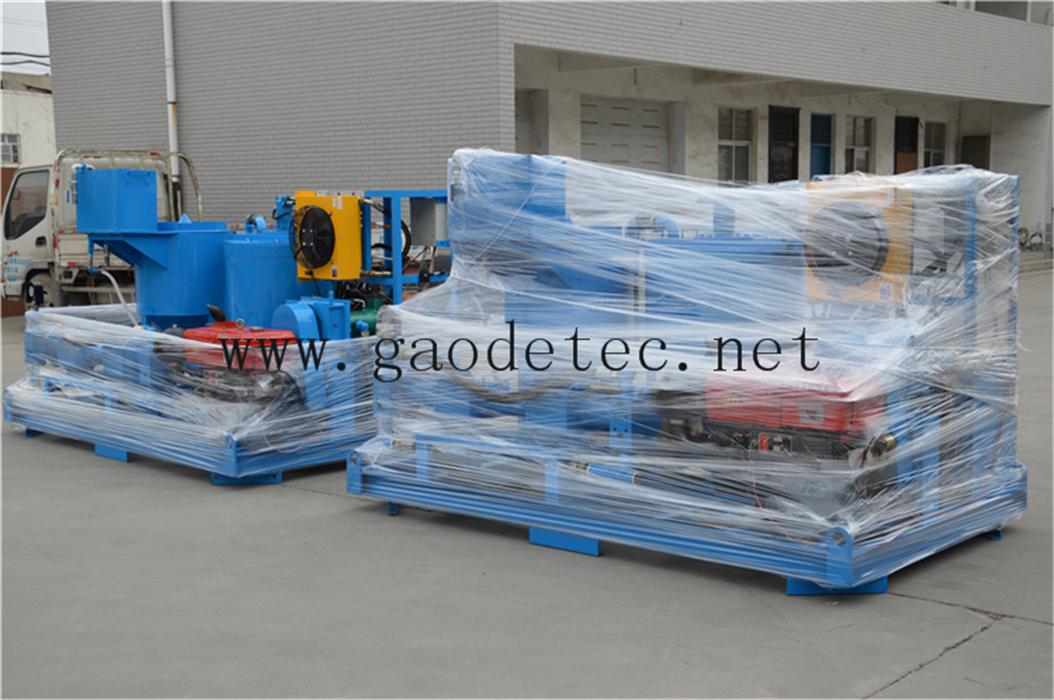

Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO
Product Image

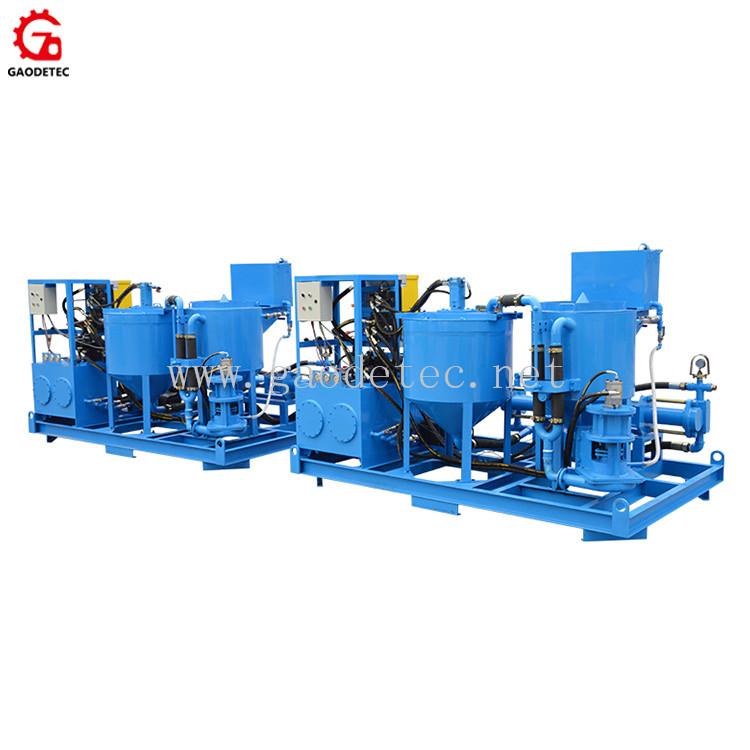

spare part for diesel grout mixer pump
spare part for diesel grout mixer pump

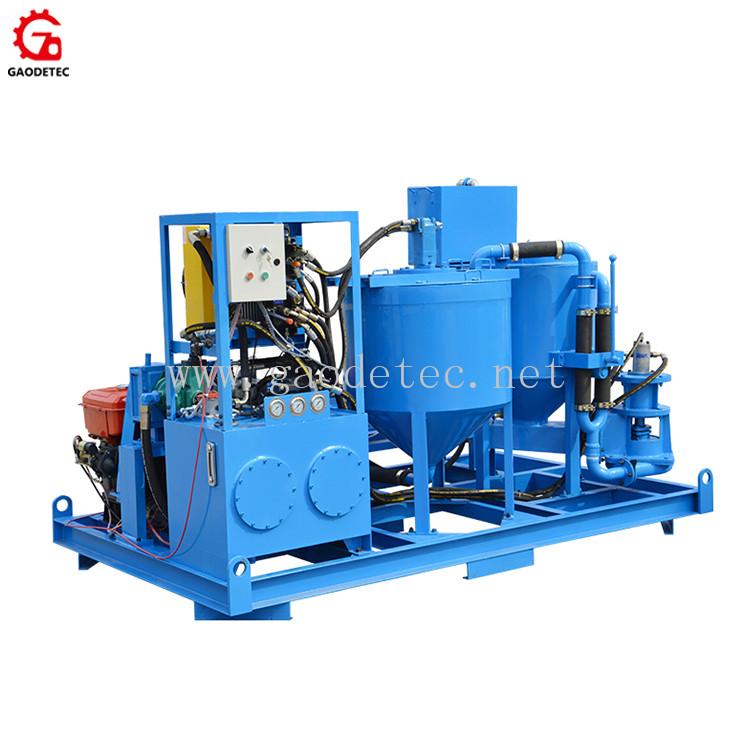

electric grout mixer pump for sale
electric grout mixer pump for sale

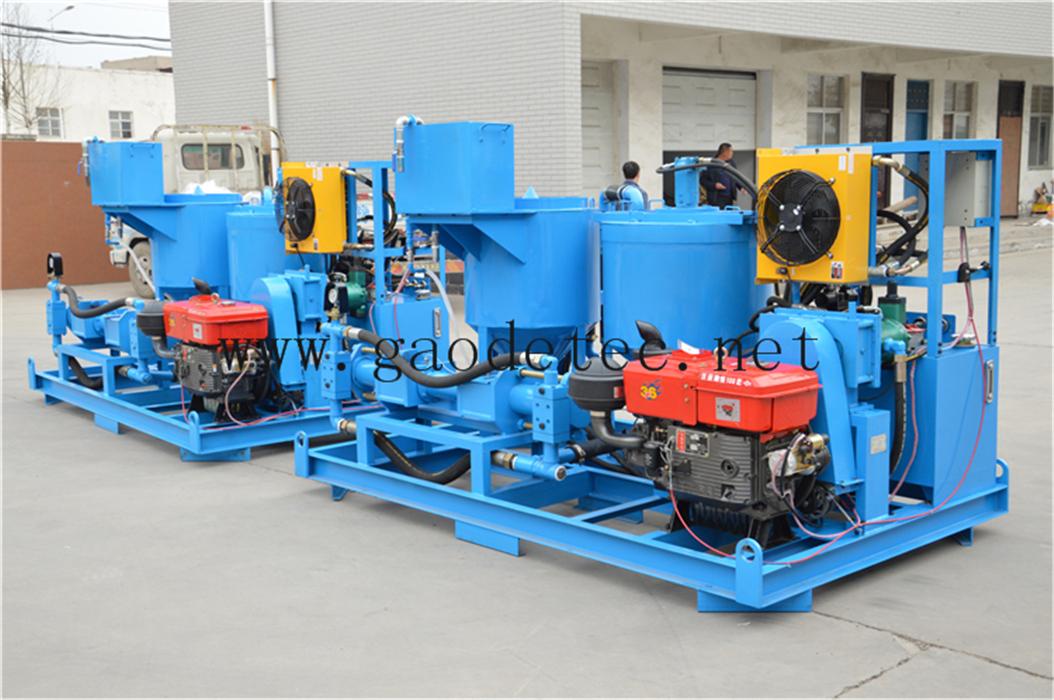

diesel grout mixer pump to Jordan
diesel grout mixer pump to Jordan

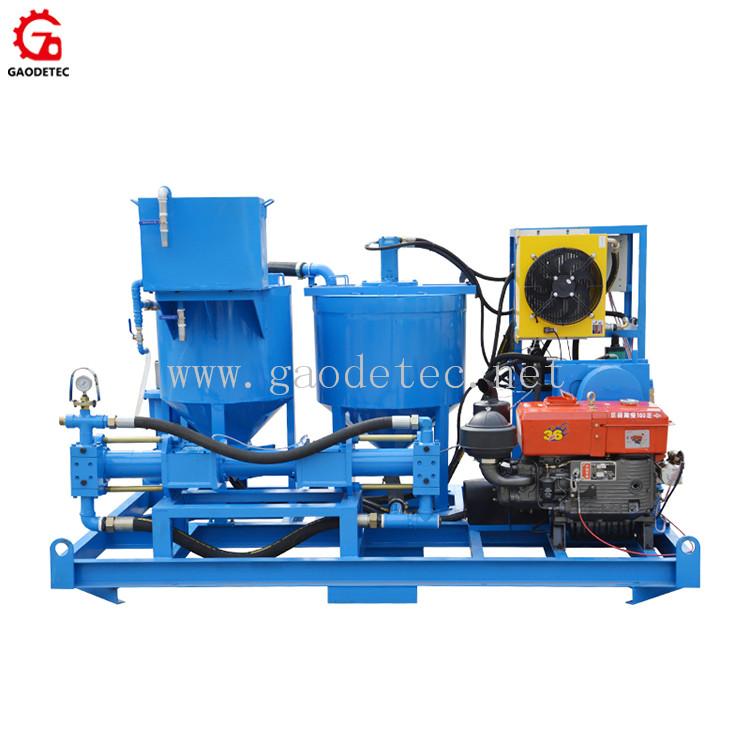

Customized green grout mixer pump forSwiss customer
