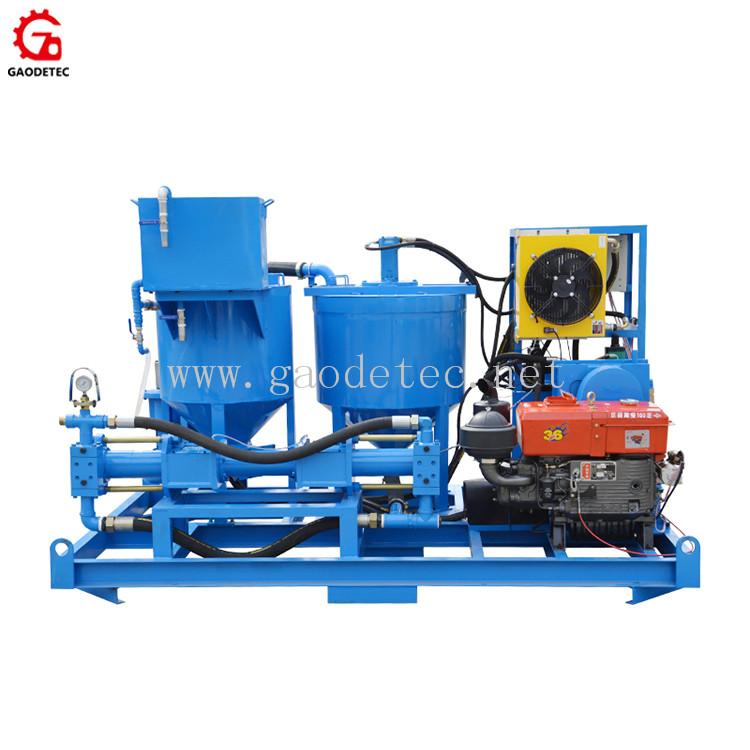

GGP250/350/100 PI-D hydraulic diesel grout station plant

grout plant station
  • grout plant station
  • grout agitator mixer
  • grout agitator mixer
  • grout  plant station
  • grout  plant station
  • grout  plant station
  • grout  plant station
  • grout  plant station
  • grout  plant station
  • grout  plant station
  • grout  plant station
  • grout  plant station
  • grout  plant station
  • grout  plant station
  • grout  plant station
  • grout plant station
Model No.︰GGP250/350/100
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 12000 / set
Minimum Order︰1 set
Share on:

 Total 73 Related Items
Prev5354555657Next

Product Description

 Hydraulic Diesel Grout Station Plant for Sale

Grout Station Plant Description:

GGP250/350/100 PI-D Grout Station is a hydraulic driven combination of mixer, agitator and grout pump, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can fast mix water, cement and additive, then the mixed slurry can be stored into a 300 liters agitator, thus the mixing work can continuously be done.

Grout Sation Plant Feature:

1. Compact size, It is combination of mixer, agitator and piston grout pump in one base frame;

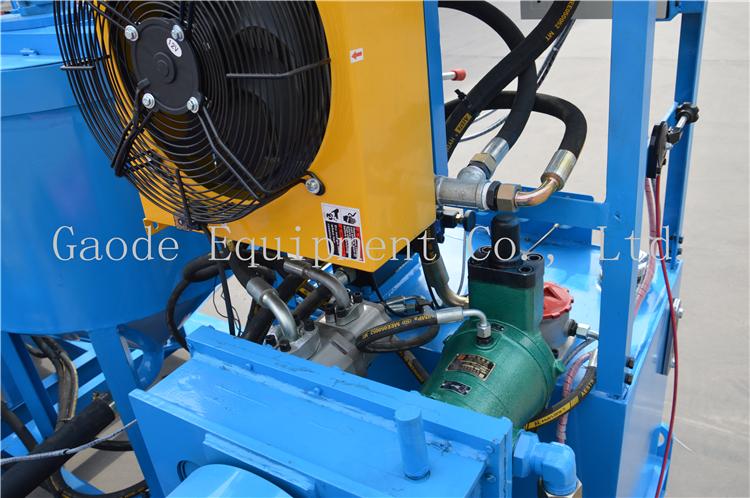

2. Yuken relief valve and directional valve for hydraulic system of grout pump;

3. Butterfly valve of mixer and agitator;

4. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;

5. Operation and maintenance are simple;

6. With ISO, CE certificate.

Grout Station Plant Technical data:

Description

Data

Grout Station type

GGP250/350/100 PI-D

Mixer Volume

250L

Mixer production(w/c ratio=1)

4 m3/h

Circulation capacity

1200l/min

Suitable W/C Ratio

0.5 to 1

Agitator Volume

350L

Agitator Speed

36rpm

Water tank

60L

Grout Pump Type

GDH90

Grout pump output(Max.)

100L

Grout pump work pressure

10MPa

Grout Station Overall dimension

3300x1650x1500mm

Grout Station Weight

1400kgs

Note: GGP250/350/100 PI-D is a combination of mixer, agitator and grout pump in one base frame

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO
Product Image

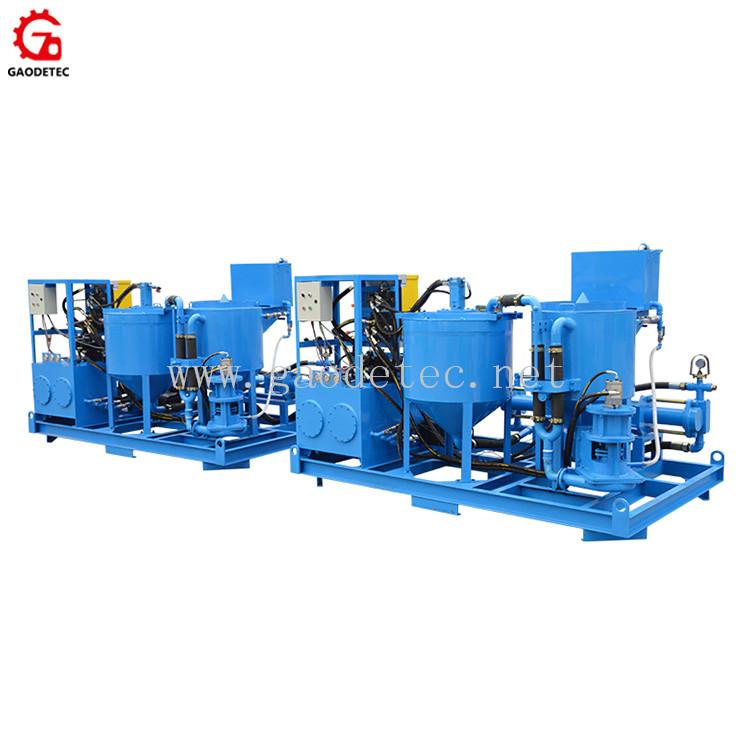

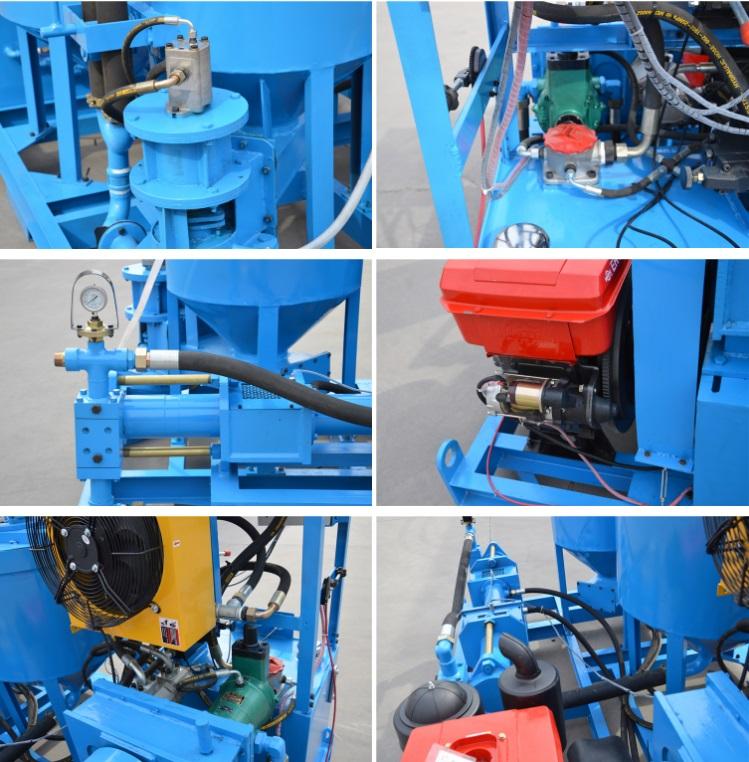

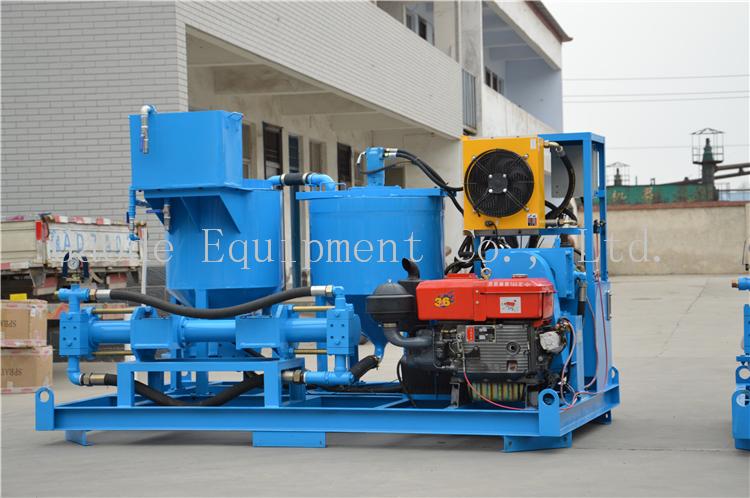

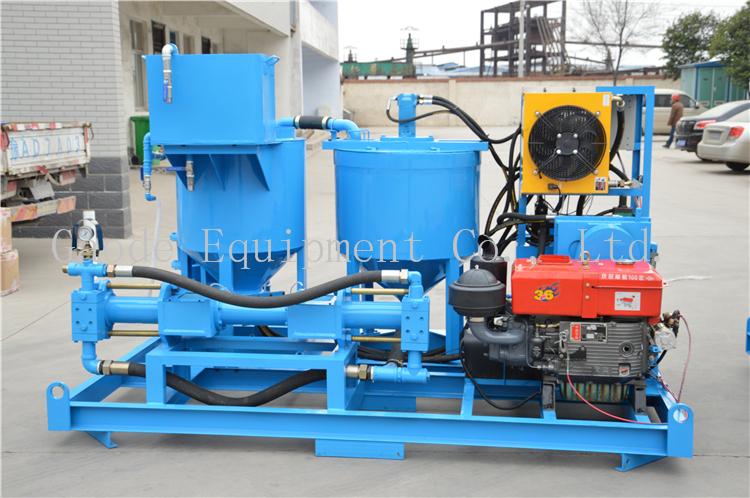

grout plant station
grout plant station

grout agitator mixer
grout agitator mixer

grout agitator mixer
grout agitator mixer

grout  plant station
grout plant station

grout  plant station
grout plant station

grout  plant station
grout plant station

grout  plant station
grout plant station

grout  plant station
grout plant station

grout  plant station
grout plant station

grout  plant station
grout plant station

grout  plant station
grout plant station

grout  plant station
grout plant station

grout  plant station
grout plant station

grout  plant station
grout plant station

grout  plant station
grout plant station

grout plant station
grout plant station
