Product Description

12.7mm Prestressed Concrete Flat anchor

1. Descriptions:

GBM15(13) series of  flat anchorage systems

1. High performance with good quality

2. Used for railway, bridge, highway, buildings

3. Flat or slab anchor systems

4. We can manufacture all kinds of prestressed anchor and equipment according to your requirement and drawings.

2. Applications:

It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, etc.

3. Features:

1. GBM15(13)  flat anchor  are used for the strand with diameter of |15.2-|15.7,|12.7-|12.9.

2. If prestressing strand is collocated in plate-type, you can arrange the prestressing strand into flat redial pattern by flat anchorage to avoiding to increasing the thickness of plating.

3. GBM15(13)  flat anchors includes flat anchor plate, working wedge, flat bearing plate, and uses the QYC front-end fixed jack to stressing.

5. The GBM series flat anchors can work automatically, have a high anchor efficiency and very good performance. They are ease to use, safe and reliable. They are crystallization of large quantity of experiences and scientific research.

6. They are used to anchor prestressing strands from 12.7mm and 15.2mm, 15.24mm.varies from 1 to 22 and we can produce according to your specific requirements.

7. The strength of extension of a single can be up to 2000 Mpa.

4. Technical parameter:

Model

flat anchor plate

flat bellows

flat base plate

flat spiral spring

A

B

C

D

E

F

L

G

H

n

t

GBM15(13)-2

80

46

52

22

160

70

140

160

100

5

45

GBM15(13)-3

115

46

65

22

180

70

150

180

100

5

45

GBM15(13)-4

150

46

74

22

220

80

210

220

100

5

45

GBM15(13)-5

185

46

90

22

260

80

270

260

100

5

45



Payment Terms︰TT/LC/cash/credit card
Packing︰plywood boxes or as your requests.
Lead Time︰in stocks
Standards Certificate︰ISO certification
Product Image

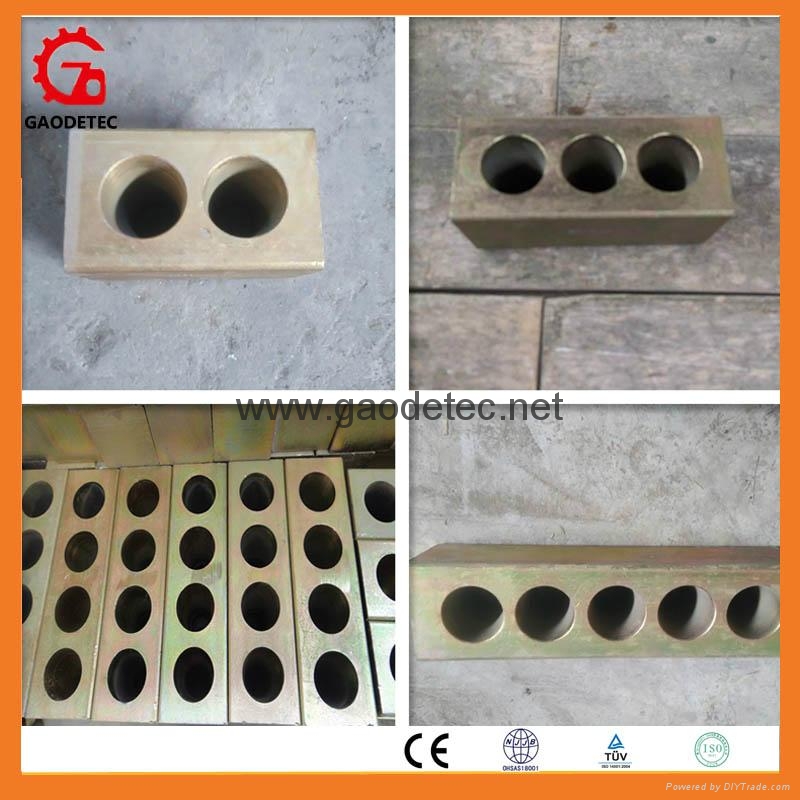

12.7mm Prestressed Concrete Flat Anchor
12.7mm Prestressed Concrete Flat Anchor

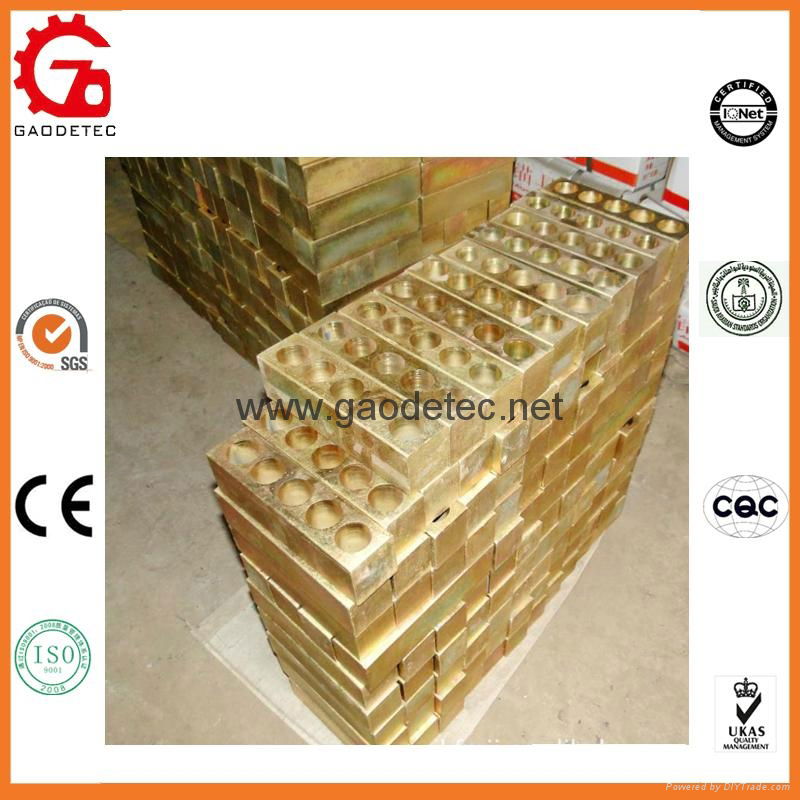

12.7mm 4 holes prestressed anchorage
12.7mm 4 holes prestressed anchorage

15.24mm 3 strands 4 strands 5 strands anchor ring
15.24mm 3 strands 4 strands 5 strands anchor ring

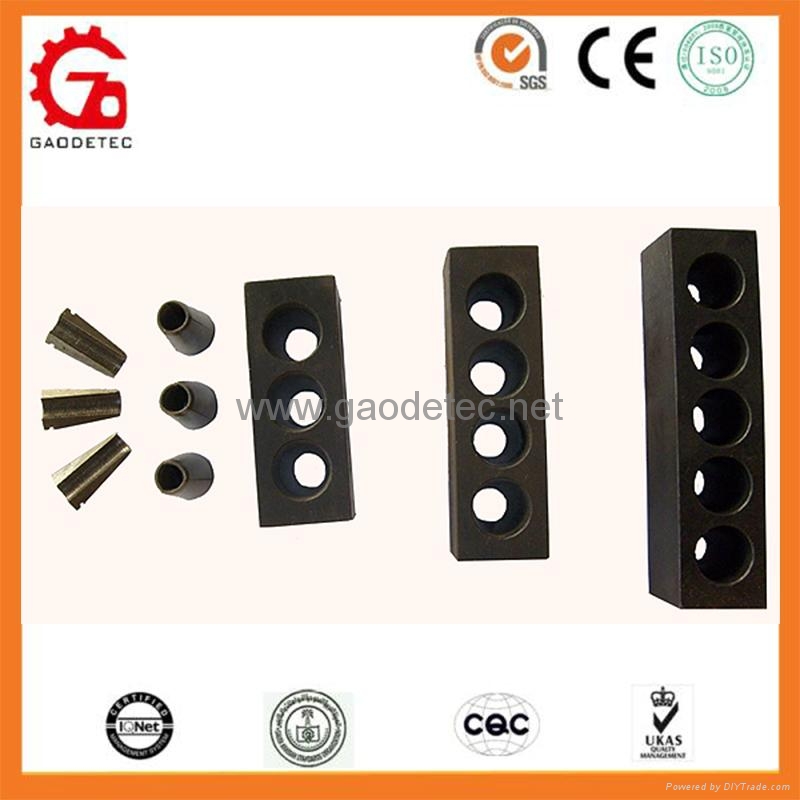

flat anchorage system
flat anchorage system

12.7mm Prestressed Flat Anchor
12.7mm Prestressed Flat Anchor

12.7mm 2 strands anchor plate
12.7mm 2 strands anchor plate

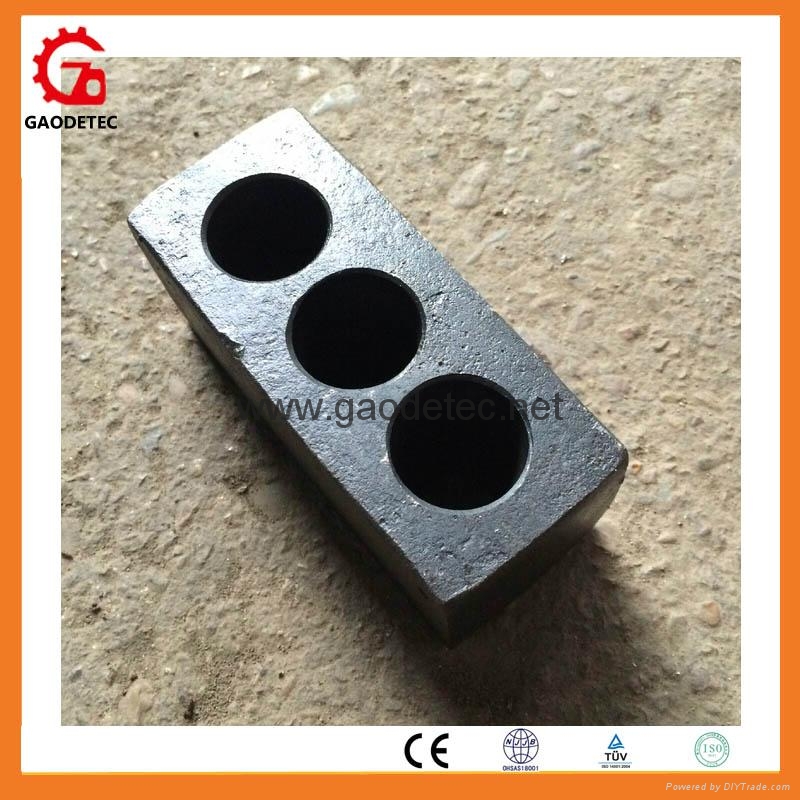

3 strands anchor plate
3 strands anchor plate

prestressing anchorage
prestressing anchorage

anchor supplier
anchor supplier

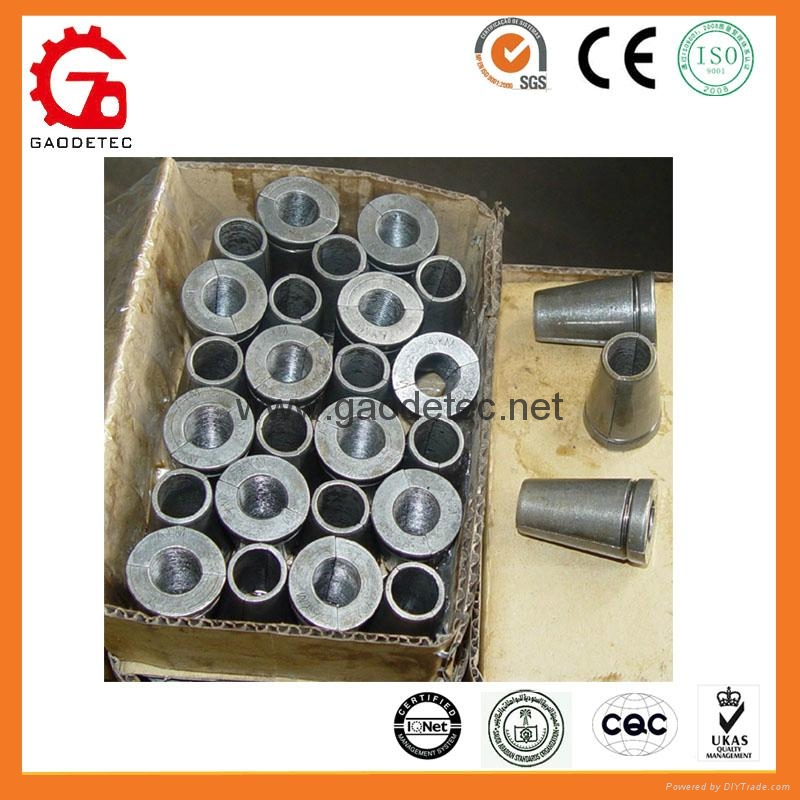

anchor block and wedges
