Product Description

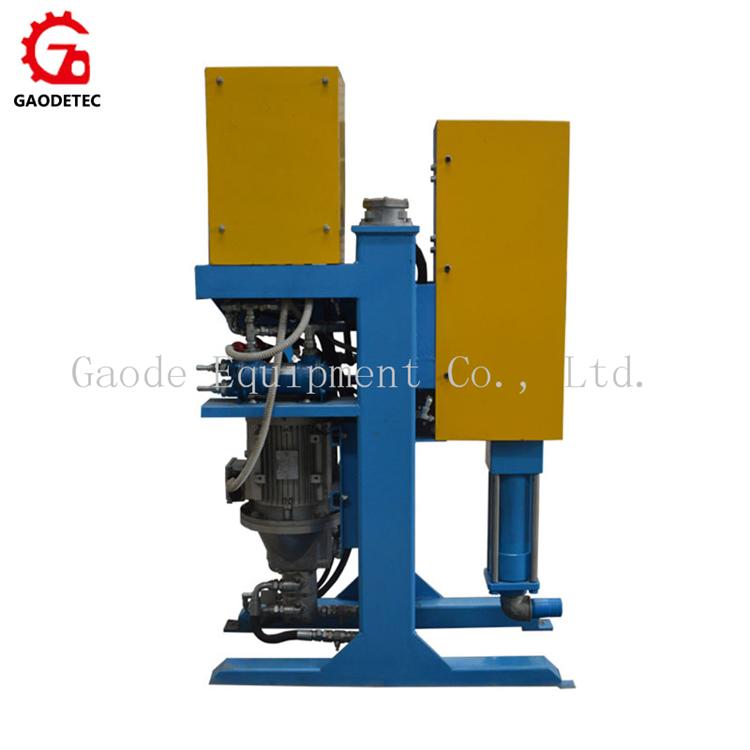

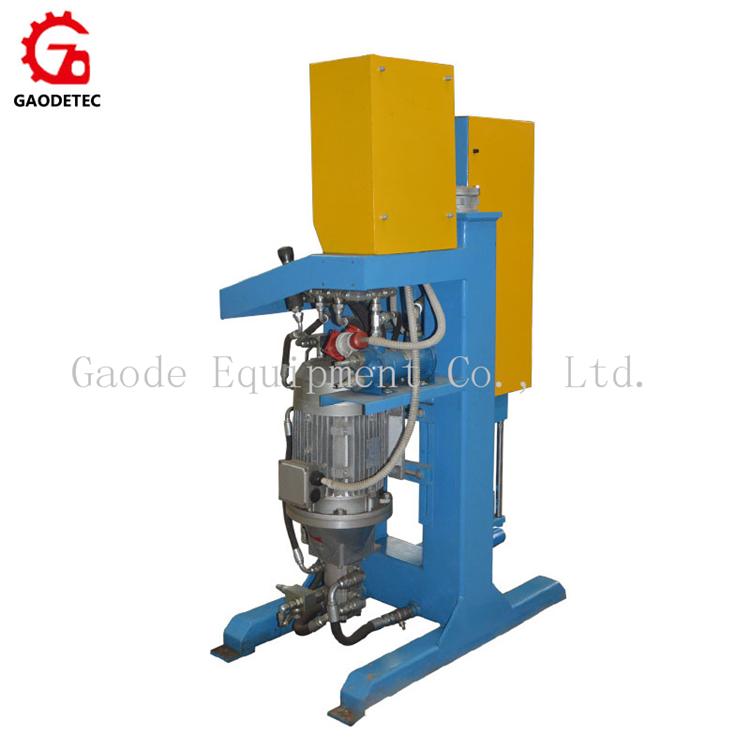

GGH75/100 Grouting Pumps for Build Dam

Description:

The GGH 75/100 high pressure vertical grouting pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc, grouting methods.

Grouting material: cement mixture, mortar/plaster, bentonite and other additive.

Specification of electric grout pump:





Item

GGH70/100PI-E

GGH100/100PI-E

Rated Output

0-70 L/Min

0-100 L/Min

Rated Pressure

10MPa(1450PSI)

10MPa(1450PSI)

Cylinder Dia.

110mm

110mm

Stroke/Minute

31

45

Inlet Dia.

38mm

38mm

Outlet Dia.

32mm

32mm

Power Unit

7.5kW

11kW

Transmission

Hydraulic drive

Hydraulic drive

Chassis

Skid

Skid

Weight

450Kg

580Kg

Overall Dimension

1505x770x1110mm

1505x770x1110mm

Note: Single or Double Passageway are optional; Chassis: Skid or Tyre

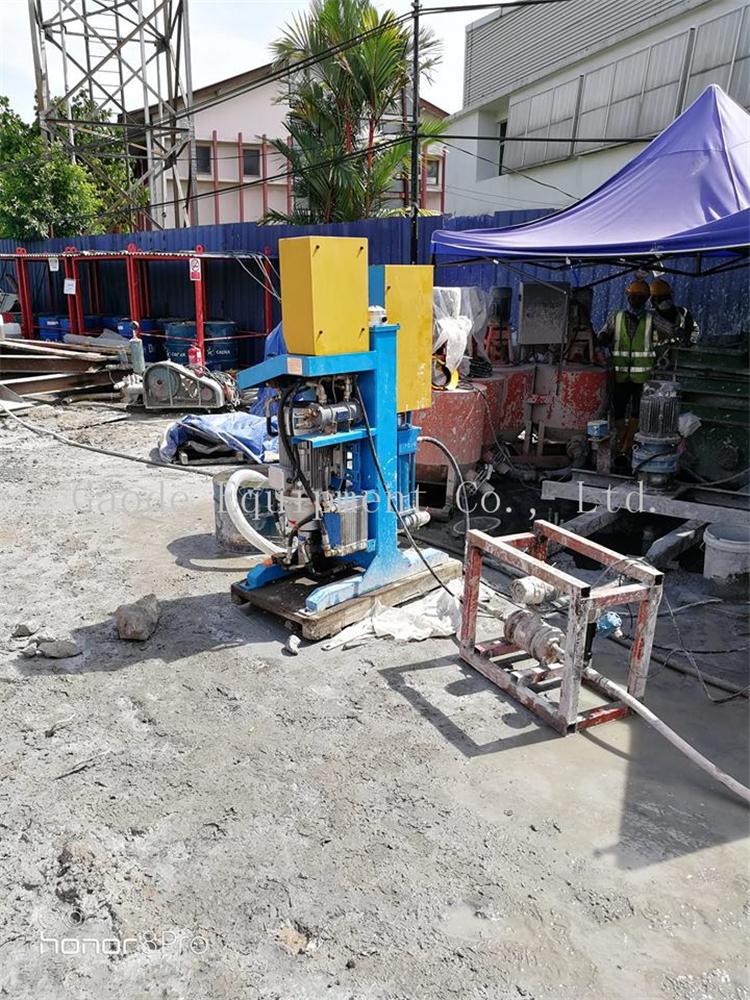

Application:

Ø  Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts

Ø  Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting

Ø  Construction - pavement under sealing, slab jacking and slab raising

Ø  Marine - underwater foundations, piers, breakers, shoreline foundations

Ø  Mining - tunnel lining, contact grouting, shaft waterproofing

Ø  Utilities - encasements, waterproofing, slope line grouting

Ø  Geotechnical - deep well casing, monitor wells, well sealing and abandonmen

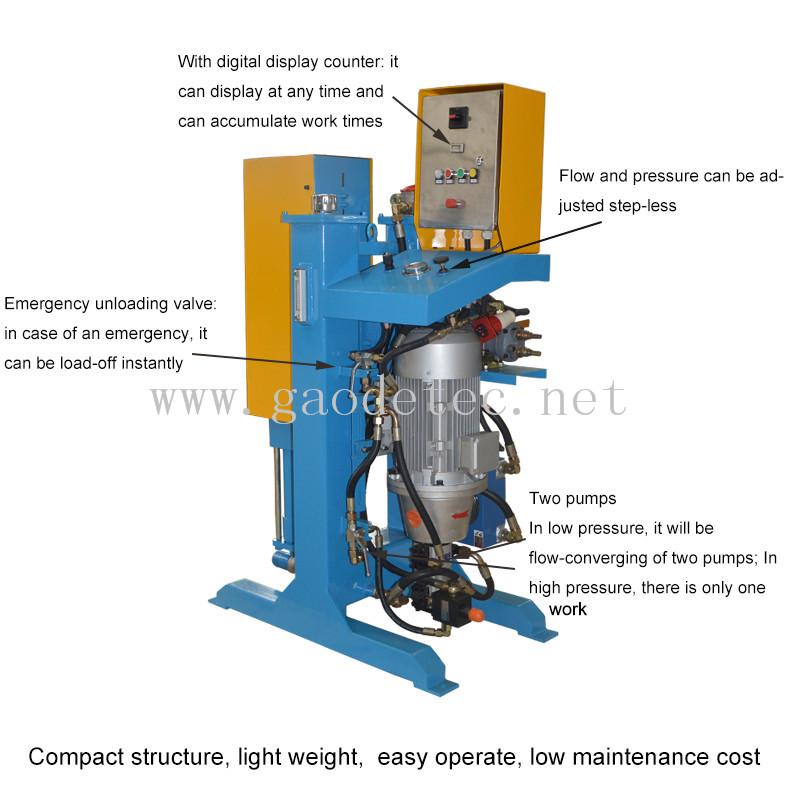

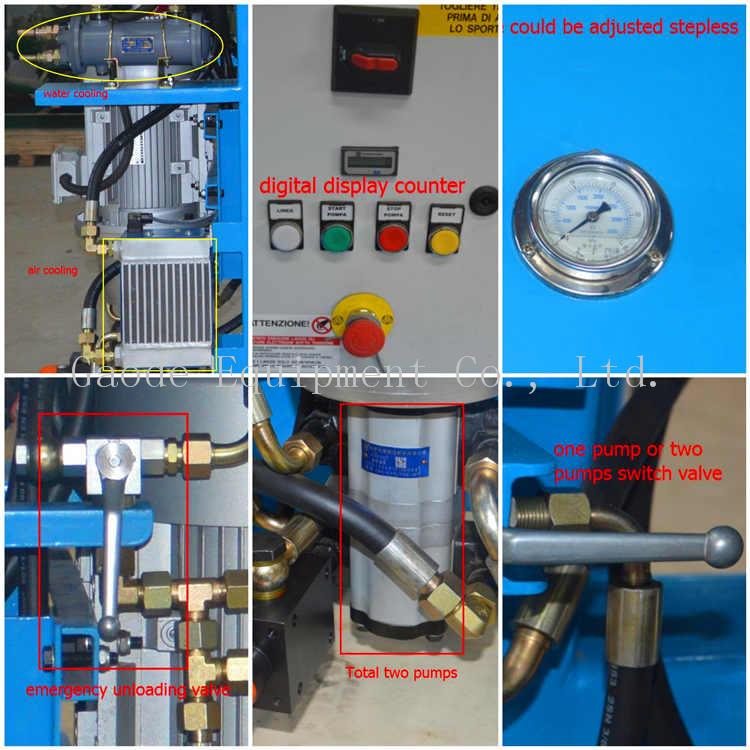

Feature:

  1. Compact structure, light weight,  easy operate, low maintenance cost;
  2. With digital display counter: it can display at any time, and can accumulate work times;
  3. Flow and pressure can be adjusted step-less;
  4. Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;
  5. In low pressure, it will be flow-converging of  two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;
  6. With full-hydraulic shaft device, stable and reliable operation;
  7. Cooling type: water-cooling and air cooling; Suitable for hot and cold areas.

 Contact Supplier:

Many thanks for visiting our web, we can supply grout pump for you. Before we send quotation, please let me know the following question:


1. What's pressure and flow of the pump you need ?
2. The water cement ratio, any sand in ?
3. About the power: electric (voltage and frequency) or diesel or air motor ?


We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.

Payment Terms︰TT
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customized
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
