Diesel Grouting Mixer and Agitator to Singapore

diesel grout mixer and agitator
  • diesel grout mixer and agitator
  • diesel grout mixer and agitator
  • Making cement slurry
  • Making cement slurry
  • Making cement slurry
  • Gaode grout mixer and agitator used in Singapore
  • Other types grout pump and mixer for option
Model No.︰GMA300-650D
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 4950 / set
Minimum Order︰1 set
Share on:

 Total 15 Related Items
Prev7891011Next

Product Description

Diesel Grouting Mixer and Agitator to Singapore



Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

Description:

GMA300-650D cement grouting mixer and agitator is a combination of mixer and agitator, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can produce various types of grout, such as water, cement, bentonite and additive could be mixed in the 300L mixer machine, then the mixed slurry can be stored into a 650 liters agitator, thus the mixing work can continuously be done.

           For the power, there are diesel engine and electric motor for option

     Specification:

                                             300L MIXER

Rated capacity

300 liter

Acceptable W/C ratio

≥0.5:1

Mixing time

3 min

Max emptying speed

1200L/min

Mixing speed

1500rpm

Weight

300 kgs

Overall Dimension

850mmdiax750mm

                                           650L AGITATOR

Rated capacity

650 liter

Rated Rev.

30rpm

Weight

150 kgs

Overall Dimension

900mm diax1050mm

                                                 Water tank

Rated capacity

150 liter

Weight

50kg

GMA300-650 E/D grout mixer and Agitator

Power

18HP (ZS1105 Changchai diesel engine)

7.5 KW( grout mixer)+1.5KW(Agitator)

 electric motor(3 phase, 380V, 50HZ)

Weight

750kg

Contact Supplier:

Many thanks for visiting our web, we can supply grout mixer and agitator for you. Before we send quotation, please let me know the following question:


1. Mixer only or mixer with agitator ?
2. How about the grouting liquid ? Just water and cement ? Any sand in ?
3. How about the water cement ratio ? More than 0.45: 1 ?


We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.

Payment Terms︰TT
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing Or customized
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

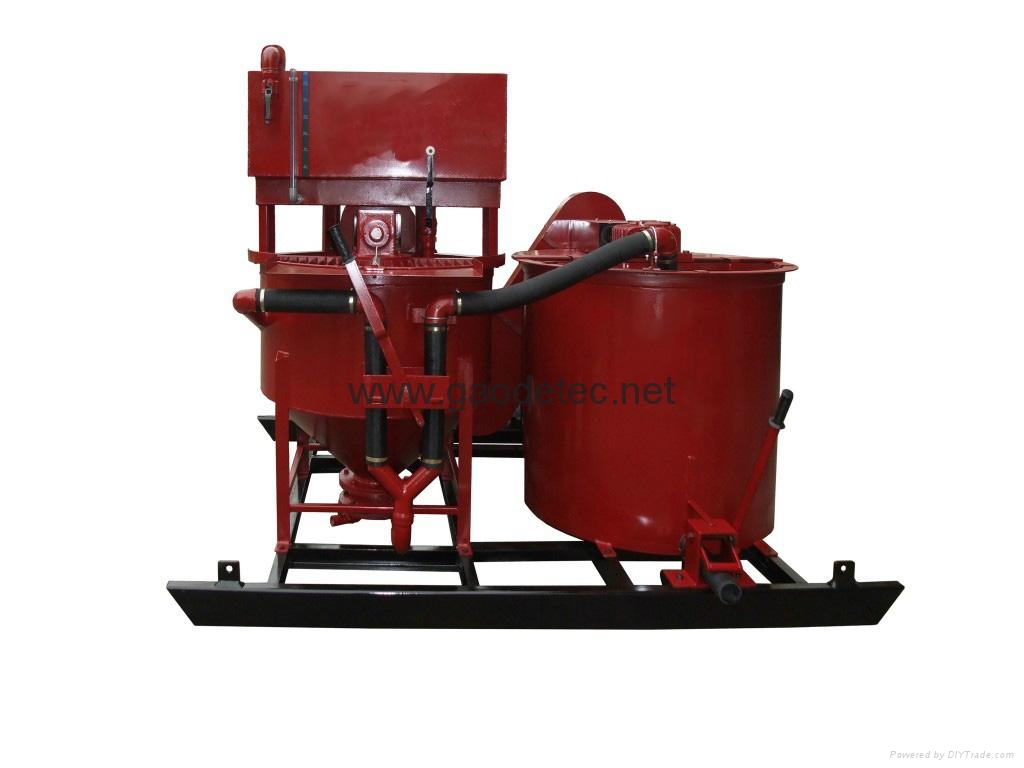

diesel grout mixer and agitator
diesel grout mixer and agitator

diesel grout mixer and agitator
diesel grout mixer and agitator

Making cement slurry
Making cement slurry

Making cement slurry
Making cement slurry

Making cement slurry
Making cement slurry

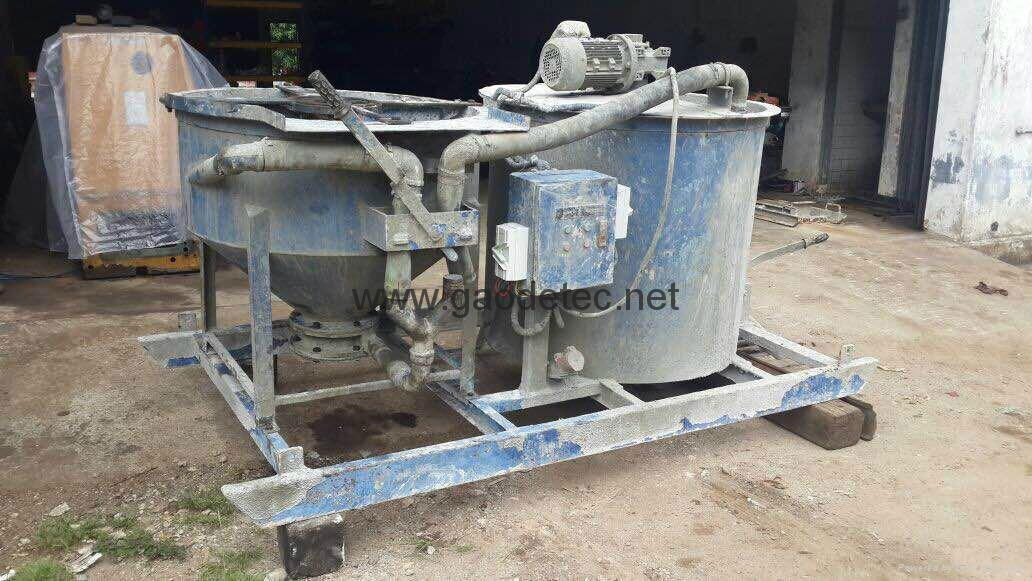

Gaode grout mixer and agitator used in Singapore
Gaode grout mixer and agitator used in Singapore

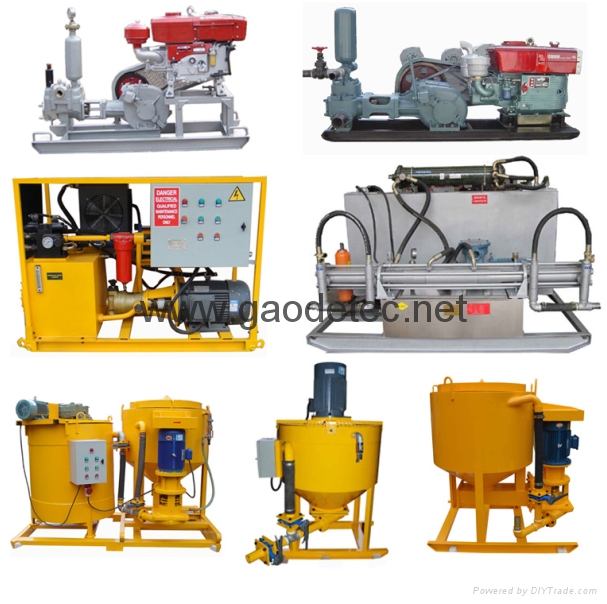

Other types grout pump and mixer for option
Other types grout pump and mixer for option
