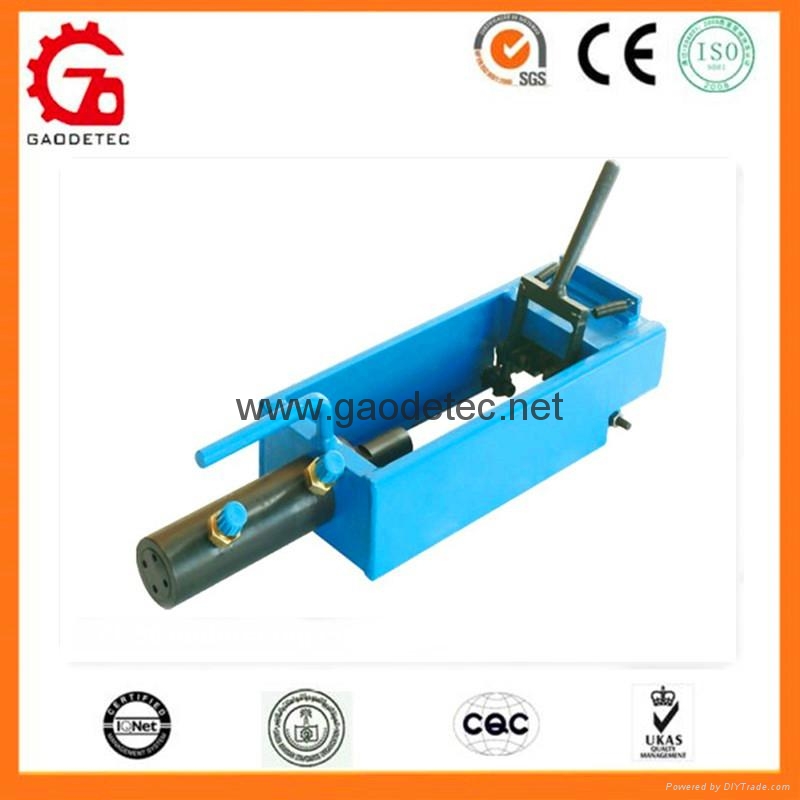

Used for PC Strands Prestressed Hydraulic Extruder Machine

PC Strands Hydraulic Extruding Machine
  • PC Strands Hydraulic Extruding Machine
  • Hydraulic Extruder Machine
  • Prestressed Tendons Extruder Machine
Model No.︰GYJ
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 750 / set
Minimum Order︰1 set
Share on:

 Total 29 Related Items
Prev1819202122Next

Product Description

Used for PC Stramds Prestressed Hydraulic Extruder Machine

Descriptions:

We manufacture hydraulic extruder machine and embossing machine

1. GYJ series extruder machine is the special equipment of making the P fixed- end anchorage.

2. YH30 embossing machine is the special extruding equipment of making the fixed-end anchorage, mainly used for extruding  the fixed-end of Prestressing strands into pear-shaped scattering shape.

3. For prestressing and post-tensioning use.

4. Good quality with high performance

Application:

It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, ect.

Features:

For GYJ hydraulic extruder machine:

Hydraulic extruder machine is a professional equipment mainly used to extrude prestressed cable and make them become grip Wrap type anchors. it is applied for single end anchoring, such as Φ12-Φ15.7 prestressed cable. This method is very simple and this kind of equipment is easy to operate, high efficiency with  extruding 20 or 30 pieces of anchors per hour.

For YH30 embossing machine:

YH30 Embossing Machine is a special equipment which is applied in multistrand fixing and H type anchoring system. After replaced the wedge, it can be used for the other specification of steel strands. YH30 type embossing machine is small in size, light, and easy to operate.



Technical parameter:

Technical parameter of GYJ hydraulic extruder:

parameter table of GYJ hydraulic extruder

Model

Rated extrusion

Extrusion

Extrusion

Return area

Stroke of

Mass

Overall

pressure

hydro-cylinder

area of piston

of piston

extrusion

dimension

KN

Mpa

mm

kg

mm

GYJ500

495

63

7.85 ×10-³

4.5×10-³

150

70

760×200×200

GYJ600

565

50

1.13×10-²

4.95×10-²

150

50

605×195×195



Technical parameter of YH30 embossing machine:

Parameter table of YH30 embossing machine

Model

Rated stressing

Oil

Return area

Extrusion area

Stroke of

Mass

Overall

pressure

pressure

of piston

of piston

extrusion

dimension



KN

Mpa

mm

kg

mm

YH30

30

43

0.425×10-³

0.707×10-³

70

11

560×155×215

Payment Terms︰TT/LC/cash/credit card
Packing︰wooden case
Lead Time︰in stocks
Standards Certificate︰CE ISO
Product Image

PC Strands Hydraulic Extruding Machine
PC Strands Hydraulic Extruding Machine

Hydraulic Extruder Machine
Hydraulic Extruder Machine

Prestressed Tendons Extruder Machine
Prestressed Tendons Extruder Machine
