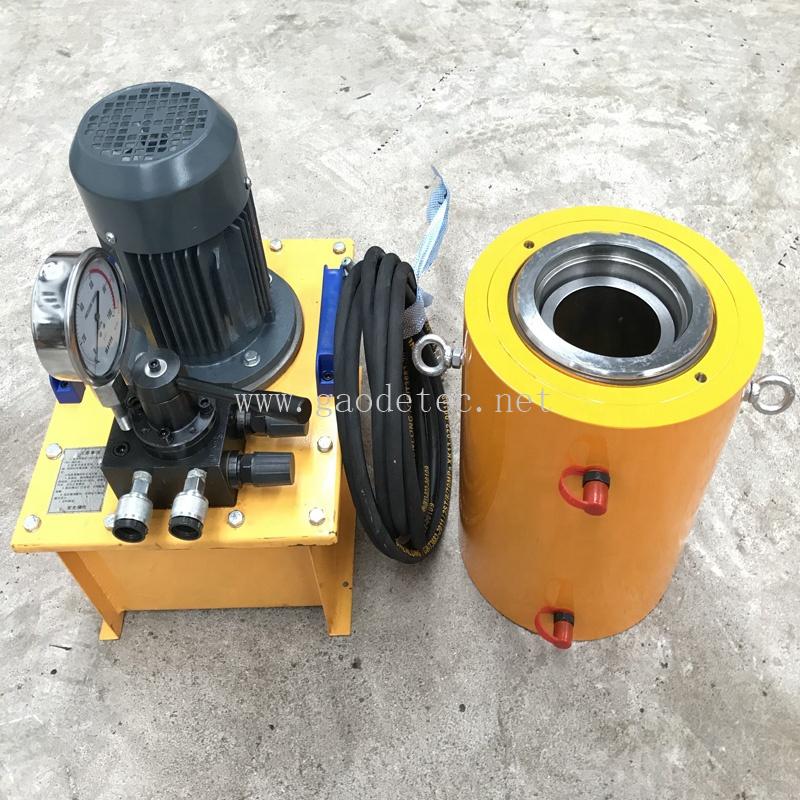

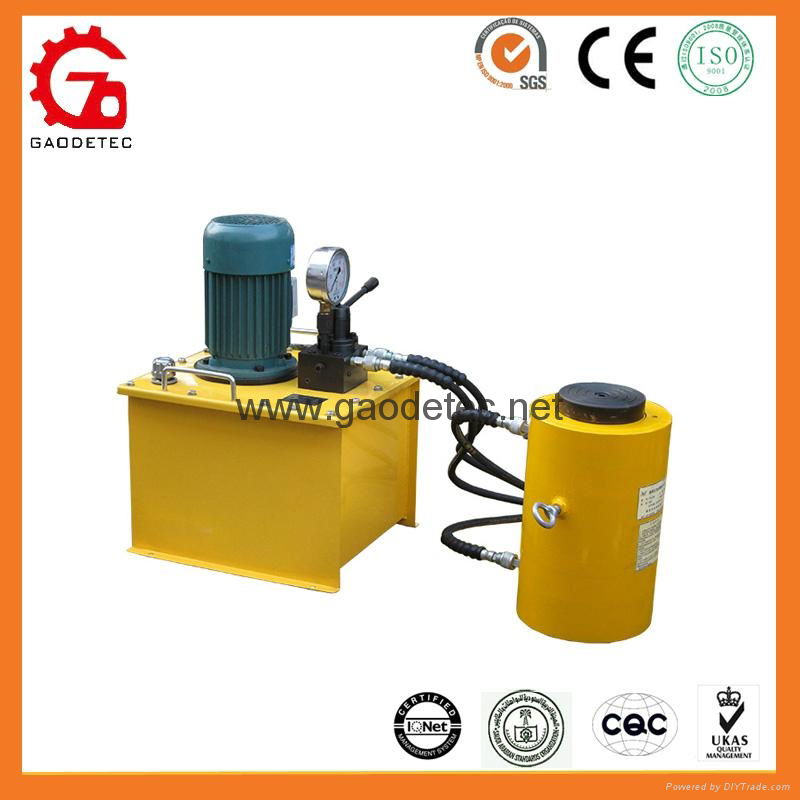

Electric Power Pack for Lifting Hydraulic Jack Cylinder

  • Electric Power Pack for Lifting Hydraulic Jack Cylinder
  • double acting electric power pack
  • electric oil pump for hydraulic cylinder
  • Electric Power Pack for Lifting Hydraulic Jack Cylinder
  • Electric Power Pack for Lifting Hydraulic Jack Cylinder
  • Electric Power Pack for Lifting Hydraulic Jack Cylinder
  • Electric Power Pack for Lifting Hydraulic Jack Cylinder
  • Electric Power Pack for Lifting Hydraulic Jack Cylinder
  • Electric Power Pack for Lifting Hydraulic Jack Cylinder
  • Electric Power Pack for Lifting Hydraulic Jack Cylinder
  • Electric Power Pack for Lifting Hydraulic Jack Cylinder
  • electric power pack
Model No.︰HBD
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 99 / set
Minimum Order︰1 set
Share on:

 Total 30 Related Items
Prev910111213Next

Product Description

electric power pack for lifting hydraulic jack cylinder

1) Describe:

  Electric powwer pack is made of 3 phase asynchronous motor, low pressure power pack, high pressure power pack and oil box. Small dimension, high pressure, light weight, simple structure, and it has a spare joint for connecting oil gauge. If the oil pump is matched with other hydraulic tool, it can supply driven for lifting, profiling, bending pipe, straightening, tearing down, cutting, installing, gauging pipe, punching and etc. It can reduce labour strength and increase working efficiency.

  GBD series of ultrahigh pressure single acting electric power pack is single outlet, high-low pressure pump, parallel type hydraulic power pack, high-low pressure pump supply oil at the same time when low pressure, it can get the large output flow; low pressure pump automatically unloading back the oil via control valve when high pressure, it can reduce the consumption of electric motor and heat of oil, it has the function of stop machine to protect pressure, single oil-way backing oil and etc.

2) Technology data:

Model

Rated pressure

Mpa

Rated flow

L/min

Oil capacity

L

Power of electric motor

Kw

Weight

Kgs

Remark



High pressure

Low pressure

High pressure

Low pressure

GBD-0.8M

80(100)

/

0.8

/

16

1.5

49

Single pump, single oil-way

GBD-2M

63

/

2

/

20

2.2

63

GBD-3M

63

/

3

/

36

3

80

GBD-4M

63

/

4

/

40



91

GBD-5M

63

/

5



0



91

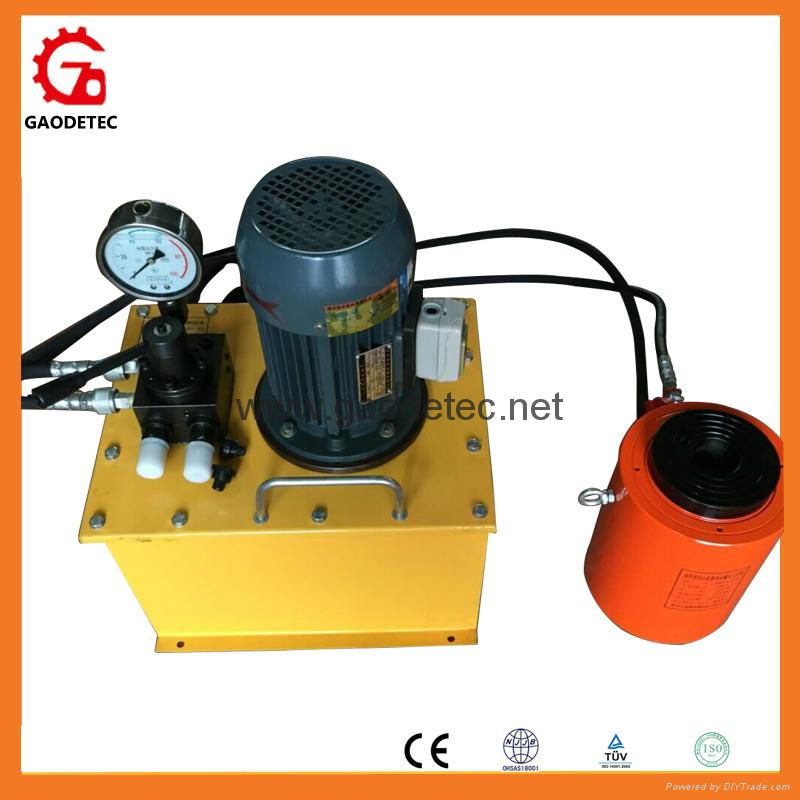

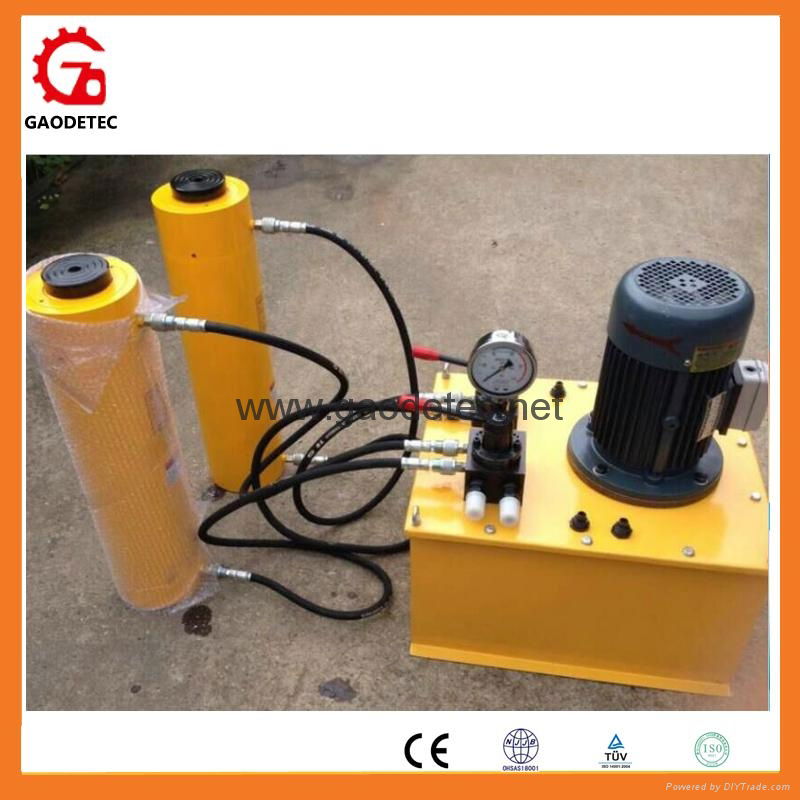

Double Acting Electric power pack

1) Describe:

This ultrahigh pressure double acting electric power pack is a complete hydraulic power pack, it is made of oil pump, control valve, oil box, motor, oil gauge and etc.

2) Features:

1) small dimension, light weight, convenient usage, high working pressure.

2) Single stage pump station: simple structure, it can get higher working pressure.

3) Double stage pump station: high-low pressure pump supply oil at the same time when low pressure, it can get the large output flow; low pressure pump automatically unloading back the oil via control valve when high pressure, it can reduce the consumption of electric motor.

4) holding function: at the condition that outer oil-way is no reveal, stop the pump for holding 5 minters, rated pressure reduce less than 5Mpa.

3) Application:

1) the oil pump is matched with other hydraulic tool, it can supply driven for lifting, profiling, bending pipe, straightening, tearing down, cutting, installing, gauging pipe, punching and etc.

2) It also can be installed into some machine for supplying power pack.

3) As test pressure pump station for kinds of high pressure hydraulic component, high pressure container, high pressure rubber hose.

4) Technology data:

Model

Max. Pressure

Mpa

Low pressure

Mpa

High pressure flow

L/min

Low pressure flow

L/min

Power

Kw

Voltage

V

Oil capacity

L

HDB-0.55

80

2

0.4

1

0.55

220/380

5

HDB-0.75

80

2

0.7

2.5

0.75

220/380

10

HDB-1.1

80

2

1

4

1.1

220/380

40

HDB-1.5

80

2

1.1

6

1.5

220/380

40

HDB-2.2

80

2

2.5

6

2.2

380

40

HDB-3

80

2

3

6

3

380

60

HDB-4

80

2

3.2

6

4

380

60

HDB-5.5

80

2

4.5

10

5.5

380

90

HDB-7.5

80

2

6

12

7.5

380

90

HDB-11

80

2

9

15

11

380

120

HDB-15

80

2

12

50

15

380

150

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden case or carton
Lead Time︰In stock
Standards Certificate︰CE ISO
