HBT-D series diesel concrete pump machine

concrete pump for sale in uae
  • concrete pump for sale in uae
  • lightweight concrete pump
  • concrete pump in india
  • concrete pump wholesale
  • stationary concrete pump for sale
  • ready mix concrete pump
  • small concrete pump
  • concrete trailer pump
  • malaysia concrete pump
  • diesel concrete pump
  • concrete injection pump
Model No.︰HBT-D series
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 15000 / set
Minimum Order︰1 set
Share on:

 Total 7 Related Items
12345Next

Product Description

HBT-D series diesel concrete pump machine

In order to meet the demand of open country and other no power supply constructions, we research and developed the diesel engine concrete pump. Our concrete pump is set of mechanical, electrical and hydraulic technology as one, with reliable performance of smooth operation and strong pumping capability. The diesel engine is with advanced high quality, low emission, low fuel consumption, meet the advanced standard. Reliability and stability is guaranteed by automatic engine regulation.



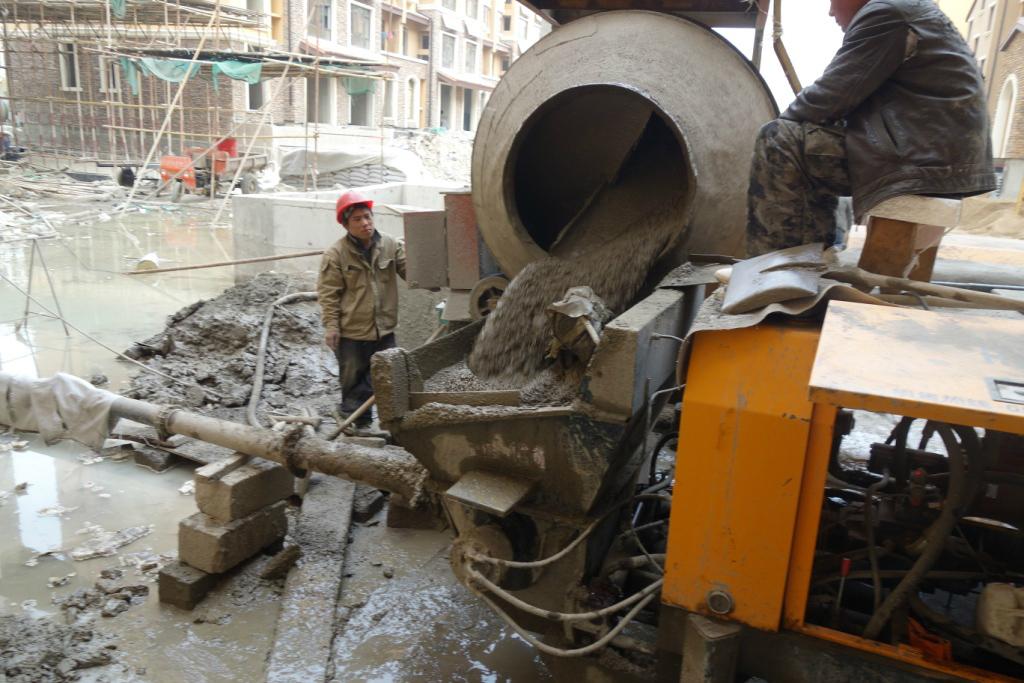

Application of diesel concrete pump

1) Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete;
2) Convey all kinds of engineering construction in the plain concrete, fiber concrete;
3) Conveying or injection of refractory and thermal insulation material;
4) Conveying or jet of greening soil on the construction of ecological environment;
5) Conveying or injection of plain concrete and fiber concrete for all kinds of engineering construction;
6) Pressure grouting of all kinds of foundation pile.

Model No. HBT20-10D HBT25-8D HBT30-10D HBT40-12D HBT60-12D HBT80-16D
Max. theoretical concrete output (m³/h) 12 21 25 16 30 26 40 32 60 53 84
Max.theoretical concrete pumping pressure (Mpa) 10 5.5 8 10 5.5 12 7.3 12 6 16 9.5
Theoretical vertical conveying distance (m) 130 130 130 150 130 180
Theoretical horizontal conveying distance (m) 350 350 350 400 400 500




 Max. Aggregate


φ89mm 20 20 20
φ108mm       30
φ133mm       40 40 40
φ150mm         45 50
Slump (cm) 12-23 12-23 12-23 12-23 12-23 12-23
Concrete tube conveying diameter (mm) φ89 φ89 φ89 φ133 φ133/φ150 φ133/φ150
Cylinder  (pieces) 2 2 2 2 2 2
Concrete cylinder diameter*route Φ140×1000 Φ140×1000 Φ140×1000 Φ160×1300 Φ180×1300 Φ200×1650
Hydraulic oil tank volume (L) 180 260 300 370 370 370
Filling height (mm) 1100 1100 1100 1200 1200 1400
Hopper volume (m³) 0.35 0.4 0.4 0.4 0.6 0.8
Rated diesel power 40KW 49KW 46KW 82KW 82KW 129KW
Overall dimension (L×W×H) (m) 4.3*1.67*1.68 4.3*1.67*1.68 4.3*1.67*1.68 4.75*1.75*1.8 4.8*1.75*1.6 6.2*1.8*1.8
Total weight (kg) 2500 3500 3800 4000 4000 6500

System introduction of concrete pump machine:

I. Hydraulic system
1. The products adopts double-pump and double-circuit open hydraulic system. The pumping hydraulic circuit and S valve swing post hydraulic circuit work separately, which makes the system simple, component life extension, higher reliability, and is easy to fault judgment and ruled out.
2. In view of the weaknesses of big reversing impact of start system, technology is used to pumping hydraulic system to control pilot relief, which avoids the reversing impact and makes the main pumping hydraulic system more reliable and stable.
3. Pumping hydraulic system has safety overflow protection. At the same time, when system is over pressure, oil pump pressure automatically cuts off the interception device to make the main pump obtain more reliable protection.
4. Swinging oil-way adopts constant pressure pump to supply oil. It has great swinging strength and energy-saving function.
5. All pipe line adopt taper sealing or rectangle sealing, and pipe joint sealing is reliable.

II. Electric control system The outstanding features of electric control system is advanced technology, easy operation and high reliability.
1. 90% of the electric elements are supplied by Mitsubishi Japan, which guarantees high reliability.
2. Compared with the domestic similar products, the electric control system is most simple, with the minimum quantity of components and highest reliability.
3. With wire remote control, it could be convenience to operate.
4. The adopted contactless commutation of proximity switch ensure the reversing reliable.

III. Mechanical (mixing) distributing valve system
1. The design of the main force-summing element, such as hopper and S valve, adopt the mechanical engineering mechanics calculating program. Through this subdivision mesh finite element calculation to its stress state, structure system, the condition of stress concentration, the hopper and S valve have good structure steel level and manufacturability, which is useful to avoid the phenomenon of hopper distortion and S valve broken in the condition of high-rise pumping.
2. The agitator has unique structure, which totally separates the hydraulic motor and agitator bearing block. It will not influence the hydraulic motor even if there is seal abrasion and slurry leak. Meanwhile, using single motor can avoid the agitator’s mixing torque out of sync caused by bi-motor under the condition of the concrete material abnormal.
3. The service life of wearing parts such as spectacle plate and cutting ring is long after continuous technical research. On the best pumping condition, it can pump 20000m3.

IV. Lubrication system
The lubrication system has concentrating automatic lubrication system; Pressure increment device and filter are fixed on output port of lubrication pump to ensure the lubrication system more reliable.


V. Cooling system The big radiator equipment of forced cooling makes the working oil temperature of hydraulic system below 60°and ensures the host of the hydraulic system in a normal state.

Features of diesel concrete pump machine

1. Intelligent power control system to regulate the engine speed automatically, for smooth and efficient operation
2. Plunger pump with constant power, to ensure the efficiency of main engine
3. High delivery pressure for demand of high-rise and long distance projects
4. Good sealing S-valve, installed with floating wear resistant ring
5. High-quality wear resistant alloy components for long service-life
6. Air cooling system, without dependence of external water
7. PLC system to ensure best control performance
8. With re-pumping function to smooth construction of better accessibility
9. Equipped with wireless remote controller, easy to operate

Payment Terms︰TT / LC
Packing︰container delivery or as requested
Lead Time︰10 working days.
Standards Certificate︰ISO
Product Image

concrete pump for sale in uae
concrete pump for sale in uae

lightweight concrete pump
lightweight concrete pump

concrete pump in india
concrete pump in india

concrete pump wholesale
concrete pump wholesale

stationary concrete pump for sale
stationary concrete pump for sale

ready mix concrete pump
ready mix concrete pump

small concrete pump
small concrete pump

concrete trailer pump
concrete trailer pump

malaysia concrete pump
malaysia concrete pump

diesel concrete pump
diesel concrete pump

concrete injection pump
concrete injection pump
