GD70 portable DTH drilling machine

  • GD70 portable DTH drilling machine
  • GD70 portable DTH drilling machine
  • GD70 portable DTH drilling machine
  • GD70 DTH drilling machine supporting air compressor
  • portable mini drilling rig manufacturing supplier
  • small portable drilling rig delieve to Malta
  • DTH drilling rig is used for slope drilling
Model No.︰GD70
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 set
Share on:

 Total 10 Related Items
Prev56789Next

Product Description

The Ultimate combination of performance and economy. DTH system delivers the highest-possible drilling performance at low running cost. DTH used in variety heavy industry. It is used to drill blasting holes like small to medium mining projects., national defense projects, irrigation projects, road construction and etc.And it is also the indispensable drilling equipment open-air mine drilling for open pit mining in early stage, especially suitable for rugged terrain where other drilling rig can’t operate normally.  Our down-the-hole drill is ideal equipment for down-hole blasting.

Features: compact structure, convenient operation, high efficiency, good detachability for easy moving.

Working Principle

GD70 electric drilling rig is the equipment that converts the electric energy and compressed air into mechanical energy to break rock. After electrify, the drilling tool is driven by the torque produced by cycloidal reducer through the intake seat. Compressed air are divided into two way after going through oil mist device and pneumatic valve: one way enters into the cavity of promoting cylinder, which produces an axial force drives the drilling tool to promote or elevate through the cylinder piston and guide rod; the other way enters into the impactor through the intake seat, so as to achieve impact drilling.

Model GD70
Dia. Of hole 60-80mm
Drilling depth ≥15m
Rotating speed 0-125rpm
Working pressure 0.5-0.7Mpa
Air consumption ≥3.5m³/min
Lift power 3600N
Rod Φ40mm*1000mm
Motor power 3kw
Overall dimension 2110*420*600mm
Weight 350Kg
Payment Terms︰TT/LC
Packing︰Plywood box or as your request
Lead Time︰15days
Standards Certificate︰ISO CE
Product Image




GD70 DTH drilling machine supporting air compressor
GD70 DTH drilling machine supporting air compressor

portable mini drilling rig manufacturing supplier
portable mini drilling rig manufacturing supplier

small portable drilling rig delieve to Malta
small portable drilling rig delieve to Malta

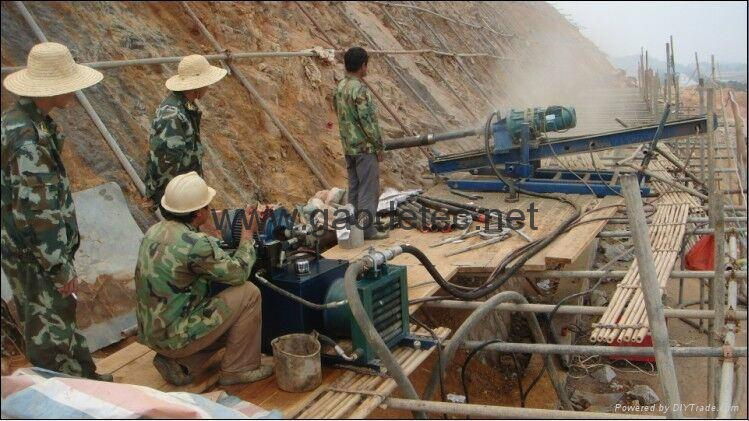

DTH drilling rig is used for slope drilling
DTH drilling rig is used for slope drilling
