GEC100 pneumatic drilling machine

directional drilling
  • directional drilling
  • Gold mining drilling rig related spare parts
  • Portable drilling rig is used for slope drilling
  • portable DTH drill rig air pipe
  • down the hole drilling rig supporting air compressor
  • Horizontal directional small portable drilling rig transport for Nepal
  • directional drilling
Model No.︰GEC100
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 3000 / set
Minimum Order︰1 set
Share on:

 Total 10 Related Items
Prev45678Next

Product Description

GEC100 pneumatic drilling machine

The Ultimate combination of performance and economy. DTH system delivers the highest-possible drilling performance at low running cost. DTH used in variety heavy industry. GEC100 drilling machine is high performance-all sir driven diwn the hole drill. Advance, rotary and impact all powered by compressed air. Simple structure, dynamic single, convenient relocation,Steering structure centralized, convenient manipulation. The unique dual mufflers, good silencer effect, which greatly reduce the environmental pollution.

Application:

It is used to drill blasting holes like small to medium mining projects., national defense projects, irrigation projects, road construction and etc. Our down-the-hole drill is ideal equipment for down-hole blasting.

 Model GEC100
Dia. of hole 80-100mm
Drilling depth ≥20m
Rotating speed 0-62rpm
Working pressure 5-7bar
Air consumption ≥6 m³/min
Lift power 9600N
Rod Φ60mm*1000mm

Recommended Compressor:

Type   Diesel air compressor
Air consumption 10m3
Engine 0.7Mpa
Engine Yuchai 6108ZG
Overall dimension 3500*1700*2100mm
Weight 3100Kg



Payment Terms︰TT/LC

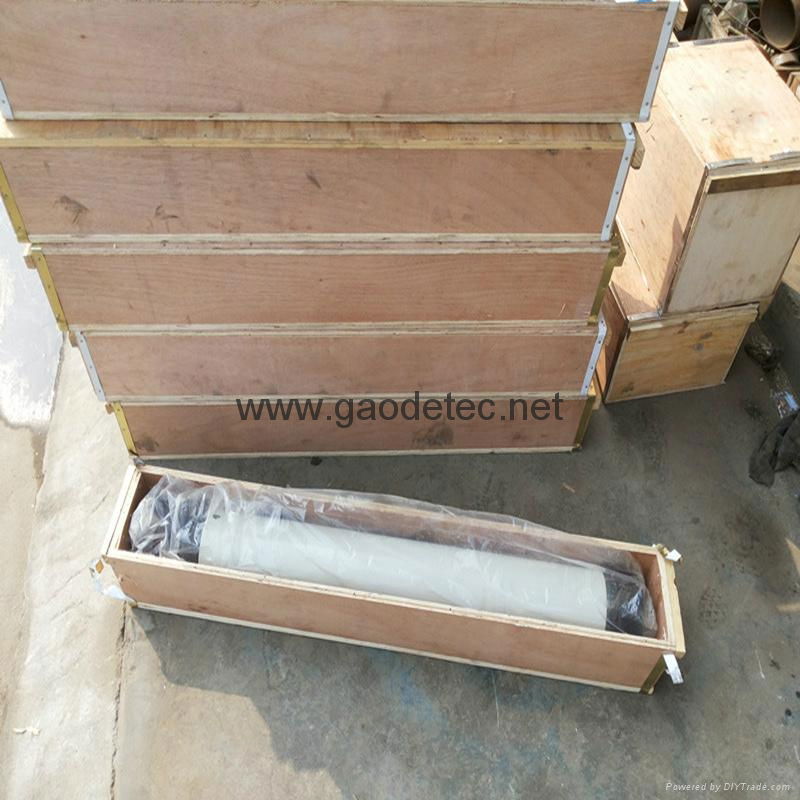

Packing︰Plywood box or as your request
Lead Time︰15days
Standards Certificate︰ISO CE
