GD90 hydraulic&pneumatic borehole drilling rig

  • GD90 hydraulic&pneumatic borehole drilling rig
  • drilling tools for sale
  • GD90 hydraulic&pneumatic borehole drilling rig
  • GD90 hydraulic&pneumatic borehole drilling rig
  • GD90 hydraulic&pneumatic borehole drilling rig
  • deliver drilling rig and air compressor to Nepal
Model No.︰GD90
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 2420 / set
Minimum Order︰1 set
Share on:

 Total 10 Related Items
Prev12345Next

Product Description

GD90 hydraulic&pneumatic borehole drilling rig is a high adaptability rock drill, it has simple structure, easy operation, low price, energy saving.

The DTH drill machine can also drill vertical and horizontal blast hole, especially it has low center of gravity and detachability is good, so movement and transportation are convenient.

Technical specification:

Type           Hydraulic&pneumatic drilling rig
Dia. of hole 80-100mm
Drilling depth 20m
Drilling rod 60*1000mm
Rotating speed 0-75rpm
Working pressure 0.5-0.7Mpa
Air consumption 6 m³/min
Lift power 15000N
Machine Power 12.13kw
Overall dimension 2300*1100*950mm
Weight 700kg

Note: including hydraulic power pack



Payment Terms︰TT/LC
Packing︰standard export packing or as your request
Lead Time︰15 days after payment
Standards Certificate︰ISO CE
Product Image

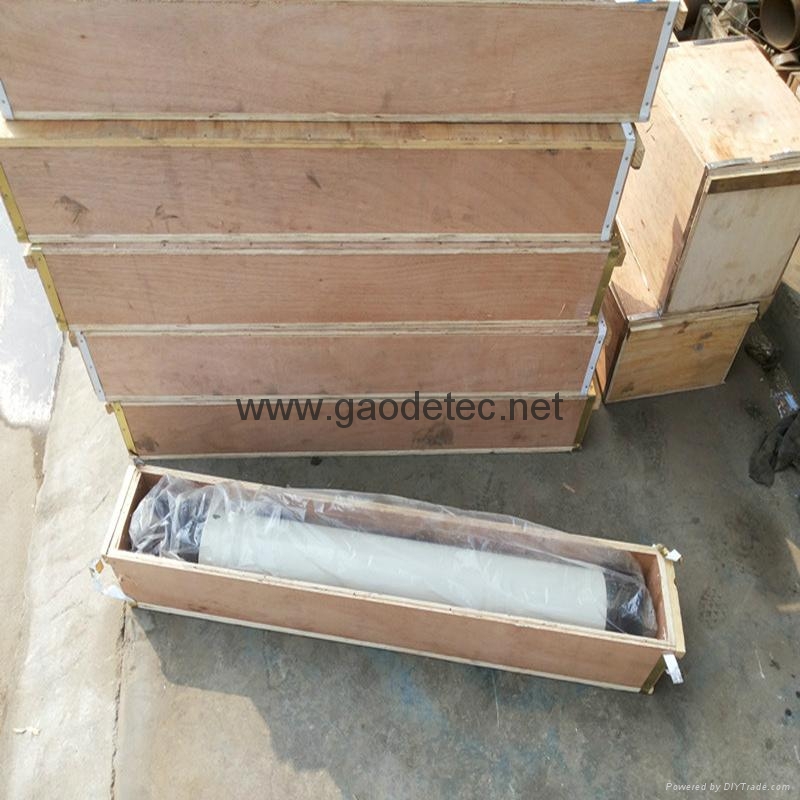

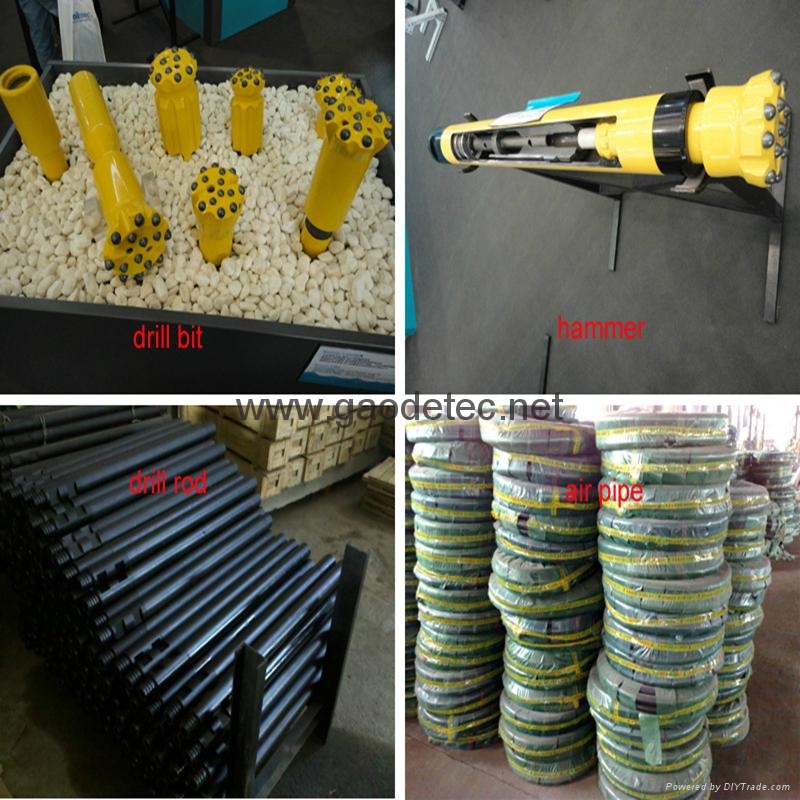

drilling tools for sale
drilling tools for sale

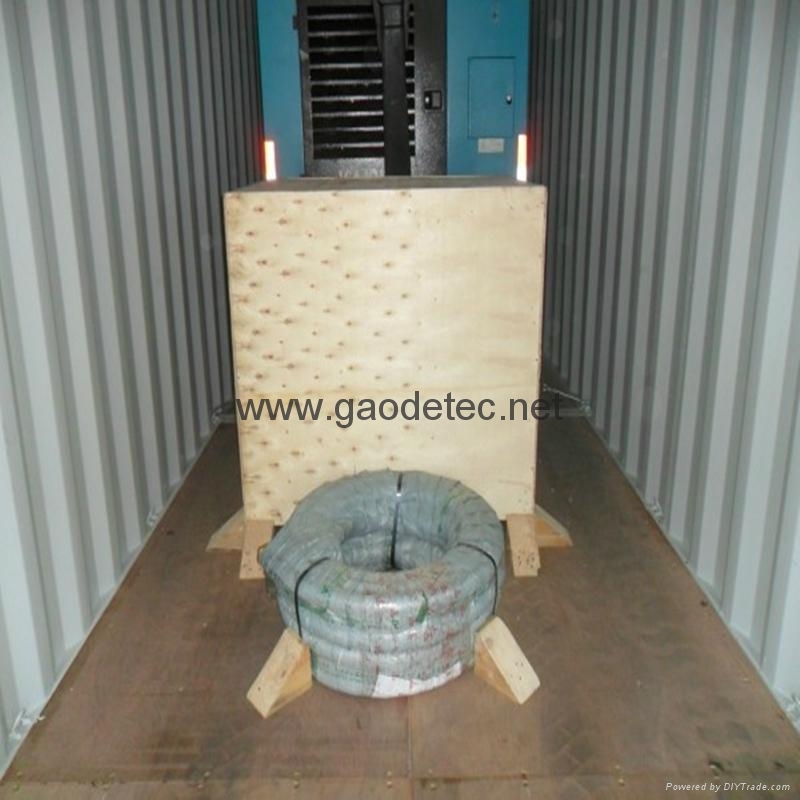

deliver drilling rig and air compressor to Nepal
deliver drilling rig and air compressor to Nepal
