GD160 portable DTH drilling rig

  • GD160 portable DTH drilling rig
  • drill bit hammer drilling pipe air pipe
  • air compressor work with drilling rig
  • DTH drilling rig factory
  • GD160 portable DTH drilling rig
  • Deliver DTH drilling rig to Philippines
  • Our DTH drilling machine is used for slope drilling
Model No.︰GD160
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 2800 / set
Minimum Order︰1 set
Share on:

 Total 10 Related Items
12345Next

Product Description

GD160 portable DTH drilling rig

The Ultimate combination of performance and economy. DTH system delivers the highest-possible drilling performance at low running cost.

Application:

DTH used in variety heavy industry. It is used to drill blasting holes like small to medium mining projects, national defense projects, irrigation projects, road construction and etc. Our down-the-hole drill is ideal equipment for down-hole blasting.

Specification:

Model GD160
Dia. Of hole 90-168mm
Drilling depth 30-50m
Rotating speed 60rpm
Working pressure 0.7-1.4Mpa
Air consumption ≥15 m³/min
Lifting force 12000N
Drill rod Φ75mm*1500mm
Motor power 11kw
Overall dimension 3400*1120*1300
Weight 1200Kg
Payment Terms︰TT/LC
Packing︰Plywood box or as your request
Lead Time︰within 15 workdays after receiving prepayment
Standards Certificate︰ISO CE
Product Image


drill bit hammer drilling pipe air pipe
drill bit hammer drilling pipe air pipe

air compressor work with drilling rig
air compressor work with drilling rig

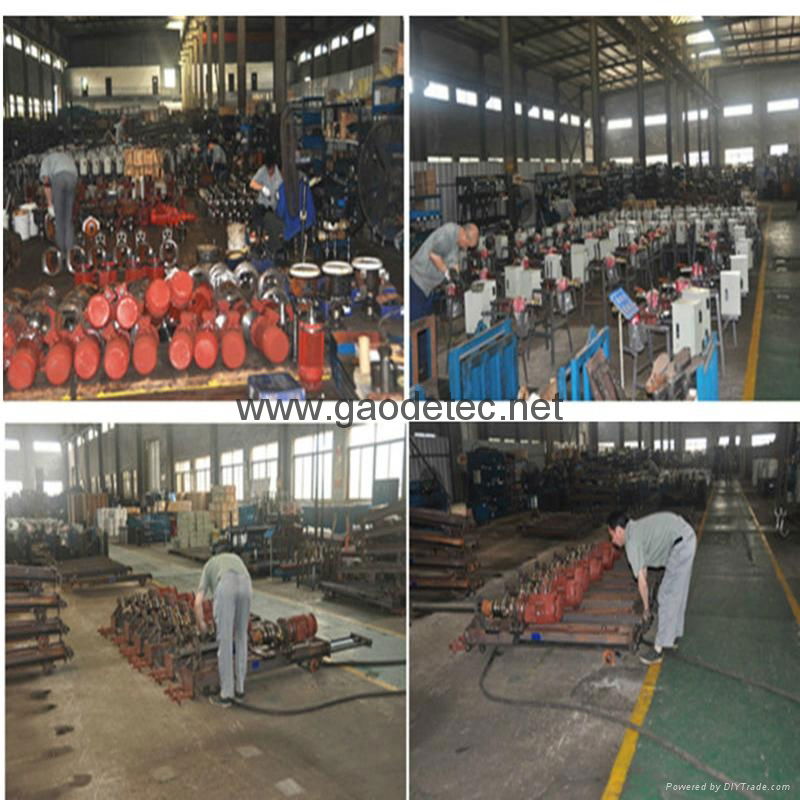

DTH drilling rig factory
DTH drilling rig factory


Deliver DTH drilling rig to Philippines
Deliver DTH drilling rig to Philippines

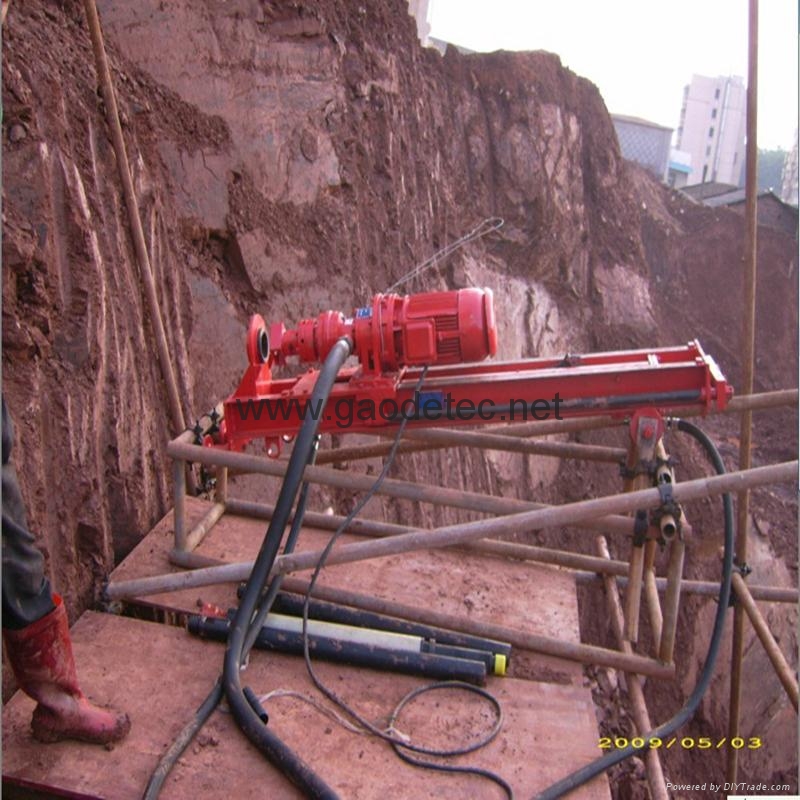

Our DTH drilling machine is used for slope drilling
Our DTH drilling machine is used for slope drilling
