JBT30 P1 small portable concrete pump with mixer

mixer with concrete pump
  • mixer with concrete pump
  • concrete pump with mixer
  • concrete pump for sale india
  • portable concrete mixer and pump
  • mobile concrete mixer with pump
  • concrete mixer with pump
  • mini concrete mixer pump
  • concrete mixer pump trailer
  • diesel concrete mixer with pump
  • diesel concrete mixer pump
  • concrete mixing pump
Model No.︰JBT30 P1
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 27500 / set
Minimum Order︰1 set
Share on:

 Total 6 Related Items
Prev23456

Product Description

Portable concrete pump with mixer is combined by the traditional concrete pump and the mixer together. It achieves full automatic during concrete construction process.

Application of concrete pump with mixer

Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
Convey greening soil in ecological environment construction.
Convey all kinds of engineering construction in the plain concrete, fiber concrete.
Most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.

 Features of concrete pump with mixer

1. Mixer and pump in one machine.
2. Transfer concrete through pipeline. It is fast and safe.
3. It has small size and suitable for more special environment.
4. Optional part: cement boom, wireless remote control. This is easy to operate.

Technical data of concrete pump with mixer

Parameters

JBT30 P1

Main oil pump

Domestic / Kawasaki 112

Mixer model

JZM350

Main Oil Cylinder / Rod* stroke

100*70*800

The maximum theoretical delivery output

30m3/h

The maximum theoretical mix output

15m3/h

Vertical pumping distance

70m

Horizontal pumping distance

300m

Distribution valve type

S valve

Main motor

30kw

Rated speed

1480rpm

Outlet pressure

6Mpa

Hydraulic system

Open system

Oil tank capacity

200L

Concrete cylinder * stroke

200*800mm

Hopper capacity * feeding height

600*1050mm

Motor Rated Voltage

380V

Hoist motor

5.5kw

Mixing motor

4*2kw

Concrete outlet diameter

180mm

Electrical components

Domestic

Max. aggregate size

Cobblestone 40mm Gravel 30mm

Weight

4500kg

Dimension

4960*2100*2500

Payment Terms︰TT / LC
Packing︰In a 20GP container delivery or as requested
Lead Time︰10 working days
Standards Certificate︰ISO

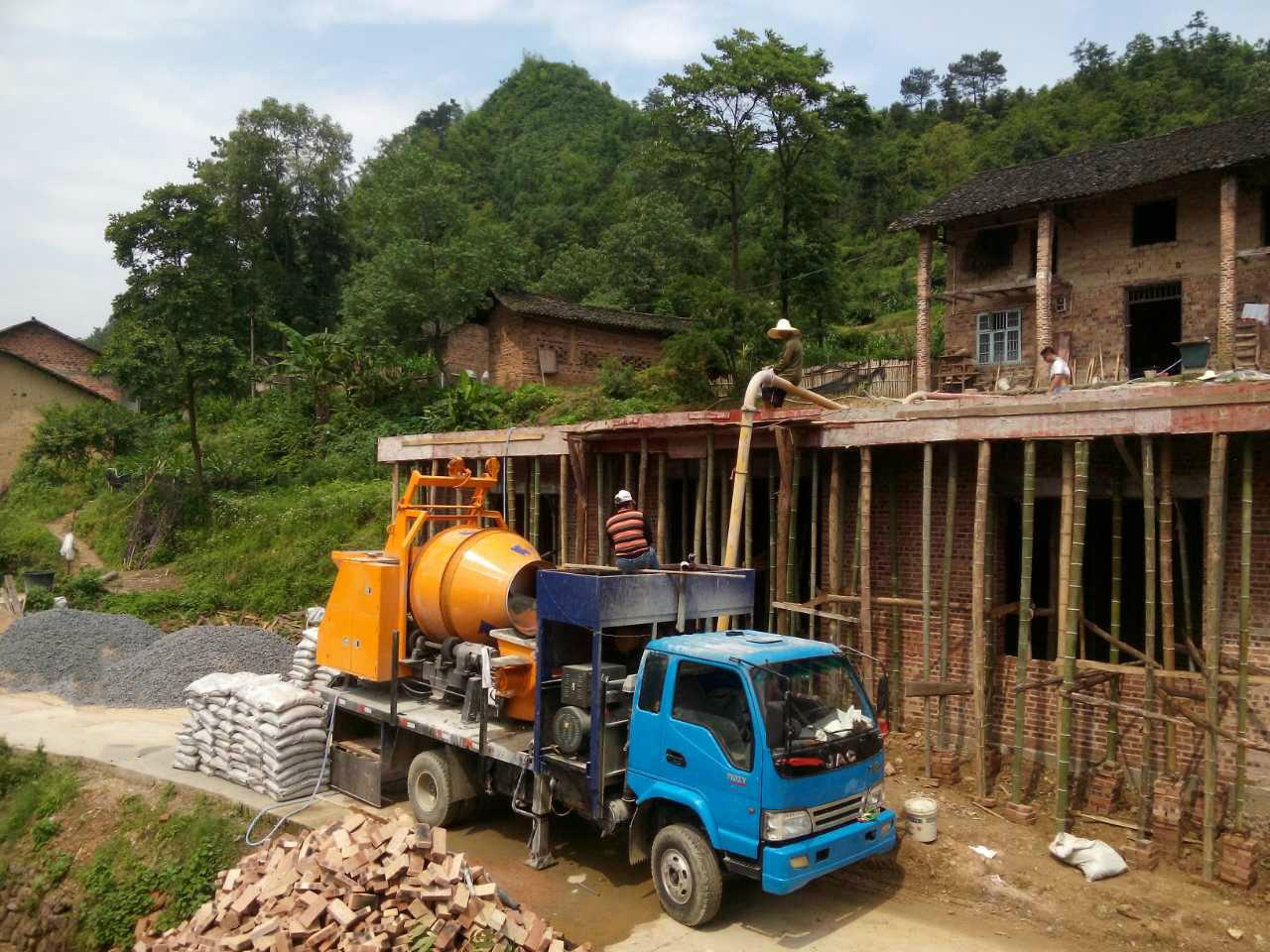

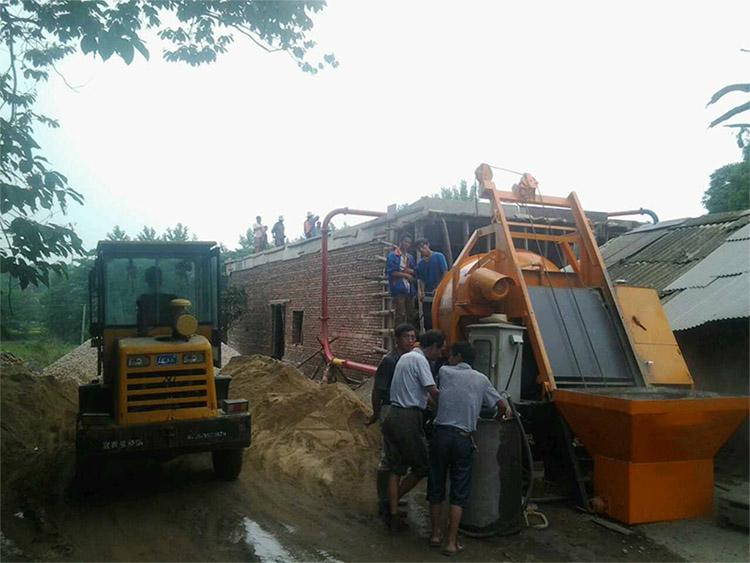

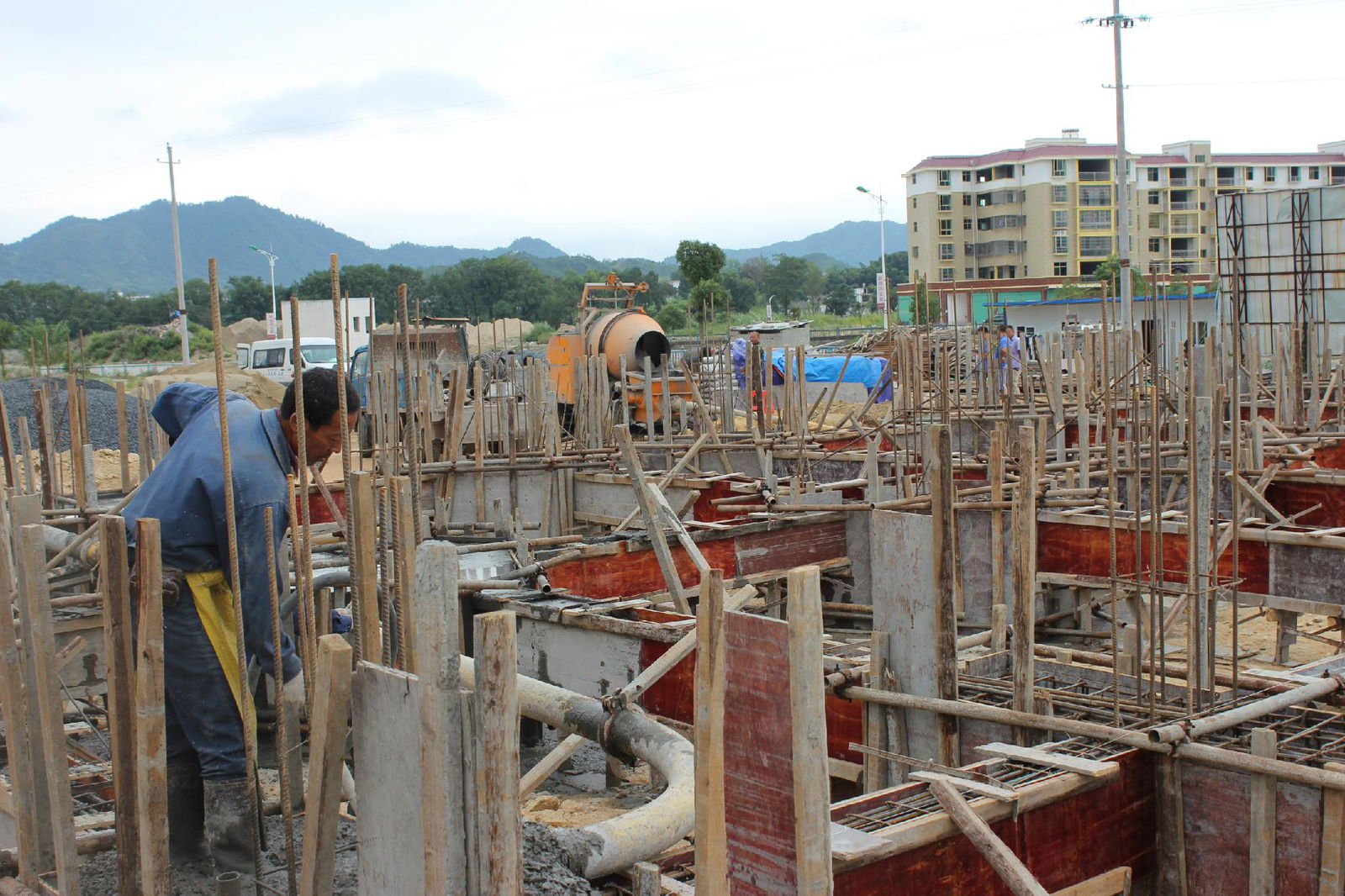

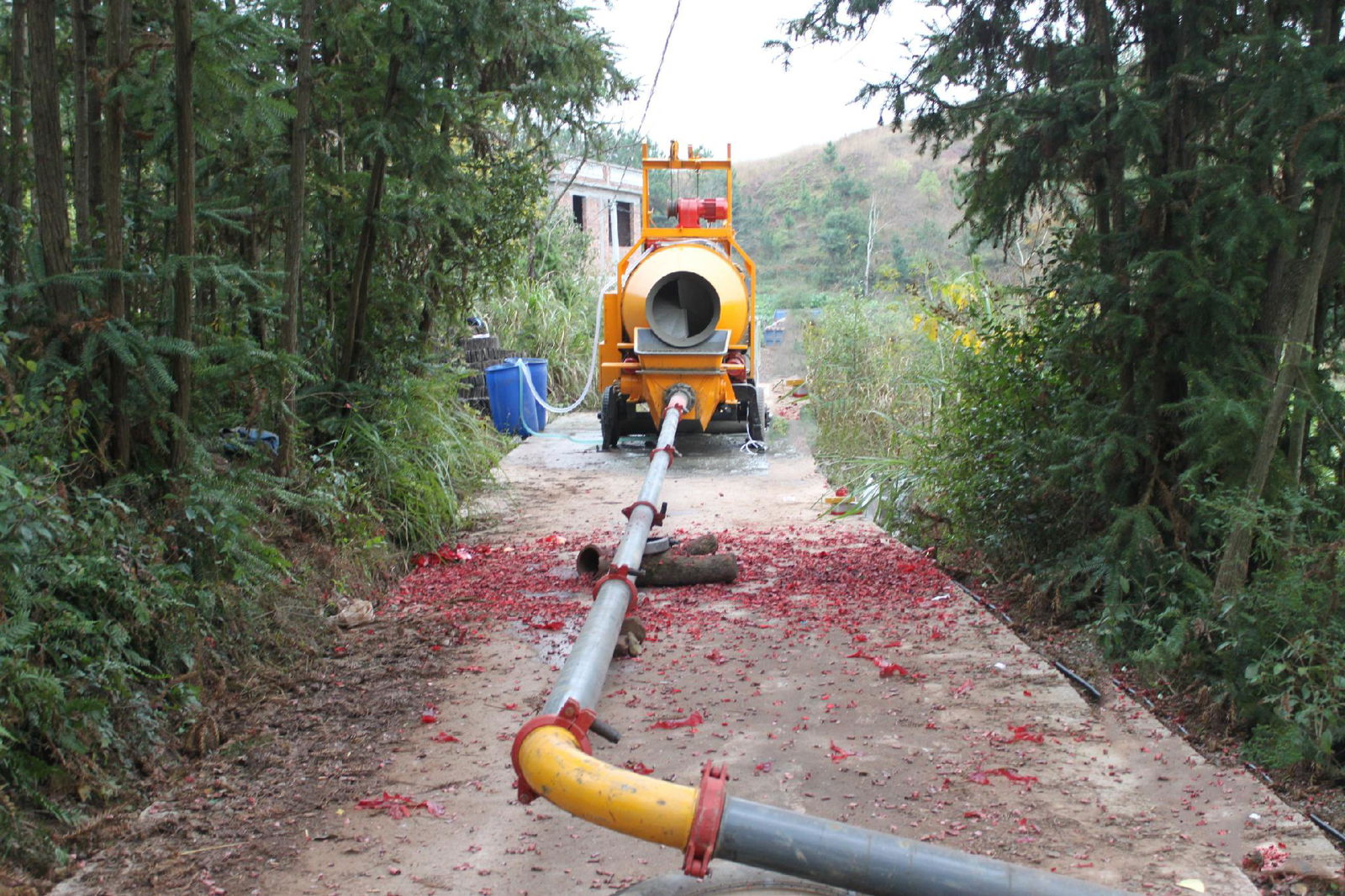

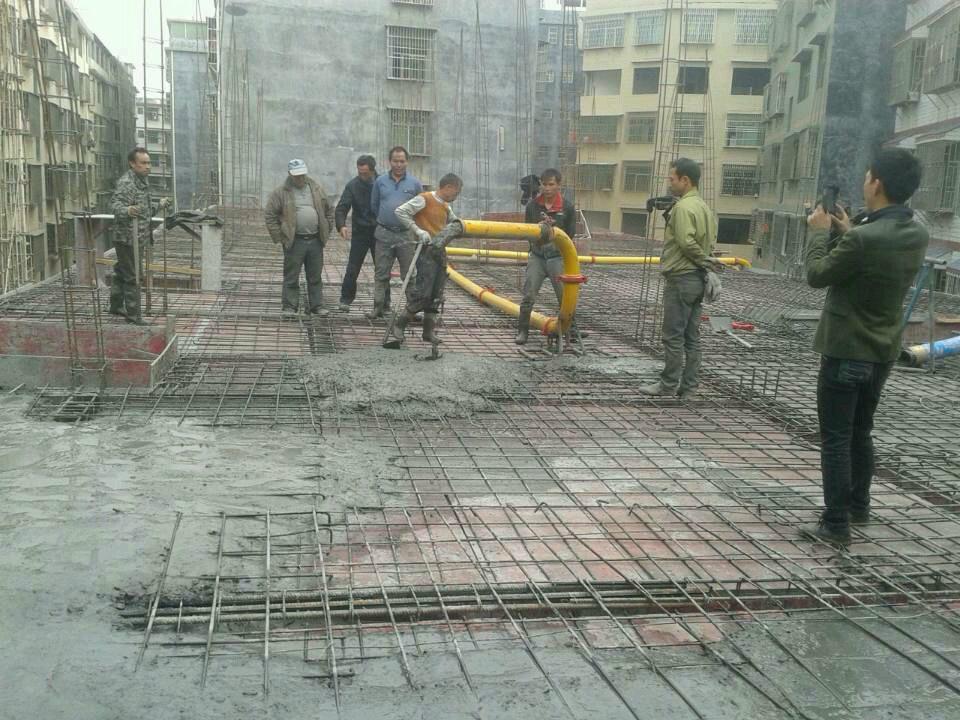

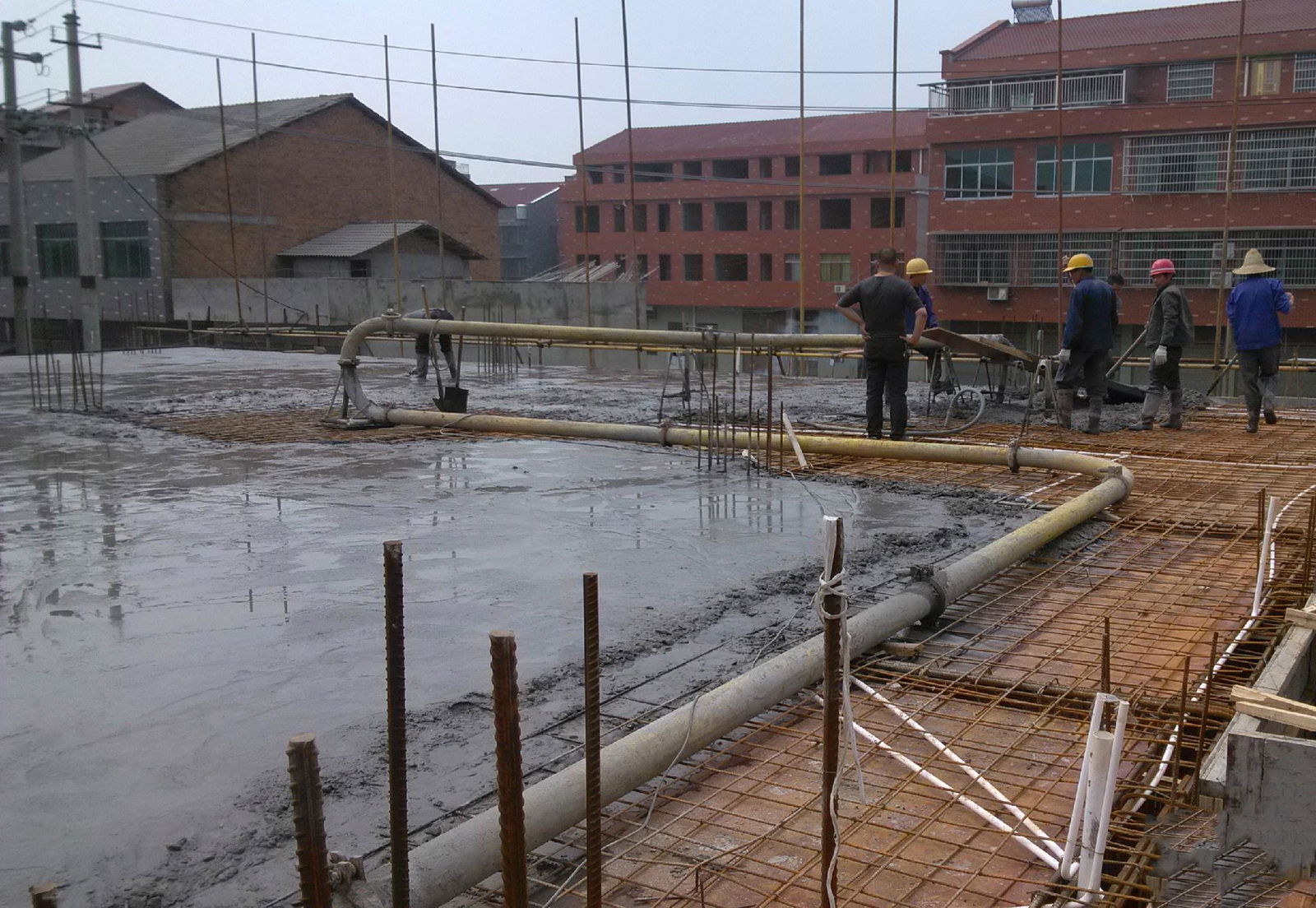

Product Image

mixer with concrete pump
mixer with concrete pump

concrete pump with mixer
concrete pump with mixer

concrete pump for sale india
concrete pump for sale india

portable concrete mixer and pump
portable concrete mixer and pump

mobile concrete mixer with pump
mobile concrete mixer with pump

concrete mixer with pump
concrete mixer with pump

mini concrete mixer pump
mini concrete mixer pump

concrete mixer pump trailer
concrete mixer pump trailer

diesel concrete mixer with pump
diesel concrete mixer with pump

diesel concrete mixer pump
diesel concrete mixer pump

concrete mixing pump
concrete mixing pump
