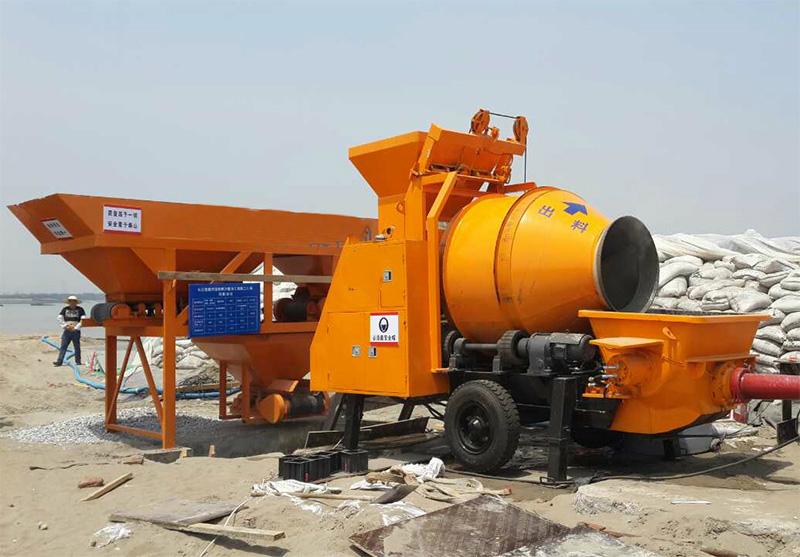

Description of concrete mixer and pump
Portable concrete mixer and pump is combined by the traditional concrete pump and the mixer together. It achieves full automatic during concrete construction process.
Application of concrete mixer and pump
Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
Convey greening soil in ecological environment construction.
Convey all kinds of engineering construction in the plain concrete, fiber concrete.

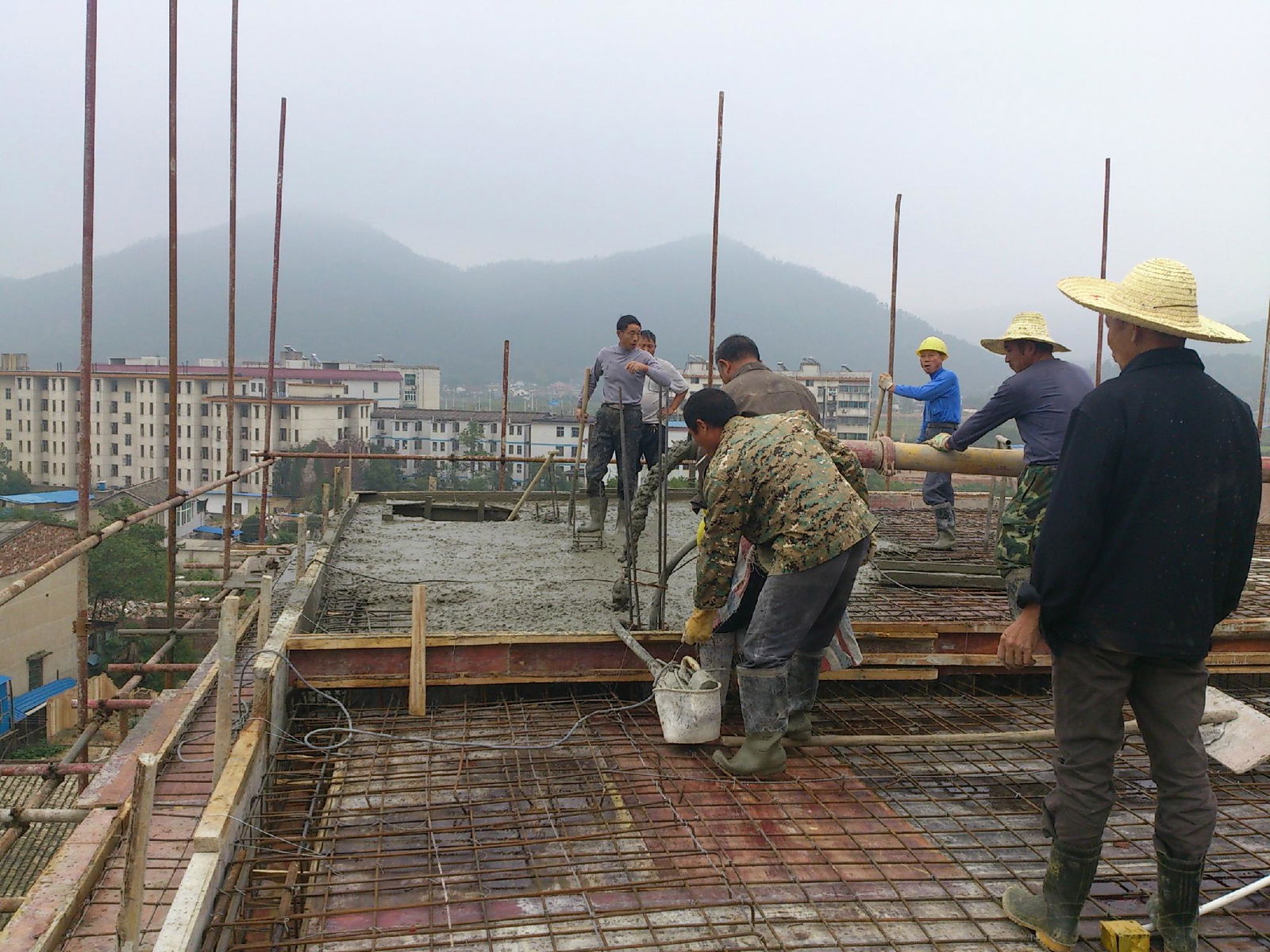

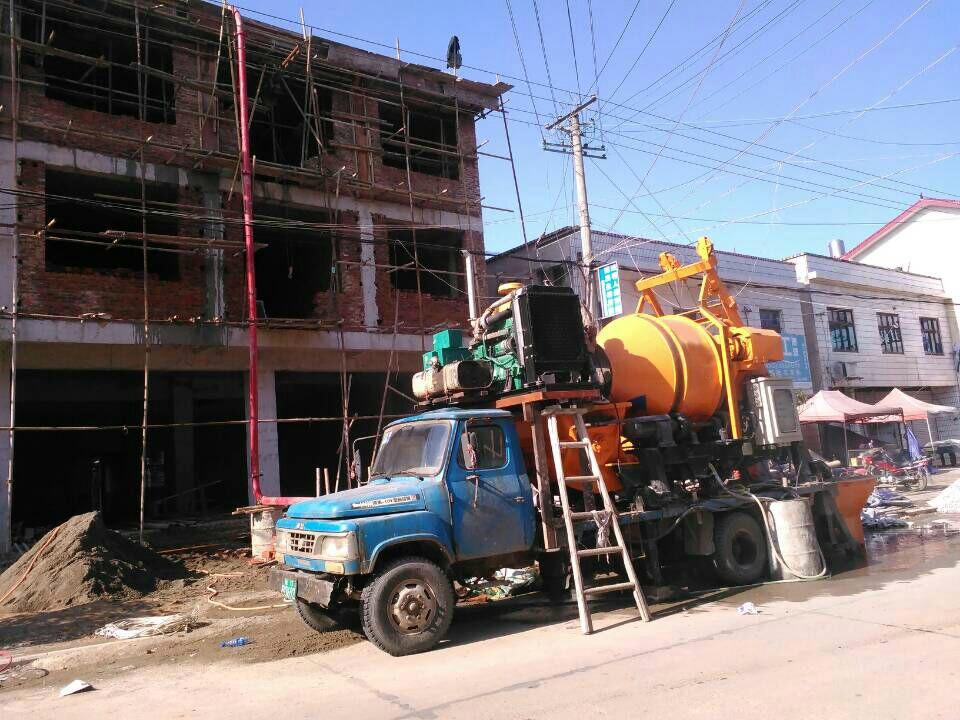

Most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.
Features of concrete mixer and pump
Mixer and pump in one machine.
Transfer concrete through pipeline. It is fast and safe.
It has small size and suitable for more special environment.
Optional part: cement boom, wireless remote control. This is easy to operate.
Technical data of concrete mixer and pump
|
Parameters
|
JBT40 P1
|
|
Main oil pump
|
Domestic /Kawasaki 112
|
|
Mixer model
|
JZM 450
|
|
Main Oil Cylinder/Rod * stoke
|
100*70*800
|
|
The maximum theoretical delivery output
|
40m3/h
|
|
The maximum theoretical mix output
|
18m3/h
|
|
Vertical pumping distance
|
70m
|
|
Horizontal pumping distance
|
300m
|
|
Distribution valve type
|
S valve
|
|
Main motor
|
37kw
|
|
Outlet pressure
|
8Mpa
|
|
Hydraulic system
|
Open system
|
|
Oil Cylinder * Rod *Stroke
|
100*70*1000
|
|
Concrete cylinder * stroke
|
200*1000mm
|
|
Hopper capacity * feeding height
|
800*1000mm
|
|
Motor Rated Voltage
|
380V
|
|
Hoist motor
|
5.5kw
|
|
Mixing motor
|
4*2kw
|
|
Concrete Outlet Diameter
|
180mm
|
|
Max. aggregate size
|
Cobblestone 40mm; Gravel 30mm
|
|
Weight
|
5300kg
|
|
Dimension
|
4960*2100*2600mm
|
