BW80/3 small suction pump mud manufacturers

Model No.︰BW80/3
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 2000 / set
Minimum Order︰1 set
Share on:

 Total 11 Related Items
Prev45678Next

Product Description

BW80/3 small suction pump mud manufacturers



BW series mud pump is widely used in mining, drilling, coal, railway, highway, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement works.

Advanced product design, reasonable structure, high pressure, flow, multi-file variable, energy saving, light volume, efficiency, plant life, safe operation, easy maintenance.



Main Features of mud pumps for drilling rigs:

Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, electric power or diesel engine.

BW series slurry pump is horizontal triplex grout pump with high stability and high pressure.

Mud pump has gear shift to adjust the flow, large output capacity, simple operation.

High quality pump parts, less wearing parts, long service life, low construction cost.

It has fast suction-discharge speed, high pump efficiency.

Mud pump has less noise and dust, environmental operation.



Application

MUD PUMP is used to transfer WATER, MUD and other FLUSHING FLUIDS when drilling in water well, oil and gas well area.

BW series MUD PUMP is used for conveying different liquids in petroleum, chemistry in industries.

Model

BW80/3 mud pump

Type

Horizontal three cylinder reciprocating single acting piston pump

Cylinder diameter (mm)

60

Stroke (mm)

50

Pump speed (times/min)

204       144       107

Flow (l/min)

80        57        42

Pressure (Mpa)

1         2         3

Power (Kw)

5.5

Shape size (mm)

1220*590*550

Weight (kg)

205

Payment Terms︰TT / LC
Packing︰Plywood case
Lead Time︰5 working days.
Standards Certificate︰ISO

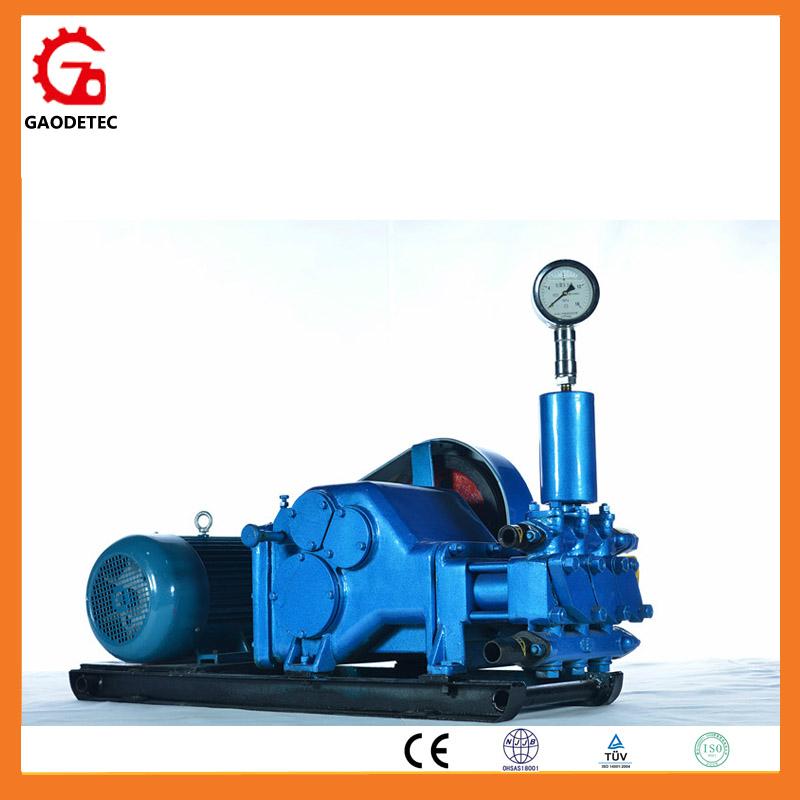

Product Image
