Thailand hot sale high shear grout station with factory price

grout station
  • grout station
  • grout station
  • grout station
  • grout station
  • grout station
  • grout station
  • grout station
  • grout station
  • grout station grout station grout station
Model No.︰GGP200/300/100
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 12000 / set
Minimum Order︰1 set
Share on:

 Total 73 Related Items
Prev2526272829Next

Product Description

Thailand hot sale high shear grout station with factory price

Grout Station Description:

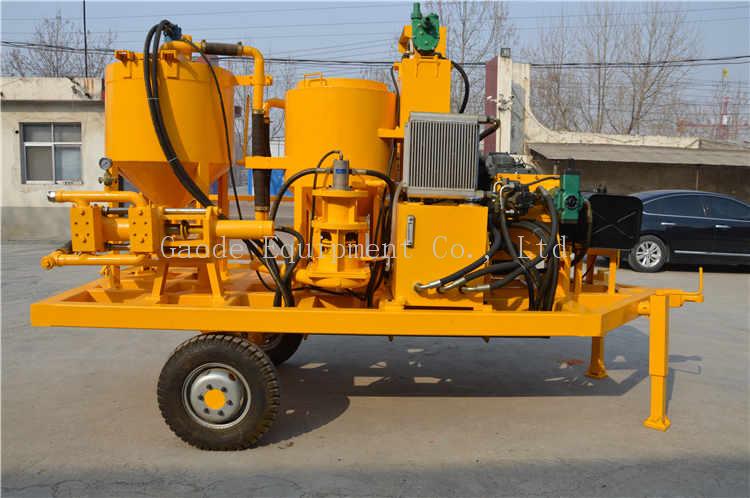

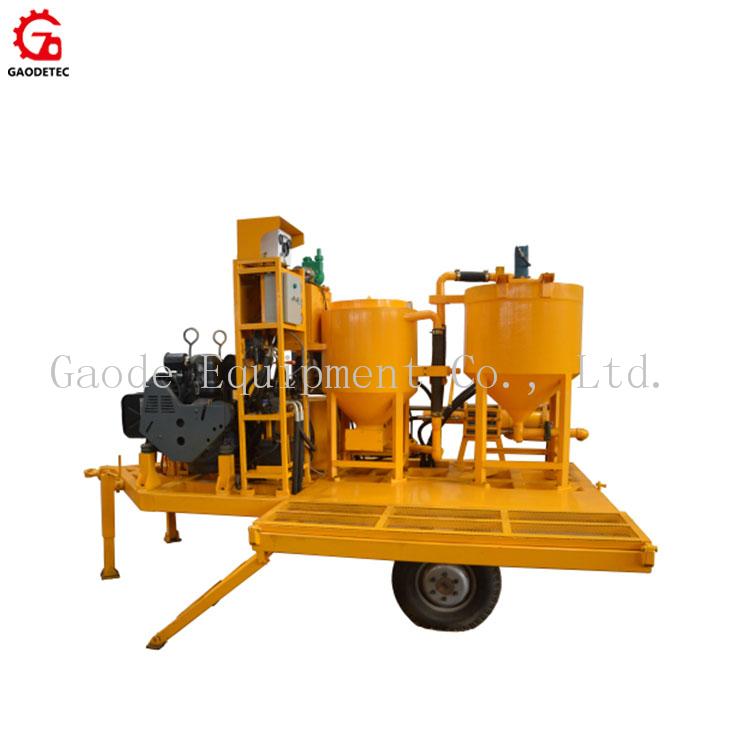

The GGP200/300/100PI-D grout station is combination of mixer, agitator and hydraulic piston grout pump in one plant. Gaode design the grout plant with trailer, more easy to move, The grout equipment mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.

Grout station Feature:

  1. It is combination of mixer, agitator and hydraulic grout pump in one base frame.
  2. Deutz diesel engine
  3. Yuken reversing valve for hydraulic system of grout pump
  4. Butterfly valve of mixer and agitator.
  5. Linked switch between mixer and agitator.
  6. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically.

Grout station applications:

  1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
  2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
  3. Construction - pavement under sealing, slab jacking and slab raising
  4. Marine - underwater foundations, piers, breakers, shoreline foundations
  5. Mining - tunnel lining, contact grouting, shaft waterproofing
  6. Utilities - encasements, waterproofing, slope line grouting
  7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment

Grouting station technical data:

Description

Data

Grout station type

GGP200/300/100PI-D

Mixer Volume

200L

Mixer production(w/c ratio=1)

4 m3/h

Circulation capacity

1100l/min

Suitable W/C Ratio

0.5 to 1

Mixer hydraulic motor

1450rpm

Agitator Volume

300L

Agitator hydraulic motor speed

36rpm

Water tank

60L

Grout Pump Type

GDH90

Grout pump output(Max.)

100L/min

Grout pump work pressure

10MPa

Deutz F3L912 diesel

34kw/48HP, 2200rpm

Overall dimension

4130x1850x2500mm

Grout station Weight

2795kg

 Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:

1. How about the flow and pressure of the pump you want, please?

2. How about the water and cement ratio, does any sand in?

3. About the power: electric (voltage and frequency) or diesel?

Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We have many standard models for your option, and we also could customize as per your requirement.If you have any questions, please contact us.

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO
Product Image

grout station
grout station

grout station
grout station

grout station
grout station

grout station
grout station

grout station
grout station

grout station
grout station

grout station
grout station

grout station
grout station

grout station grout station grout station
grout station grout station grout station
