China leading diesel cement grouting machine grout equipment manufacturers

Grout equipment description:

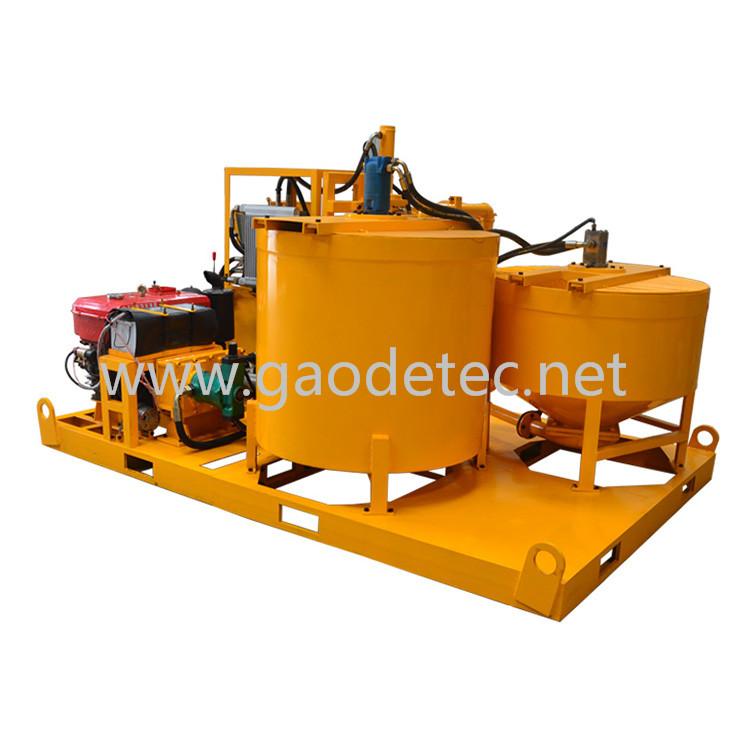

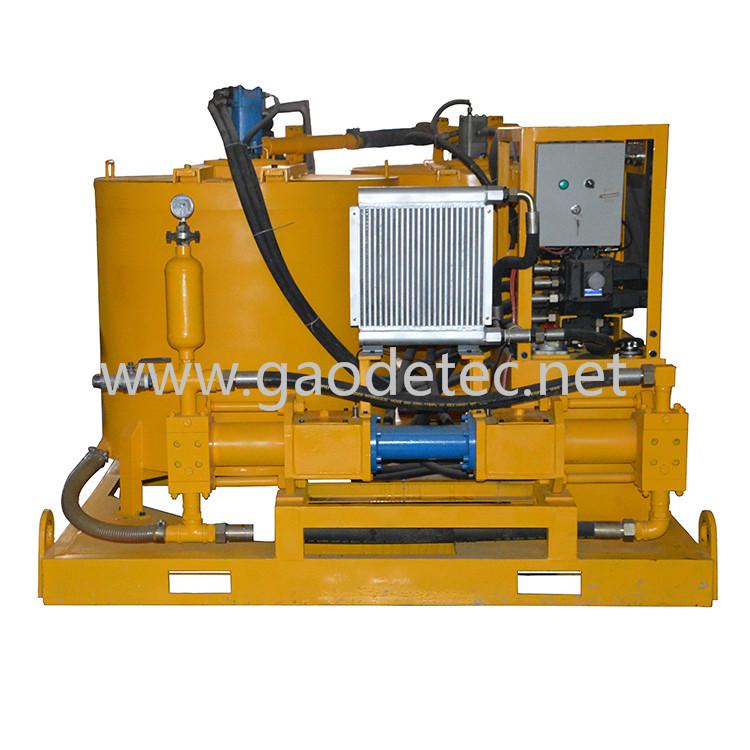

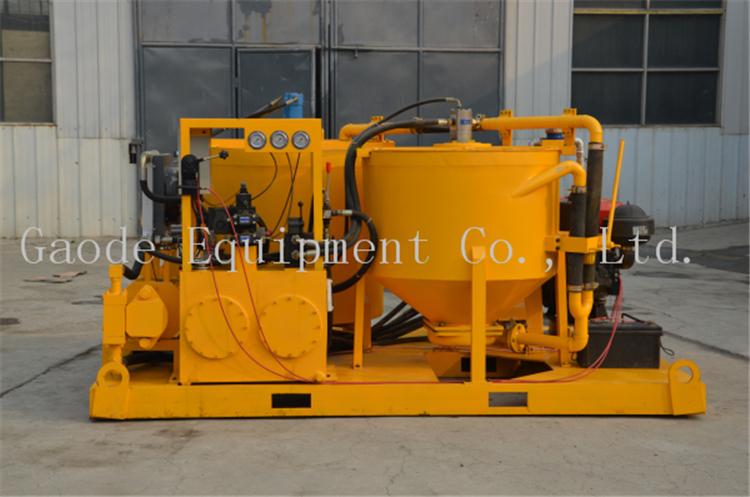

The GGP500/700/100PI-D grout equipment is combination of mixer, agitator and hydraulic two cylinders piston grout pump in one plant. Mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.

Grout Equipment Feature:

1. The Grout Equipment is combination of mixer, agitator and hydraulic two cylinders piston grout pump in one base frame, continuous grouting;

2.Pressure and output could be adjustable steplessly;

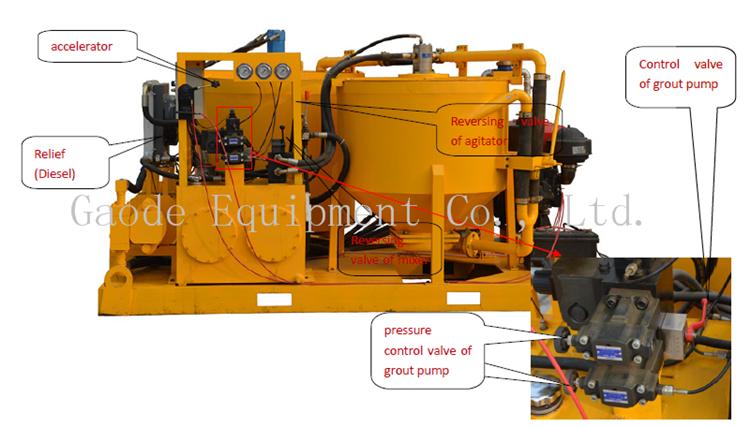

3.Yuken relief valve and directional valve for hydraulic system of grout pump;

4.Butterfly valve of mixer and agitator;

5. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;

6.With metering pump which could metering water;

7.Full hydraulic drive, diesel engine.

8. Operation and maintenance are simple;

9. With ISO, CE certificate.

Grout Equipment applications:

  1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
  2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
  3. Construction - pavement under sealing, slab jacking and slab raising
  4. Marine - underwater foundations, piers, breakers, shoreline foundations
  5. Mining - tunnel lining, contact grouting, shaft waterproofing
  6. Utilities - encasements, waterproofing, slope line grouting
  7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment

Grouting equipment technical data:

Description

Data

Grout equipment type

GGP500/700/100 PI-D

Mixer Volume

500L

  Mixer production(w/c ratio=1)

10 m3/h

Mixing time

3min per batch

Suitable W/C Ratio

0.5 to 1

Rated Rev.

1500rpm

Agitator Volume

700L

Agitator Speed

36rpm

Grout Pump Type

Hydraulic Two Cylinders Piston Pump

Grout pump output(Max.)

0-100L/min

Grout pump work pressure

0-50Bar

Diesel Engine Power

25kw, 36hp

Grout equuipment overall dimension

2900x1960x1550mm

Grout equipment Weight

1790kgs

Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:


1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?


Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We also could customize as per your requirementIf you have any questions, please contact us.



Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO
