Hot sale mortar mixer pump to Indonesia

mortar grout pump
  • mortar grout pump
  • cement mixer pump
  • cement mixing plant
  • cement mixing plant
  • cement mixing plant
  • mortar mixer pump
  • mortar grout pump
  • mortar grout pump
  • mortar grout pump
  • mortar grout pump
  • mortar grout pump
  • cement mixer pump
Model No.︰GGP220/300/300
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 9500 / set
Minimum Order︰1 set
Share on:

 Total 73 Related Items
Prev6162636465Next

Product Description

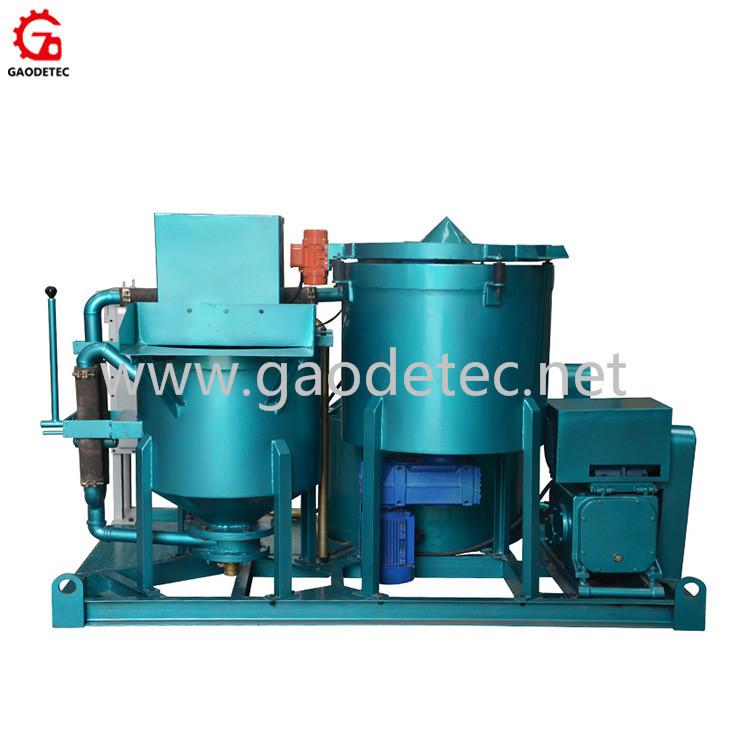

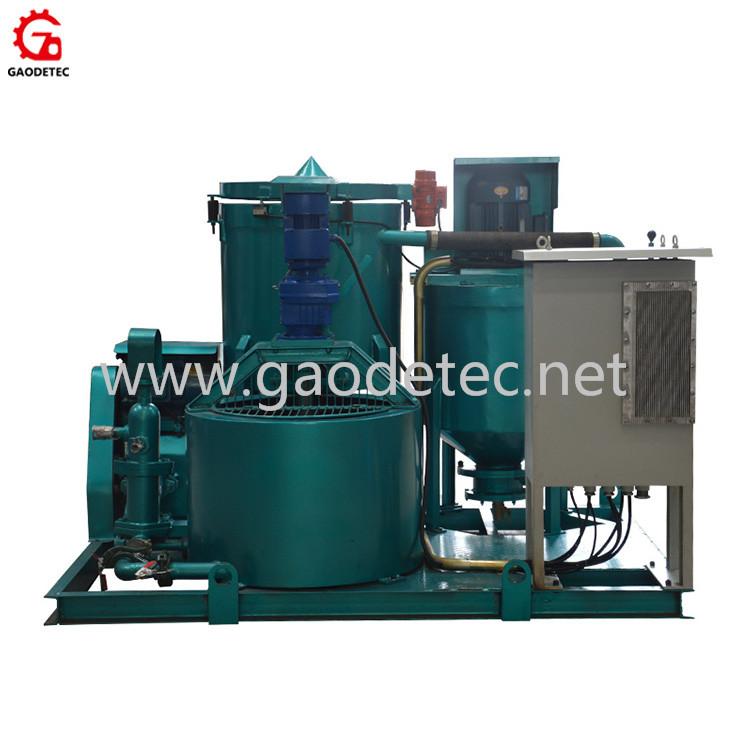

Hot sale mortar mixer pump to Indonesia

mortar mixer pump description:

GGP220/300/300PI-E mortar mixer pump is designed based on high speed vortex mixer and mortar mixer. It achieves continuous and high speed mortar mixing and grouting. It is mainly used in municipal, highway, railway, hydropower, construction, mining and other construction site for mortar grout. This grout station is driven by electric motor, mechanical plunger type injection pump. Compact size, easy to operate and also takes small place. Grout pump adopts frequency control, so the flow is step-less adjustable.
It is suitable for making cement mixture and mortar cement mixture. Working principle is: Evenly mixed slurry convey to No. 1 agitator. Add sand to No. 1 agitator and mix. Evenly mixed mortar cement mixture flows into No. 2 agitator through discharge outlet. Grouting pump sucks mixture from No. 2 agitator and finish the grouting, gunite and backfilling etc. project. Grouting, while the next round of mixing can be carried out, thus the grout station achieves continuous work.

 mortar mixer pump feature:

1. Grouting pressure, output is stepless adjustable;

2. Simple structure, light weight, easy maintenance;

3. Continuous output with small pulse;

4. Less spare parts ensure low maintenance costs;

5. High speed vortex mixer ensures mix quickly and evenly;

6. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate;

7. The motor has an overload protection function;

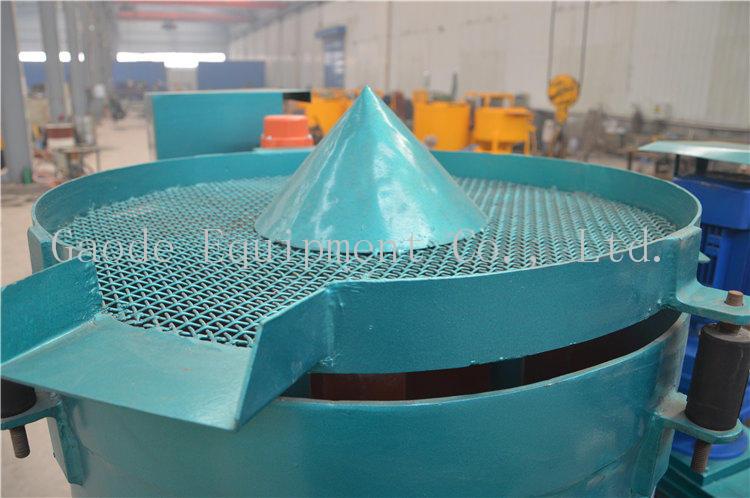

8. It has wrong operation safety protection device. When the vibrating screen mesh is taken up, the machine will stop;

9. Flameproof electric cabinet, protection grade IP56;

10. With CE, ISO certification.

mortar mixer pump application:

1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts;

2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting;

3. Construction - pavement under sealing, slab jacking and slab raising;

4. Marine - underwater foundations, piers, breakers, shoreline foundations;

5. Mining - tunnel lining, contact grouting, shaft waterproofing;

6. Utilities - encasements, waterproofing, slope line grouting;

7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment;

mortar mixer pump technical data:

Description

Data

mortar mixer pump type

GGP220/300/300PI-E

Mixer Volume

220L

Mixer production(w/c ratio=1)

4m3/h

Circulation capacity

1500l/min

Suitable W/C Ratio

0.5 to 1

Mixer electric motor power

5.5kw, 1450rpm

NO.1 Agitator Volume

300L

No.1 Agitator Speed

49rpm

Agitator electric motor power

3kw, 1450rpm

     NO.2 Agitator Volume                        300L
    No.2 Agitator Speed                        36rpm
 Agitator electric motor power                  3kw, 1450rpm

Grout Pump Type

piston grout pump

Grout pump output and pressure

50L/min

1.5Mpa

Grout pump electric motor power

4kw, 1450rpm

mortar mixer pump overall dimension

2350x1830x1600mm

mortar mixer pump weight

1275kg

 Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:

1. How about the flow and pressure of the pump you want, please?

2. How about the water and cement ratio, does any sand in?

3. About the power: electric (voltage and frequency) or diesel?

Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We have many standard models for your option, and we also could customize as per your requirement. If you have any questions, please contact us.

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO
